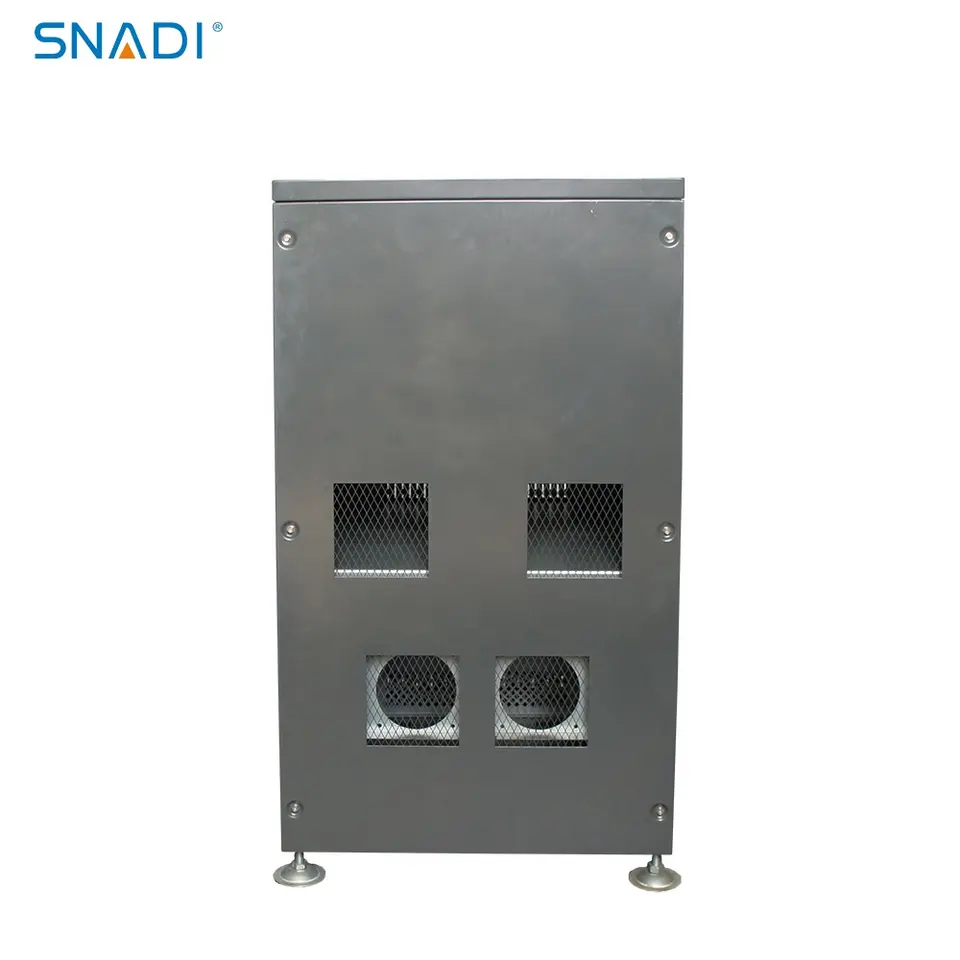

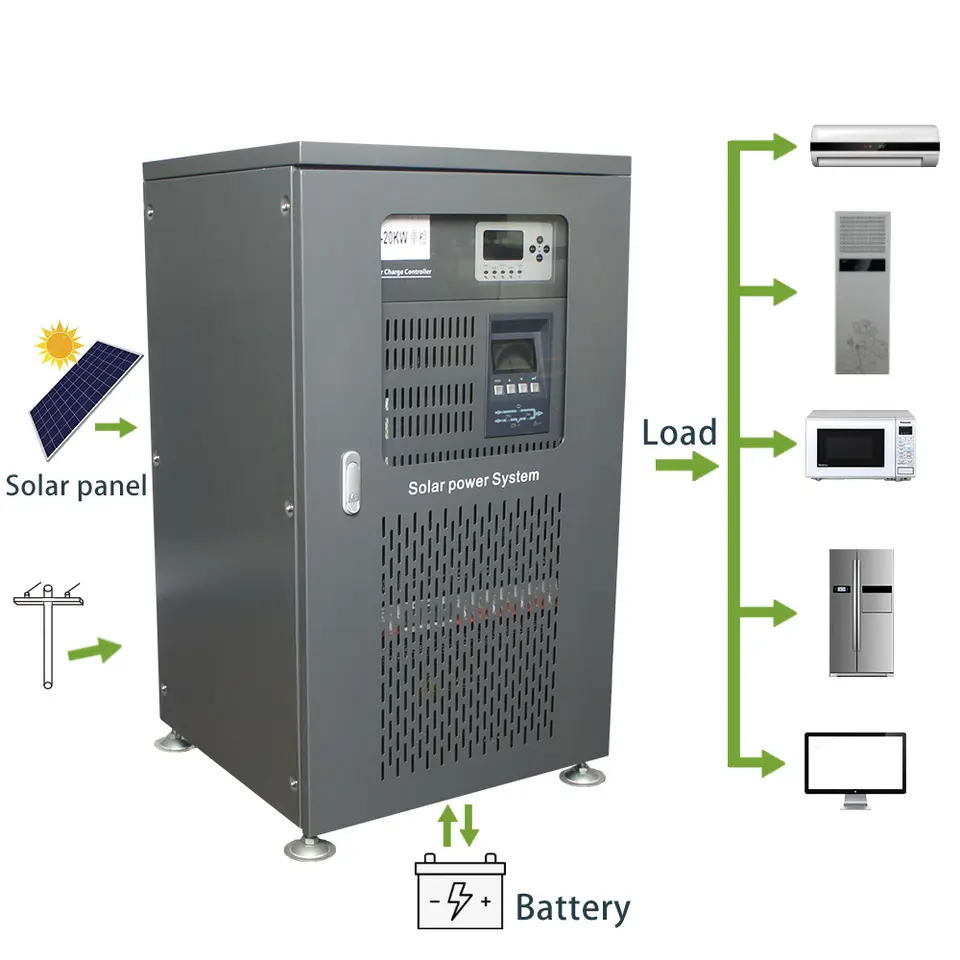

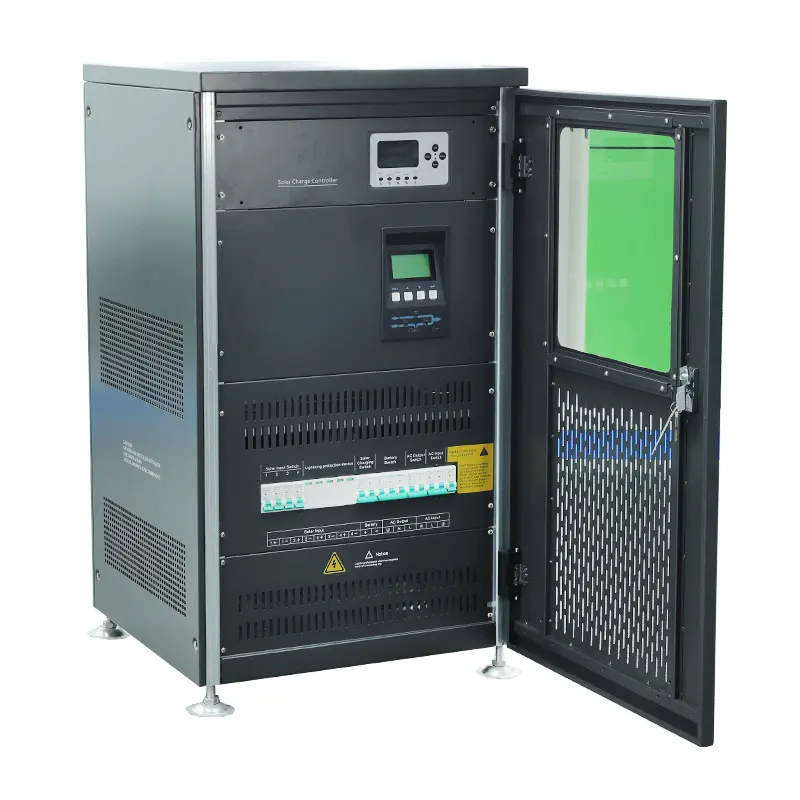

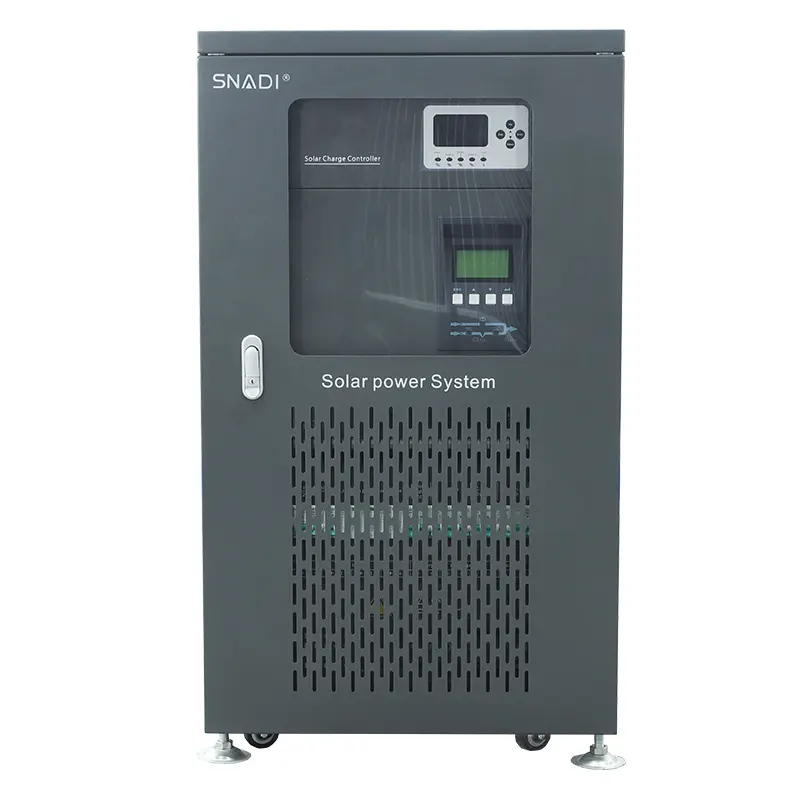

MPPT Single-phase Hybrid Solar Inverter

(0 reviews)

Get Price

(566) Views

(0) Contacts

1 - 9 units >= 10 units
$6,499.00 $6,199.00

Contact Company

Foshan SNAT Energy (SNADI Solar) Electrical Technology Co., Ltd

Guangdong, China

(1746) Views

(9) Contacts

Model： NKD-	NKD-8KW	NKD-10KW	NKD-15KW	NKD-20KW	NKD-30KW
Rated Power	8KW	10KW	15KW	20KW	30 KW
Product Size: LWH (mm)	5365601015				6355661295
Weight (Kg)	125	148	165	182	252

                                                            MODEL
                                                            10KW, 15KW, 20KW, 30KW

                                                            Defensive function
                                                            -10-40°C

                                                            Operating ambient temperature
                                                            Output short circuit, overvoltage, low voltage, low battery power protection

                                                            Environment relative humidity
                                                            20-90%(No Condensation)

                                                            Input voltage
                                                            220VAC±20%

                                                            Dynamic load voltage transient
                                                            < + 5% (0-100%)

                                                            Input Frequency
                                                            50Hz/60Hz±5%

                                                            Output Voltage
                                                            220VAC±5%

                                                            Output Frequency
                                                            50/60Hz±1%

                                                            Efficiency Inverter
                                                            ≥90% (100% resistive load)

                                                            Output wave Inverter.
                                                            pure sine wave

                                                            THD Inverter
                                                            <4% (full load)

                                                            Conversion time Inverter
                                                            <10ms

                                                            Overload Inverter
                                                            110-120%/30S; >150%/300ms;

                                                            Restart voltage after the low battery.
                                                            216VDC/243VDC/270VDC

                                                            Battery Voltage
                                                            192VDC/220VDC/240VDC

                                                            The voltage of Over-discharge protection.
                                                            168VDC/189VDC/210VDC

                                                            Controller Types
                                                            With maximum power point tracking (MPPT) function controller

                                                            PV module utilization
                                                            ≤99.97%

                                                            Machine Efficiency
                                                            ≥96.5%

                                                            Output Regulation Accuracy
                                                            ≤±1.5%

                                                            Temperature Coefficient
                                                            ±0.02%/°C

                                                            Temperature Compensation
                                                            14.2V- (Maximum Temperature-25C) *0.3

                                                            Vstar-pv
                                                            260VDC/270VDC/290VDC

                                                            Vovet-pv
                                                            425VDC

                                                            Floating Charge Voltage (Lead Acid Battery)
                                                            220.8VDC/248.4VDC/276VDC (Can be customized)

                                                            Average charging Voltage (Lead Acid Battery)
                                                            232VDC/261 VDC/290VDC (Can be customized)

                                                            Protective function
                                                            Input and output over-voltage protection, anti-reverse protection, short circuit protection, etc.

                                                            Operating Voltage Range
                                                            DC260V-DC420V

                                                            Charge mode
                                                            Three stages: constant current (quick charge), constant pressure, floating charge

                                                            Battery Type
                                                            Sealed lead-acid battery, colloidal lead-acid battery, open lead-acid battery (you can customize parameters to charge other types of batteries)

                                                            PV module input power
                                                            192VDC: Solar 1,10KW； Solar 2,10KW； 220VDC: Solar 1,11.5KW； Solar 2,11.5KW； 240VDC: Solar 1,12.5KW； Solar 2,12.5KW；

                                                            Vmax-pv
                                                            <420VDC

                                                            Vlow-py
                                                            240VDC/250VDC/270VDC

                                                            Rate Current
                                                            Solar1: 50A; Solar 2: 50A

                                                            Current Limiting Protection
                                                            Solar1: 52A: Solar 2: 52A

                                                            Rate Voltage
                                                            192VDC/220VDC/240VDC

Features

A power-on test function, which can avoid the faults because of hazards of the inverter.
A wide range of input frequencies, which realizes stable operation of fuel generators.
Frequency tracking, noise filtering, and low distortion in the inverter output

Key Features

High-reliability Frequency tracking, noise filtering, and low distortion in inverter output because of double-conversion design.
High adaptability A wide range of input frequency, which realizes stable operation of fuel generators.
High optimal performance of the battery An intelligent battery management technology, which guarantees a longer battery life and decreases the times of battery maintenance an advanced constant-voltage charge technology, which activates the battery to the most extent, saves the charge time and guarantees a longer battery life.
Overall and reliable protection.
