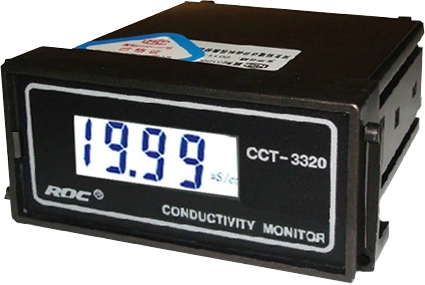

Conductivity Transmitting Controller CCT 3300 Series

(0 reviews)

Get Price

(24) Views

(0) Contacts

Contact Company

China Frotec Environmental Co.,Ltd

Guangzhou, China

(103) Views

(0) Contacts

Description
Product Reviews

Ordering Guide
Model
CCT-3301E
CCT-3300E
CCT-3310E
CCT-3320E
CCT-3320
3320T
Power Supply
DC12V±1V
DC24V±4V
AC 110±10%
AC 220±10%
AC 220±10%
Conductivity Cell Constant
0.10; 1.00; 5.00 (Cm)
Measurement Range
Temp.: 0.1℃
Conductivity: 0.5μS/Cm ～ 10.00mS/Cm
TDS: 0.25ppm ～ 5.00ppt
Temp.: 0～50℃ (Temp.Compensation, Component: NTC10K)
Resolution
Conductivity: 0.01μS /Cm; 0.01mS/Cm
TDS: 0.01ppm
Accuracy
Conductivity: 1.5% (FS)
Resistivity: 1.5% (FS)
TDS: 1.5% (FS)
Temp.: 1.5% (FS)
(4~20) MA
Channels: Single Channel, Isolated
Characters: Reversible, Fully Adjustable, Instrument / Transmitter Mode For Selection
Loop Resistance: 400Ω (Max), DC24V
Channels: ±0.1mA
Control Contacts
Channels: Single Channel
Relay Contacts: SPDT
Loap Capacity: AC 220V/3A Max; AC 110V/5A Max; DC 24V/3A Max
Work Environment
Temp: 0～50℃, Relative Humidity: ≤85%RH, (No Condensation)
Storage Environment
Temp: (-20～60) ℃, Relative Humidity: ≤85%RH, (No Condensation)
Dimensions
48mm × 96mm × 80 Mm (H×W×D)
Hole Size
44(H)Mm×92(W)Mm
Installation
Panel Mounted, Fast Installation

Product Reviews

You must Login/Register to can submit your review

Model	CCT-3301E	CCT-3300E	CCT-3310E	CCT-3320E	CCT-3320 3320T
Power Supply	DC12V±1V	DC24V±4V	AC 110±10%	AC 220±10%	AC 220±10%
Conductivity Cell Constant	0.10; 1.00; 5.00 (Cm)
Measurement Range	Temp.: 0.1℃
	Conductivity: 0.5μS/Cm ～ 10.00mS/Cm
	TDS: 0.25ppm ～ 5.00ppt
	Temp.: 0～50℃ (Temp.Compensation, Component: NTC10K)
Resolution	Conductivity: 0.01μS /Cm; 0.01mS/Cm
	TDS: 0.01ppm
Accuracy	Conductivity: 1.5% (FS)
	Resistivity: 1.5% (FS)
	TDS: 1.5% (FS)
	Temp.: 1.5% (FS)
(4~20) MA	Channels: Single Channel, Isolated
	Characters: Reversible, Fully Adjustable, Instrument / Transmitter Mode For Selection
	Loop Resistance: 400Ω (Max), DC24V
	Channels: ±0.1mA
Control Contacts	Channels: Single Channel
	Relay Contacts: SPDT
	Loap Capacity: AC 220V/3A Max; AC 110V/5A Max; DC 24V/3A Max
Work Environment	Temp: 0～50℃, Relative Humidity: ≤85%RH, (No Condensation)
Storage Environment	Temp: (-20～60) ℃, Relative Humidity: ≤85%RH, (No Condensation)
Dimensions	48mm × 96mm × 80 Mm (H×W×D)
Hole Size	44(H)Mm×92(W)Mm
Installation	Panel Mounted, Fast Installation
