Stainless Steel Corrugated Water Tank

(0 reviews)

Get Price

(21) Views

(0) Contacts

Contact Company

Denor Fluid Equipment (Wuhan) Co., Ltd.

Anhui, China

(79) Views

(0) Contacts

The corrugated design vertical compressive performance is strong and there is no internal tension. The type plate specifications size allows the same size tank to use less modulus, reduce the number of welds, lower the risk of leakage, and have an overall more beautiful appearance. Stainless steel corrugated non-tensile water tanks are made of patented corrugated plate, which is created through tungsten argon arc welding. Whether producing a lined water tank or a finished water tank, stainless steel corrugated plate performs well.

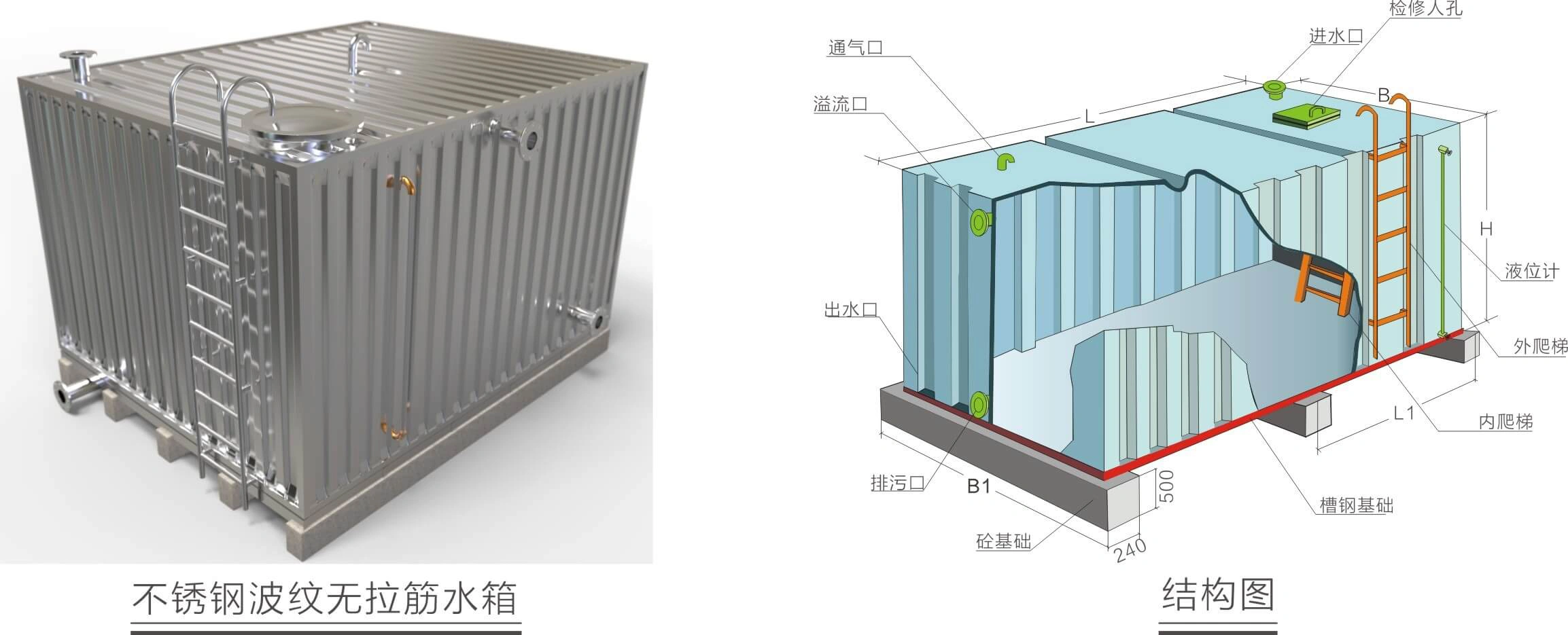

Schematic diagram of Stainless Steel Corrugated Water Tank:
1. The actual size of the water tank can be chosen based on the site's installation combination, site space, and user requirements.
2. For ease of installation and maintenance, the surrounding area and water tank equipment should be kept above 500mm.
3. The user's water inlet pressure should be measured within the range of 0.1 and 0.6 MPa.
4. The water tank's concrete base should be level, with a horizontal inaccuracy of no more than ±3 mm, and positioned between 300 and 500 mm.

Characteristics of Stainless Steel Corrugated Water Tank:
1. The patent corrugated plate is used; it can be used in any combination of heights; the side plate is molded overall; there is no "cross" word cross weld; the same size tank uses less modulus; the weld is reduced to lower the danger of leakage; and the overall appearance is lovely.
2. The tank's overall corrugated design makes for stronger vertical pressure and makes deformation difficult to develop.
3. The artificial cleaning water tank is convenient as it is made entirely of a frame structure, which increases pressure strength and eliminates internal stress.
4. The geometric module does not determine the size of the box; it can be formed into any size water tank to suit the needs of the user.
5. Using premium food-grade stainless steel SUS304, SUS444, and SUS316L materials that are safe and health-conscious; water tanks' health indicators comply with industry and national regulations after a health examination and quarantine.
6. A wide range of sectors, including boiler systems, food, chemicals, fire, medical, and construction, employ the items.
