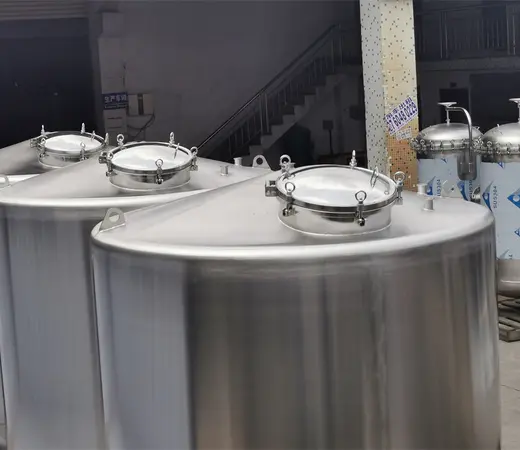

Customized 304 Double Layer Stainless Steel Water Tank

(0 reviews)

(124) Views

(0) Contacts

Stainless steel storage mixing tank the storage tank is a fully enclosed structure (can be heated and cooled according to the process requirements). It has the advantages of hygienic storage, convenient cleaning, and reasonable structure. It is suitable for various industries such as food (dairy) products, beverages, and pharmaceuticals. Liquid storage or intermediate buffering.

Contact Company

Guangdong Stark Water Treatment Technology Co., Ltd.

Dongguan, China

(893) Views

(18) Contacts

Classification of stainless-steel mixing tanks
1 Classification by form: can be divided into vertical stainless-steel tanks, and horizontal stainless-steel tanks.
2 Classification by use: can be divided into brewing stainless steel tanks, food stainless steel tanks, pharmaceutical stainless-steel tanks, dairy stainless-steel tanks, chemical stainless-steel tanks, petroleum stainless steel tanks, building materials stainless steel tanks, electric power stainless steel tanks, metallurgical stainless steel tanks Can.
3 Classification according to sanitary standards: sanitary stainless-steel tanks, ordinary stainless-steel tanks.
4 Classification according to pressure requirements: stainless steel pressure vessels, non-stainless steel pressure vessels.

                                                            Volume
                                                            1000L~ 100000L (series specifications), different specifications and models of storage tanks can be made according to customer needs;

                                                            Tank material
                                                            SUS304, SUS316L, Mo2T, etc.

                                                            Tank body
                                                            the inner surface is mirror polished (roughness Ra <0.4m);

                                                            Head form
                                                            elliptical head, dish-shaped head or conical head, the inner surface is mirror polished (roughness Ra<0.4um);

                                                            External surface treatment
                                                            mirror polishing or 2B primary color matt or sandblasting;

                                                            The form of liquid level gauge
                                                            glass tube liquid level gauge, flat type liquid level gauge, static pressure sensor type liquid level gauge, ultrasonic liquid level gauge;

                                                            Leg form
                                                            triangular pyramid type or round tube type

                                                            Equipment configuration
                                                            quick opening manhole, air respirator, CIP cleaner, material liquid inlet and outlet, spare port, etc.

Features of stainless-steel storage tanks
1. The stainless-steel tank has strong corrosion resistance; it is not corroded by the external air and residual chlorine in the water. Each spherical tank has undergone a strong pressure test and inspection before leaving the factory, and its service life can reach more than 100 years under normal pressure.
2. The stainless-steel tank has good sealing performance; the sealed design eliminates the intrusion of harmful substances and mosquitoes in the airborne dust into the tank, ensuring that the water quality is free from external pollution and the breeding of red insects.
3. The scientific water flow design prevents the sediment at the bottom of the tank from turning up due to the water flow, ensuring the natural stratification of domestic water and firefighting water, and the turbidity of the domestic water coming out of the tank is reduced by 48.5%; however, the water pressure is significantly increased. It is beneficial to improve the performance of domestic water and fire-fighting water facilities.
4. The stainless-steel tank does not need to be cleaned frequently; the sediment in the water can be discharged only by regularly opening the drain valve at the bottom of the tank. Simple equipment can be used to remove scale once every 3 years, which greatly reduces cleaning costs and completely avoids human bacterial and virus contamination.
