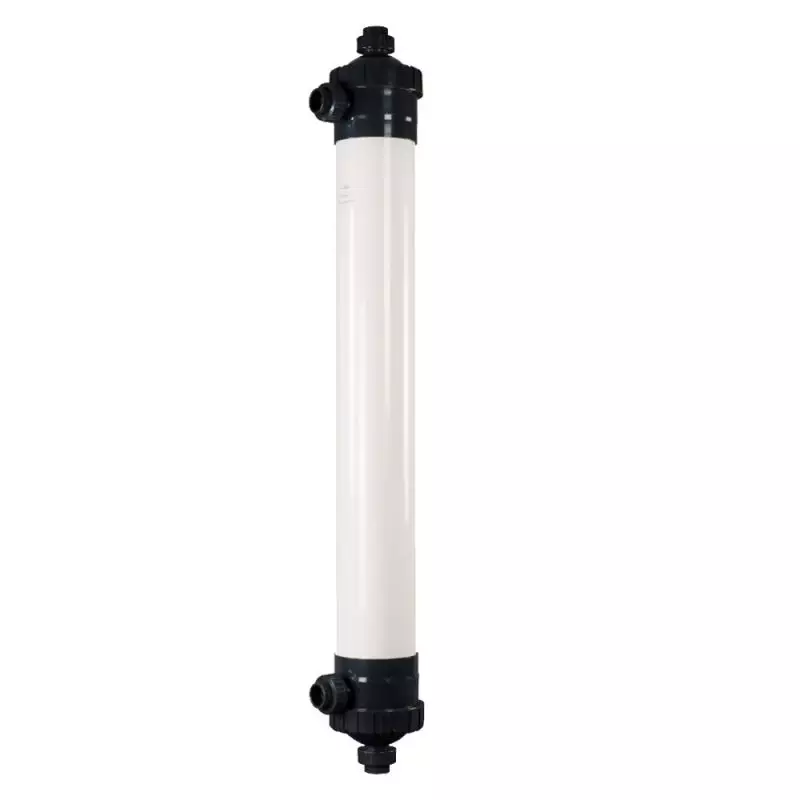

Hollow Fiber Modules Microza UNA-620A Replacement X-UF0685-50

(0 reviews)

Get Price

(14) Views

(0) Contacts

Contact Company

X Membrane

Jiangsu, China

(66) Views

(0) Contacts

                                                            Membrane Area
                                                            50 m²/ 538 ft²

                                                            Module Length
                                                            2160 mm/85 in

                                                            Module Diameter
                                                            165 mm/6.5 in

                                                            Maximum Operating Temperature
                                                            40°℃/104°F

                                                            Maximum Transmembrane Pressure
                                                            3 bar / 45 psi

                                                            Maximum Inlet Pressure
                                                            3 bar / 45 psi

                                                            Preservative
                                                            40% calcium chloride

                                                            pH Range
                                                            1-10

                                                            Membrane
                                                            PVDF

                                                            Material
                                                            Silicone

                                                            Gaskets
                                                            Silicone

                                                            Module Part Number
                                                            X-UF0685-50

                                                            Length (L1) mm/in
                                                            2364/93

                                                            Diameter(D₂) mm/in
                                                            221/8.7

                                                            Length (L2) mm/in
                                                            272/10.7

                                                            Diameter(D1) mm/in
                                                            168/6.5

                                                            Item
                                                            Material

                                                            1 Adapter Feed Connection
                                                            304SS

                                                            2 Adapter Pemeate Connection
                                                            PVC

                                                            3 Adapter Reject Connecation
                                                            PVC

                                                            4 Cap Nut Feed& Permeate Connections
                                                            AS(20%)

                                                            5 Nut Reject Connecation
                                                            PVC

                                                            6 O-ring for Feed& Permeate Adapter
                                                            Silicone

                                                            7 Gasket Reject Connecation
                                                            Silicone

Applications of Hollow Fiber Modules
The purpose of X UF module systems is to maximize RO membrane performance and prolong membrane life.

Benefits of Hollow Fiber Modules
With a 0.1 µm membrane rating, the hollow fiber architecture effectively removes particles, microorganisms, and colloidal silica while also reducing turbidity.
PVDF membrane resistant to substances that cause oxidation.
2. Filtration through the fiber from the outside to the inside: - Large surface area per module for high levels of contamination tolerance and excellent throughput that results in compact systems. foulant removal using a special, recurring air-scouring technique in conjunction with permeate back flushing. Requires at least 400 µm self-cleaning strainers for prefiltration (to remove tramp solids).
3. Low operating costs - The interval between RO membrane cleanings is significantly increased by offering excellent RO prefiltration. As a result, downtime and chemical/disposal expenses are decreased. High water recovery rates, usually between 95% and 98%, reduce the cost per unit of water generated.
