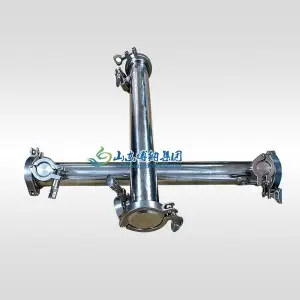

Hollow Fiber Membrane Elements

(0 reviews)

Get Price

(453) Views

(0) Contacts

1 - 5 pieces >= 6 pieces
$300.00 $200.00

Contact Company

Shandong Bona Biological Technology Group Co., Ltd.

Shandong, China

(1491) Views

(1) Contacts

A type of asymmetric membrane having self-supporting properties, the hollow fiber membrane is fashioned like a fiber. Micropores that are embedded in the membrane tube wall can capture molecules of various molecular weights, and the MWCO can range from thousands to hundreds of thousands. In order to create external pressure type and internal pressure type membranes, the raw water must flow under pressure either outside or inside the hollow fiber membrane.

                                                            Membrane Type
                                                            US20K	US1200HI-100

                                                            Material
                                                            PVDF / PES

                                                            Filtration Area
                                                            0.4m2	6m2

                                                            Fiber OD/ID Size
                                                            1.75 / 1.15mm

                                                            MWCO
                                                            2KD,3KD, 5KD, 10KD, 20KD, 50KD, 100KD, 200KD

                                                            Filtration Mode
                                                            Internal pressure type

                                                            Productivity
                                                            40-55	240-330

                                                            Feed flow
                                                            300 L/h	2000-4000 L/h

                                                            Ph Range
                                                            3.0-12.0

                                                            Maximum feed pressure
                                                            0.3MPa

                                                            Temperature range
                                                            10—35℃

                                                            Maximum TMP
                                                            0.1MPa

                                                            Feed flow
                                                            500 L/h	2000-4000 L/h

                                                            Ph Range
                                                            2.0-13.0

                                                            Maximum feed pressure
                                                            0.1MPa

                                                            Temperature range
                                                            25—35℃

                                                            Maximum TMP
                                                            0.1MPa

                                                            Shell Material
                                                            Plexiglass & ABS	SUS316L

                                                            Fiber Sealing Material
                                                            Epoxy resin

                                                            Connector size
                                                            Φ12mm hose connector	Chunk

                                                            Module size
                                                            φ50 x 300mm	Φ106 x 1200mm

Applications of Hollow Fiber Membrane Elements

Hollow fiber ultrafiltration membrane modules and devices have three potential industrial applications: concentration, small-molecule solute separation, and macromolecule solvent classification. It is frequently used in the treatment of water to get rid of things like heat sources, suspended particles, microbes, macromolecular organics, bacteria, and viruses. It is also extensively used in food processing, chemical separation, medicine and healthcare, as well as the filtration and purification of wine, vinegar, and other alcoholic beverages.

The characteristics of Hollow Fiber Membrane Elements

Strong resistance to pressure.
The hollow fiber membrane is self-supporting.
Any size and form are possible for the membrane module.
The module has a high filling density of hollow fiber membranes, a high membrane area per unit area, and a high flux.
