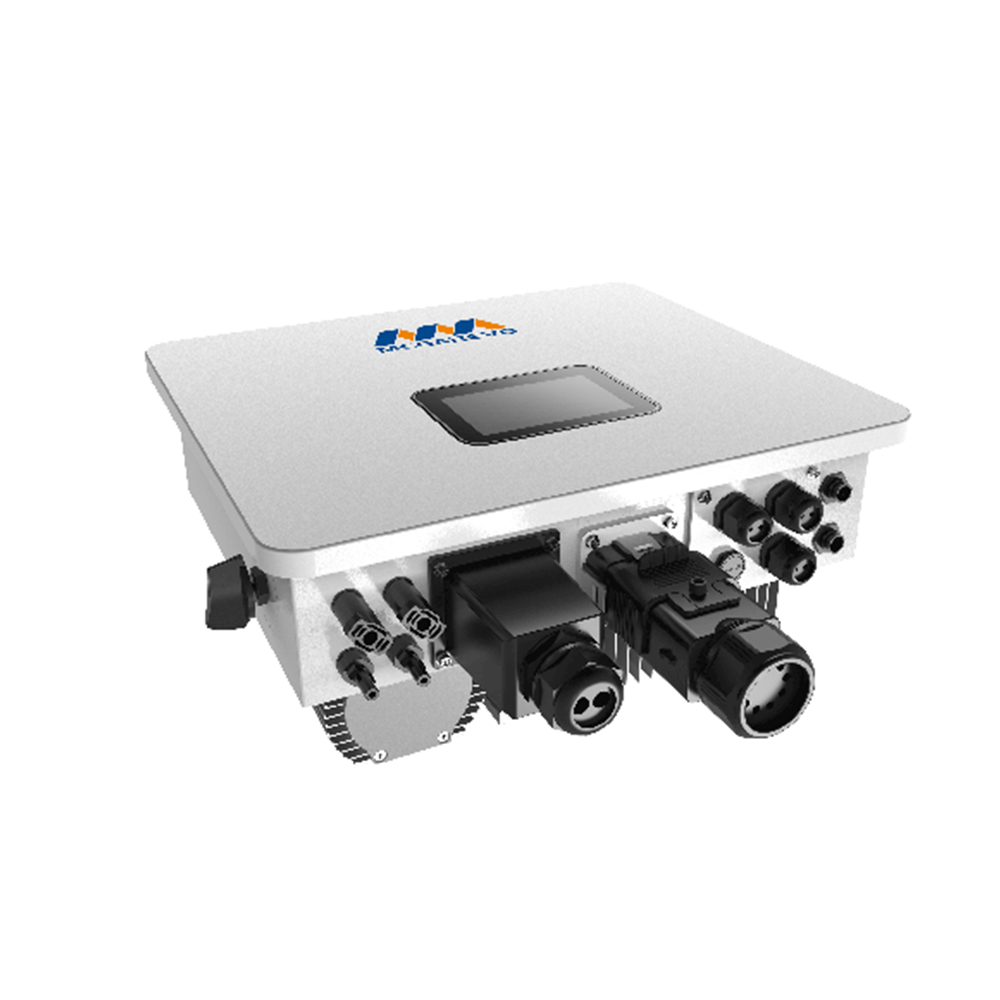

Megarevo Hybrid Three-Phase Inverter
(0 reviews)
Get Price
(328) Views
(0) Contacts


Contact Company





Nuuko Solar GmbH
Baden-Wurttemberg, Germany
(1077) Views
(0) Contacts

Model
R6KH3
R8KH3
R10KH3
R12KH3
R15KH3
DC input
Max. PV input power (kW)
9
12
15
18
22.5
MPPT voltage range at full power (V)
250~850
330~850
430~850
510~850
620~850
Max. short-circuit current (A)
16/16
16/16
16/16
16/16
25/25
Rated output power to the grid (kVA)
6
8
10
12
15
Max. apparent power into the grid (kVA)
6.6
8.8
11
13.2
16.5
Max. apparent power from the grid (kVA)
13.2
17.6
22
26.4
33
Max. apparent current from the grid (A)
19.1
25.5
31.8
38.2
47.6
Rated output current to the mains (A)
8.7
11.5
14.4
17.3
21.7
Max. output current to the mains (A)
9.5
12.7
15.9
19.1
23.8
battery
Max. charging/discharging power (kW)
6.6
8.8
11
13.2
16.5
Rated output power (kVA)
8
8
10
12
15
Max. apparent power (kVA)
8.8
8.8
11
13.2
16.5
Rated output current (A)
8.7
11.5
14.4
17.3
21.7
Max. output current (A)
9.5
12.7
15.9
19.1
23.8
Maximum efficiency
97.9%
97.9%
98.2%
98.2%
97.6%
efficiency in Europe
97.2%
97.2%
97.5%
97.5%
97.8%
MPPT efficiency
99.9%
Maximum battery charge/discharge efficiency
97.5%
97.5%
97.5%
97.6%
97.8%
EMC
IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN
61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011
Am Netz
Europe: EN 50549-1:2019/AC:2019, Poland: EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany: VDE-AR-N 4105:2018/DIN VDE V
0124-100(VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, UK: G98/G99/1-6:2022, Spain: UNE217001:2020
/UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary: EN50549-1:2019/RFG:2016/Hungary, Italy CEI
0-21

Model No. Megarevo Hybrid Three-phase Inverter
Brand Megarevo
Weight 30-34kg
Country of origin China
Safety standard IEC/EN62109-1:2010, IEC/EN62109-2:201
HMI LCD; APP
BMS MAY
EMS/meter RS485/RS485
Supported communication interface WLAN / GPRS
Protection against intrusion IP65
Operating temperature range (℃) -25~60
Relative humidity 0~100%
Operating height (m) 4,000 (>2,000 derating)
Dimensions W*H*D (mm) 596*566*220
Self-consumption (W) <20
Cooling Naturally
Noise emission (dB) ≤25
Starting voltage (V) 125
Max. input current per MPPT (A) 13/13
Max. PV voltage (V) 1,000
MPPT voltage range (V) 180~850
Number of MPPT racks 2
MPPT count/Max. number of input strings 1/1
Nominal input voltage (V) 700
Nominal mains voltage (V) 380/400,3W+N+PE
THDi <3%
Nominal grid frequency (Hz) 50/60
Battery voltage range (V) 125~600
Nominal output voltage (V) 400.3W+N+PE
Battery operating voltage range (V) 150~550
Max. charge/discharge current (A) 50
Nominal charge/discharge current (A) 40
Battery type lithium and lead-acid batteries
