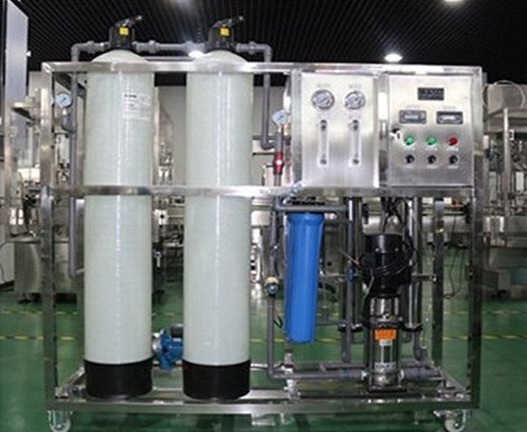

RO Water Treatment System PVC Barrel

(0 reviews)

(467) Views

(0) Contacts

The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.

Contact Company

Guangzhou Merry-Pack Company Limited

messages.no address inserted..

(1412) Views

(14) Contacts

The machine normally contains below parts:
1. Sand filter
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
2. Carbon filter
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
3. Resin softener
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
4. Micron filter/PP filter
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
5. RO system
The core equipment of water pump is high pressure pump and the RO membrane is CSM brand, The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

                                                            Capacity
                                                            500-10000L/Hr

                                                            Material
                                                            Stainless steel/PVC

                                                            Working Pressur
                                                            ≤0.6MPa

                                                            Control system
                                                            Manual/Automatic

                                                            Electric Power
                                                            220V /380V/ - 50Hz/60Hz
