Commercial Salt Water Treatment Purification Systems

(0 reviews)

4000 USD

(569) Views

(0) Contacts

$4,000.00 - $7,000.00/1 set/sets

Contact Company

Guangzhou Chunke Environmental Technology Co. Ltd

Anhui, China

(2175) Views

(27) Contacts

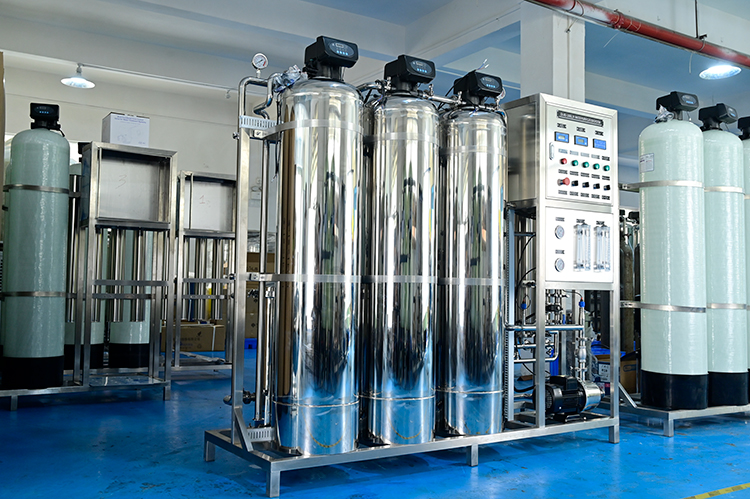

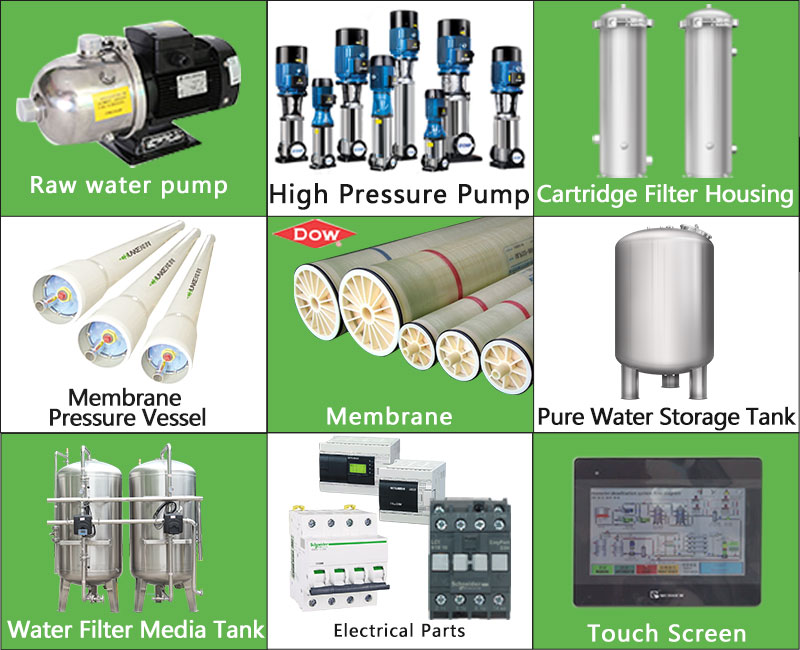

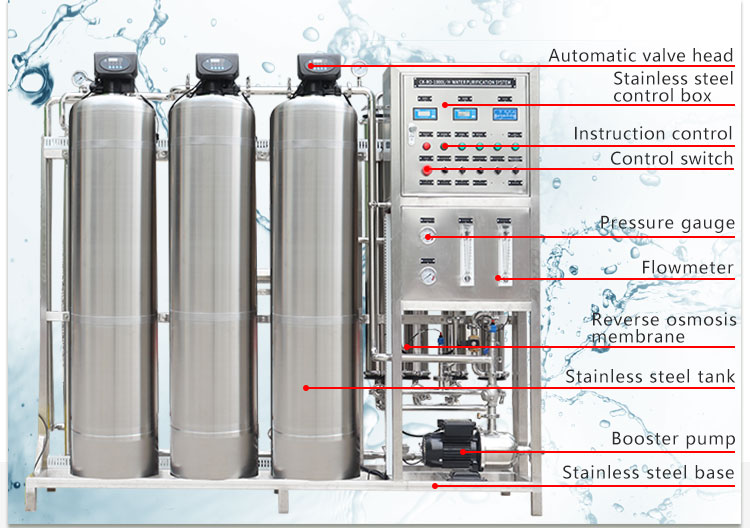

This system consists of a booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), SS304 cartridge filter housing, chemical dosing systems, high-pressure pump, FRP membrane pressure vessel, 4040 membranes, control panel, and touch screen control.
Material and parts brands can be changed as regards raw water quality and customer demand.
From the touch screen panel, you can see all system flow diagrams and automatic or manual control of the system. Membranes do not allow small particles, viruses, or bacteria to pass as a result your water becomes very clean and safe. Chunke as a water treatment manufacturer has water treatment solutions for saltwater problems. Commercial Salt Water Desalination Water Treatment System Capacity range between 2m3/hour to 48m3/day. If you need bigger than this capacity please see our Industrial Brackish Water treatment solutions.

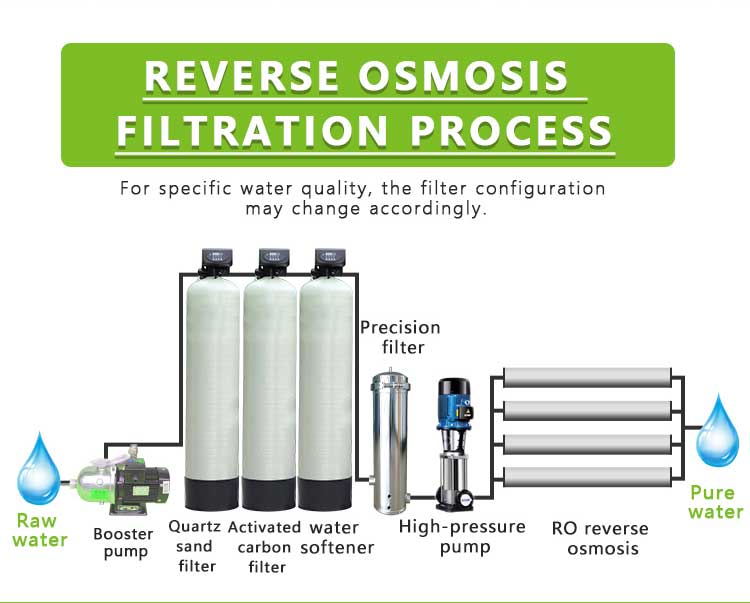

All Commercial Brackish Desalination Water Treatment Plants are started from a booster pump, which feeds raw water to pretreatment tanks. Depending on capacity pretreatment tank size and numbers can be changed. Because of High TDS (Total Dissolved Solid) we usually use FRP and Carbon Steel Tanks but we can check your raw water source analysis and we can suggest alternative materials. If salt content and TDS are high, because of the corrosion, we are using FRP or Carbon Steel material for pretreatment tanks. Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank, and Softener Tank which has ion exchange resin inside, they are very important for Brackish Water treatment solutions.
Pretreatment is used to remove a large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine, sediment, organic contaminants, and odors. In pretreatment, we can control the following manual or automatic for the Brackish Water desalination water treatment Plant.
After pretreatment water goes to the cartridge filter housing, which we call a security filter, most the applications we are using stainless steel 304 or 316 material, but if water is very salty like brackish or seawater, we can use carbon steel or FRP, or PVC Plastic Cartridge Filter Housing or Bag Filter Housing. There is a 1µm or 5 µm PP filter in the cartridge filter housing in the Brackish desalination water treatment RO Plant.
After the cartridge filter housing, water goes to the membrane pressure vessel with a High-Pressure Pump, you have a brand option for High-Pressure Pumps and it allows you to adjust your budget. The membrane housing shell inside depends on capacity we have 4040 Membranes. For most of our projects, we are using DOW Filmtec, Toray, Vontron, Hydranautics, and LG brands. These brands are mostly preferred by water treatment manufacturers.
Membranes, in Commercial Brackish Water Desalination Water Treatment Plants, are the most important part. They block if the size of the part is bigger than 0.001µm and the molecular weight is up to 150-250Dalton. It consists of impurities, particles, sugars, proteins, bacteria, dyes, and organic and inorganic solids.
Also, Commercial Brackish Water Treatment Plant systems can have chemical dosing at pretreatment or post-treatment, like anti-scaling (antiscalant), antifouling, pH adjustment, Sterilization & Disinfection chemicals.
Electrical Power of Commercial Salt Water Treatment Purification Systems
For commercial desalination, the water treatment plant needs 220-380V/50Hz/60Hz. For bigger capacity, because of the high-pressure pump, it needs 380V 50/60Hz. As regards your Brackish Water RO Plant machine design, we will check your electrical supply and decide to fix the power for you.
MODELS of Commercial RO Desalination Water Treatment System

Model Number	Permeate Flow Rate	Membranes
Model Number	Liter/Hour	Size	Quantity
CK-RO-100L	100L	4021	1-2
CK-RO-250L	250L	4040	1-2
CK-RO-500L	500L	4040	2-4
CK-RO-1000L	1000L	4040	4-6
CK-RO-2000L	2000L	4040	8-10

Before Buying Commercial Brackish Water Desalination Plant, you should know:
1. Pure Water Production Capacity (L/day, L/Hour, GPD).
2. Feed Water TDS and Raw Water Analysis Report (prevent fouling and scaling problems)
3. Iron and Manganese must be removed before raw water enters the membrane of the Commercial RO Desalination Water Treatment machine.
4. TSS (Total Suspended Solid) must remove before the commercial Brackish Water Treatment RO Plant‘s membrane.
5. SDI (Silt Density Index) must be less than 3
6. Must be sure your water source does not have oil and grease
7. Chlorine must be removed before industrial Commercial Salty Water desalination water treatment RO Plant
8. Available electrical power voltage and phase
9. Layout of place for commercial desalination water treatment system

                                                            Feed Water TDS
                                                            > 1000ppm

                                                            Max. Silica Tolerance
                                                            60ppm

                                                            Hardness
                                                            over 18ppm Needs Antiscalant Dosing

                                                            Feed Water Pressure
                                                            1.5 to 6 bar

                                                            Turbidity
                                                            Must Be Removed

                                                            Max. Iron Content
                                                            0.05ppm

                                                            Max. Feed Water Temp
                                                            42°C

                                                            pH Tolerance
                                                            3-11

                                                            Operate at Higher TDS Results
                                                            Lower Recovery

                                                            H2S
                                                            Must Be Removed

Commercial Salt Water Treatment Purification Systems are used to remove salt and purify water.

Standard Filters	Available Options
Programmable PLC Control	Automatic Flush
Motor Starter	Ozone Generator
Raw Water Feeding/Booster Pump	UV Sterilizer
Stainless Steel Cartridge Filter Housing	Chemical Dosing
FRP Membrane Housing	pH control monitor
Mitsibushi Processor Control	ORP Control monitor
Low-Pressure Switch	Remote Control
High-Pressure Switch	Pretreatment System
Liquid-filled pressure gauge	Post Deionization Unit
Stainless Steel 304 Frame	CIP Membrane cleaning system
Permeate Conductivity Monitor	Touch Screen Control
Raw Water Conductivity Monitor	Tank Level Switch
Membranes	Customer Logo
Control Valves
Stainless Steel/UPVC Piping
