Commercial Seawater Reverse Osmosis Desalination Systems

(0 reviews)

3950 USD

(538) Views

(0) Contacts

$3,950.00 - $19,500.00/ set |1 set/sets

Contact Company

Guangzhou Chunke Environmental Technology Co. Ltd

Anhui, China

(2175) Views

(27) Contacts

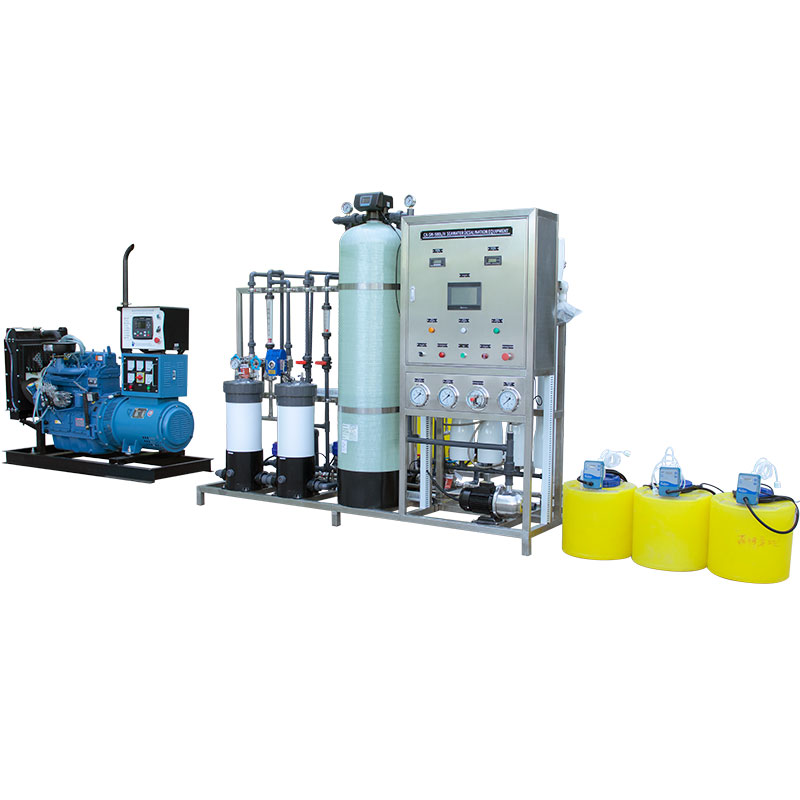

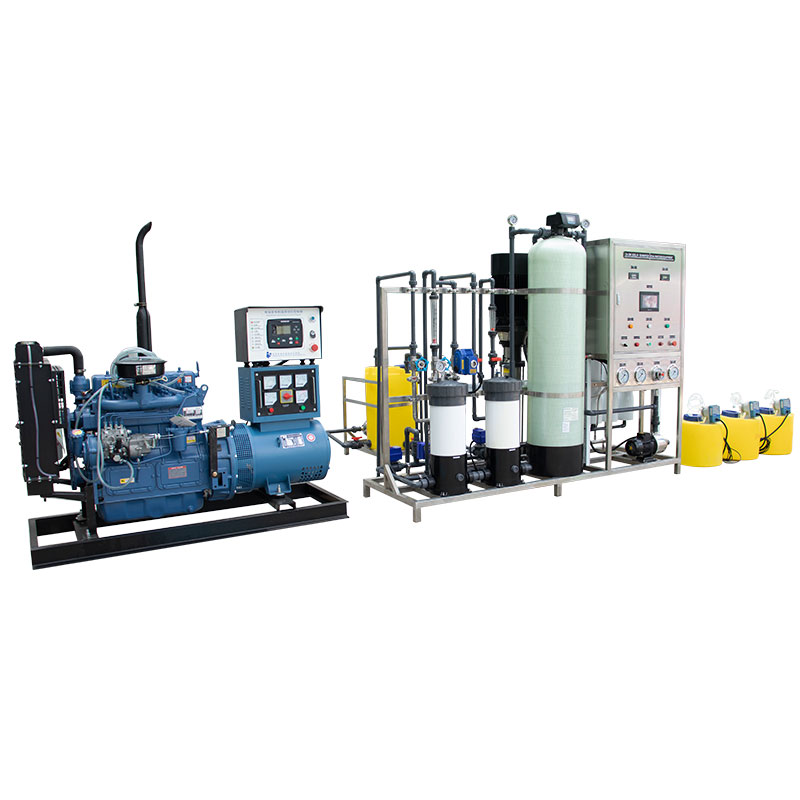

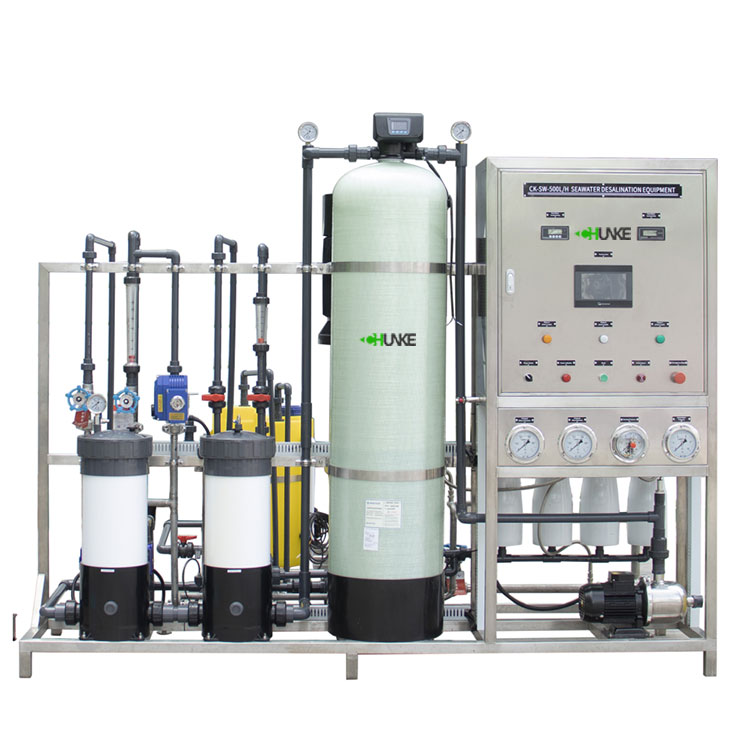

Commercial Seawater RO membrane filtration water treatment Plant is used to remove salt and purify water. This system consists of a booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), cartridge filter housing, chemical dosing systems, high-pressure pump, FRP membrane pressure vessel, 2540 or 4040 membranes, control panel, and touch screen control.
Material and parts brands can be changed as regards raw water quality and customer demand. From the touch screen panel, you can see all system flow diagrams and automatic or manual control of the system. Membranes do not allow small particles, viruses, or bacteria to pass as a result your water becomes very clean and safe.
Seawater commercial water treatment systems' Capacity range between 1.4m3/hour to 38m3/day. If you need bigger than this capacity please see our Industrial Seawater Desalination Systems.

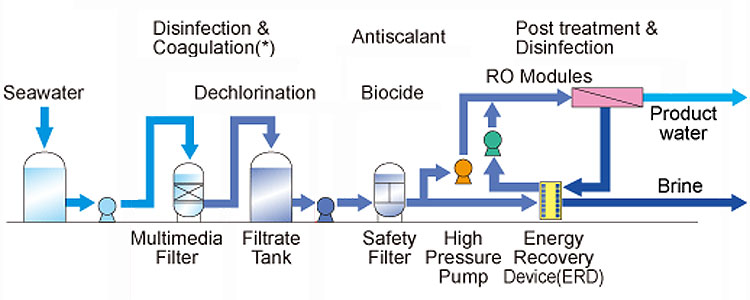

All RO Seawater membrane filtration water treatment plants are started from a booster pump, which feeds raw water to pretreatment tanks. Depending on capacity pretreatment tank size and numbers can be changed. Because of High TDS (total dissolved solid) and salt water’s corrosion, we are using FRP or Carbon Steel material for pretreatment tanks. Pretreatment consists of Sand Media Filter Tank, Activated Carbon Filter Media Tank, and Softener Tank which has ion exchange resin inside, they are very important for commercial RO Desalination Machine.
Pretreatment is used to remove a large number of suspended solids, iron, turbidity, unwanted color, unpleasant taste, chlorine, sediment, organic contaminants, and odors. In pretreatment, we can control the following manual or automatic for seawater commercial water treatment systems.
membrane filtration water treatment
After pretreatment water goes to the cartridge filter housing, we call it a security filter, In most applications, we are using FRP or PVC Plastic material for cartridge filter housing or Bag Filter Housing. There is a 1µm or 5 µm PP filter in the cartridge filter housing in Commercial Seawater Reverse Osmosis Desalination System.
After the cartridge filter housing, water goes to the membrane pressure vessel with a High-Pressure Pump, you have brand options for High-Pressure Pump (Grundfos, Danfoss, CNP, or Chunky) and it allows you to adjust your budget. The membrane housing shell inside depends on capacity we have 4040 or 8040 Membranes. For most of the projects we are using DOW Filmtec, Toray, Vontron, Hydranautics, and LG brand SW RO Membranes.
Membranes, in industrial Brackish Water Desalination Plants, are the most important part. They block if the size of the part is bigger than 0.001µm and the molecular weight is up to 150-250Dalton. It consists of impurities, particles, sugars, proteins, bacteria, dyes, and organic and inorganic solids.
Also, RO Seawater Desalination Plant can have chemical dosing at pretreatment or post-treatment, like anti scaling (antiscalant), antifouling, pH adjustment, Sterilization & Disinfection chemicals.
In Chunky when we check customer water analysis report, sometimes because of scaling and fouling problems, we can use CIP (Clean in Place) System, which washes the membrane in membrane housing and make the membrane life longer. So you can reduce your maintenance cost for commercial water treatment systems.
Electrical Power of Industrial RO Desalination Machine
For sweaters, a commercial water treatment system needs 220-380V/50Hz/60Hz. For bigger capacity, because of the high-pressure pump, it needs 380V/415V 50/60Hz. As regards your SWRO Desalination Machine design, we will check your electrical supply and decide to fix the power for you.
Membrane numbers and sizes for Commercial Sea Water Desalination Systems
Model Number
Permeate Flow Rate
Membranes
Liter/Hour
Size
Quantity
CK-RO-50L
50
2540
1

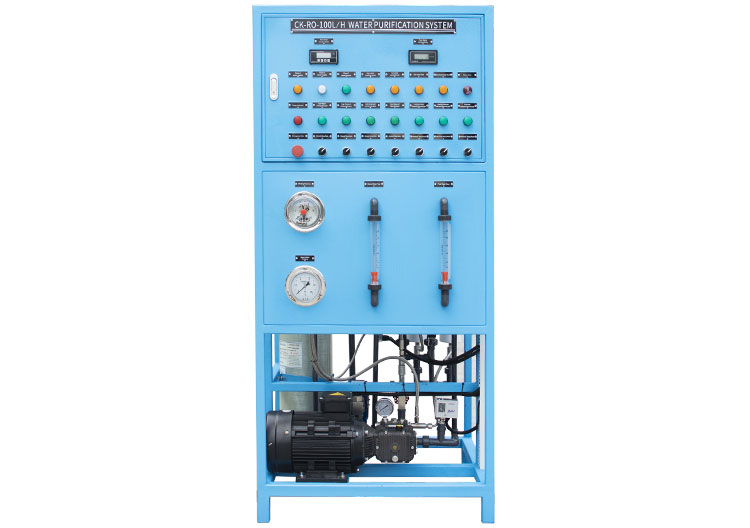

CK-RO-100L
100
2540
2
CK-RO-250L
250
4040
2-4
CK-RO-500L
500
4040
3-5
CK-RO-1000L
1000
4040
6-8
CK-RO-2000L
2000
4040
10-12
What is a desalination system?
A desalination system is a kind of membrane filtration water treatment. Some water source like seawater or underground water or some river has high-level salt inside. High-level salt water has over 10000ppm salt inside. Our commercial RO Seawater Desalination Plant removes this salt from raw water by RO (reverse osmosis) membrane system technology. This technology is called as membrane filtration water treatment process. Because SW z membranes' salt recovery rate is over 99%. So, you can get accessible, usable, or drinkable fresh water.
Especially, if you have a boiler and need very pure water, our marine boiler water treatment systems, remove all salt from seawater and you can use your boiler with high efficiency. Marine boiler water treatment systems reduce your chemical and energy cost. A chunky experienced engineering team can design a lot of marine boiler water treatment systems.
Chunky membrane filtration water treatment systems can be used in a wide range of water quality. Every water source needs different and special designs. Seawater is one of the most important water sources in the world. To use seawater in our process or drink we have to convert it to fresh water. Our reverse osmosis seawater commercial water treatment systems help to you for this purpose. Nowadays, a lot of business is near to seawater source, their boiler needs special marine boiler water treatment machine. To get more information about our marine boiler water treatment system, please contact us. Chunky gives a good solution for membrane filtration water treatment.

                                                            Programmable PLC Control
                                                            Automatic Flush

                                                            Turbidity
                                                            must be removed

                                                            Motor Starter
                                                            Ozone Generator

                                                            Raw Water Feeding/Booster Pump
                                                            UV Sterilizer

                                                            Feed Water Pressure
                                                            2.5 to 6 bar

                                                            Heavy Duty Cartridge Filter Housing
                                                            Chemical Dosing

                                                            FRP Membrane Housing
                                                            pH Control Monitor

                                                            Mitsubishi Processor Control
                                                            ORP Control Monitor

                                                            Low Pressure Switch
                                                            Remote Control

                                                            High Pressure Switch
                                                            Pretreatment System

                                                            Liquid Filled Pressure Gauge
                                                            Post Deionization Unit

                                                            Coated Carbon Steel Frame
                                                            CIP Membrane Cleaning System

                                                            Permeate Conductivity Monitor
                                                            Touch Screen Control

                                                            Raw Water Conductivity Monitor
                                                            Tank Level Switch

                                                            Seawater SWRO Membranes
                                                            Customer Logo

                                                            Control Valves
                                                            Special Seawater Filters

                                                            Piping
                                                            Stainless Steel / UPVC

                                                            Feed Water TDS
                                                            10,000 to 42,000ppm

                                                            Operating Pressure
                                                            48bar to 80bar

                                                            Customization Required
                                                            Over 50,000ppm

                                                            Dosing
                                                            Must Have Antiscalant Dosing

                                                            Max. Feed Water Temp
                                                            42°C

                                                            Operate
                                                            at Higher TDS Results Lower Recovery

                                                            H2S
                                                            Must Be Removed

                                                            Max. Iron Content
                                                            0.05ppm

                                                            pH Tolerance
                                                            3-11

Model Number	Permeate Flow Rate	Membranes
Model Number	Liter/Hour	Size	Quantity
CK-RO-50L	50	2540	1
CK-RO-100L	100	2540	2
CK-RO-250L	250	4040	2-4
CK-RO-500L	500	4040	3-5
CK-RO-1000L	1000	4040	6-8
CK-RO-2000L	2000	4040	10-12
