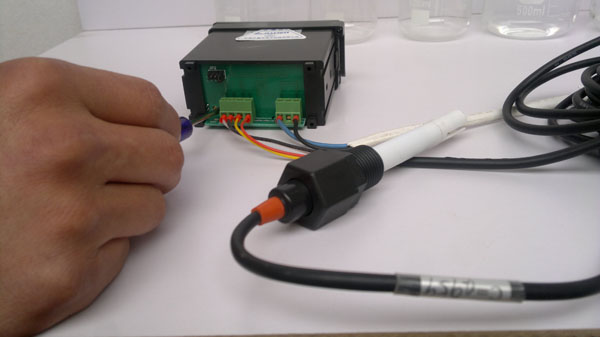

A panel-mount device for online industrial process conductivity monitoring is the Conductivity Meter CM-230. The operation component on the rear panel allows you to freely set and adjust the range switch over and constant check. The meter has temperature compensation that works automatically. The meter has precise measurement, steady operation, and requires no maintenance, so it It is a perfect auxiliary tool for many kinds of small, pure water devices.

                                                            Measurement range
                                                            0~20  0~200  0~2000μS/cm

                                                            Accuracy
                                                            1.5% (FS)

                                                            Stability
                                                            ±2 × 10-3 (FS) / 24h

                                                            Display
                                                            3.5-bit LCD

                                                            Hole dimensions for installation
                                                            45 × 92mm (height × width)

                                                            Auxiliary electrode
                                                            Plastic structure;  constant: 1.0cm-1

                                                            Medium temperature
                                                            0~50℃

                                                            Temperature compensation
                                                            Automatic compensation， with 25℃ as the reference temperature

                                                            Cable length
                                                            5m (or on agreement __m)

                                                            Output current
                                                            Non-isolated 4-20mA(Optional)

                                                            Control output
                                                            Hi-limit (NO,NC), double contact output (CM-330)

                                                            Contact capacity
                                                            7A/250V AC（resistivity load）

                                                            Power supply
                                                            AC  220V ±10%  50Hz/60Hz or AC110 ±10%  50Hz/60Hz or agreement

                                                            Environment conditions
                                                            Temperature: 0~50℃ Humidity: ≤85%RH

                                                            Dimensions
                                                            48 × 96 × 100mm (height × width × depth)
