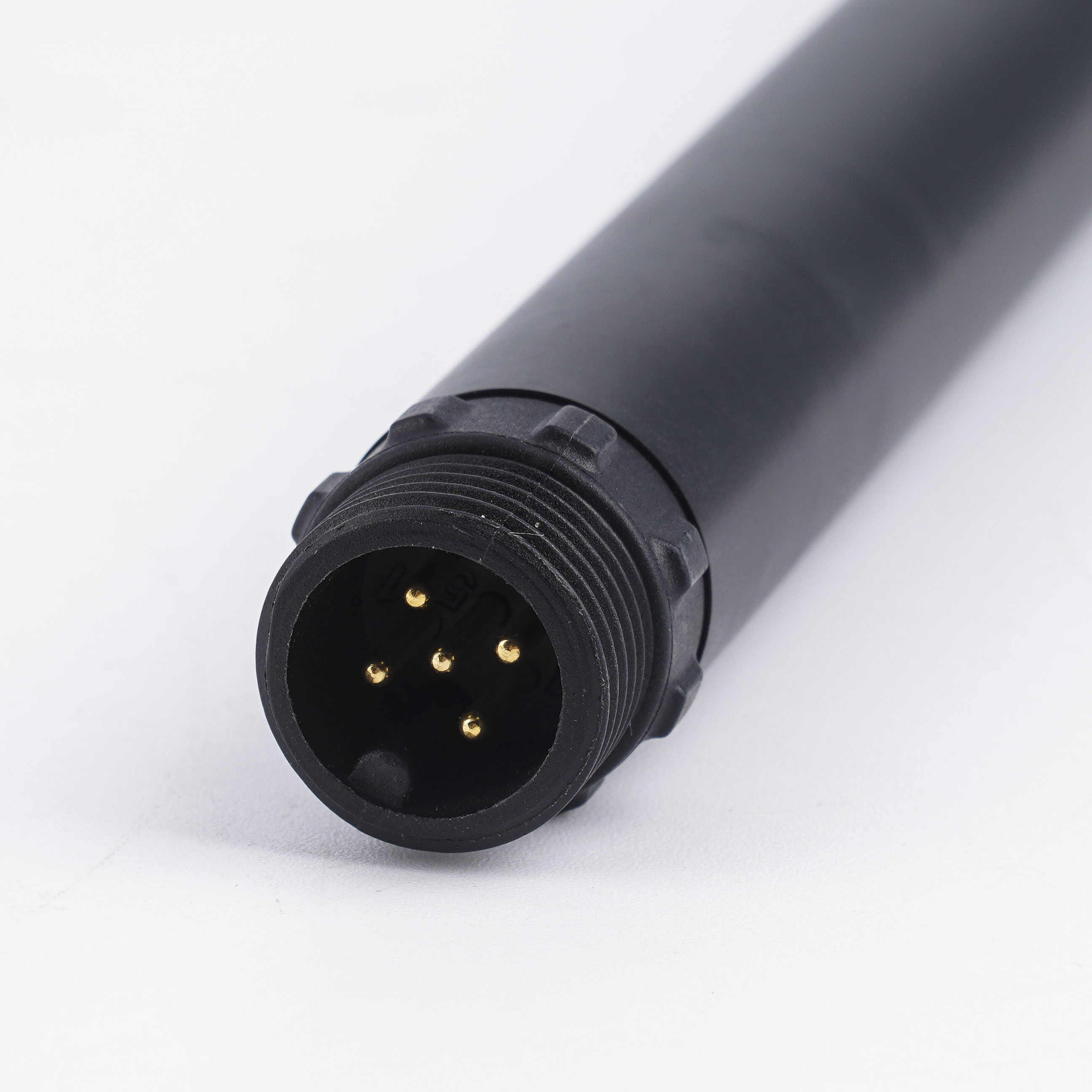

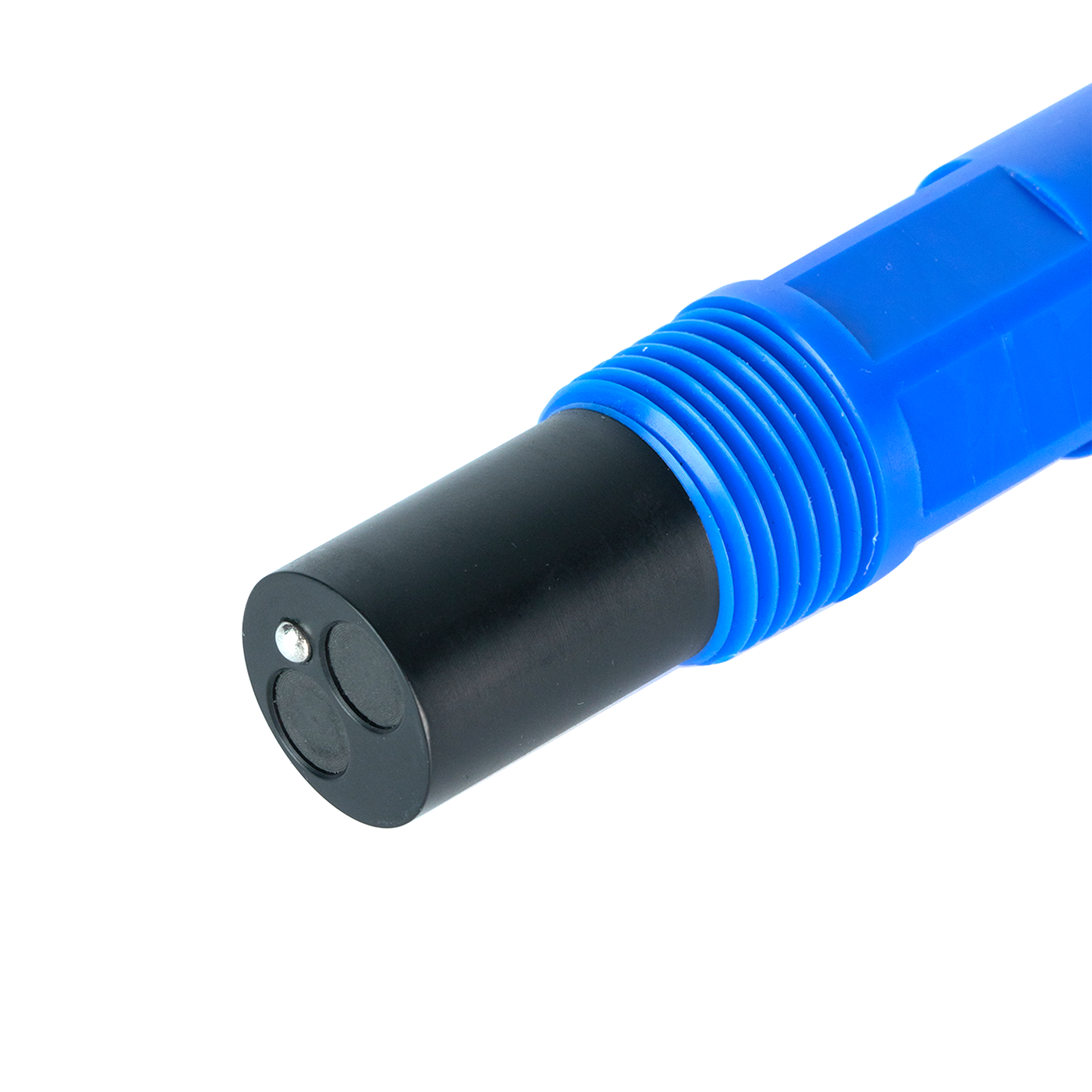

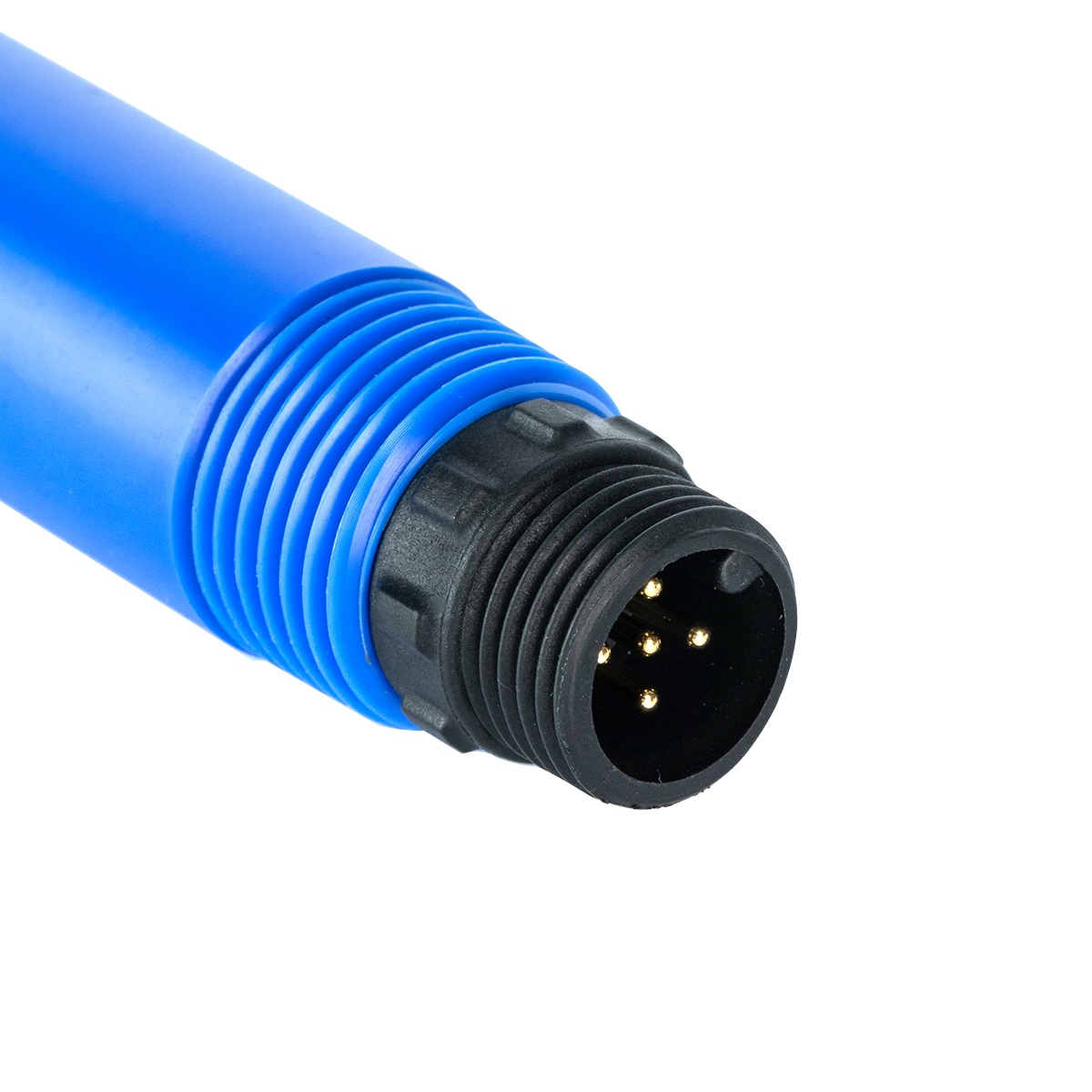

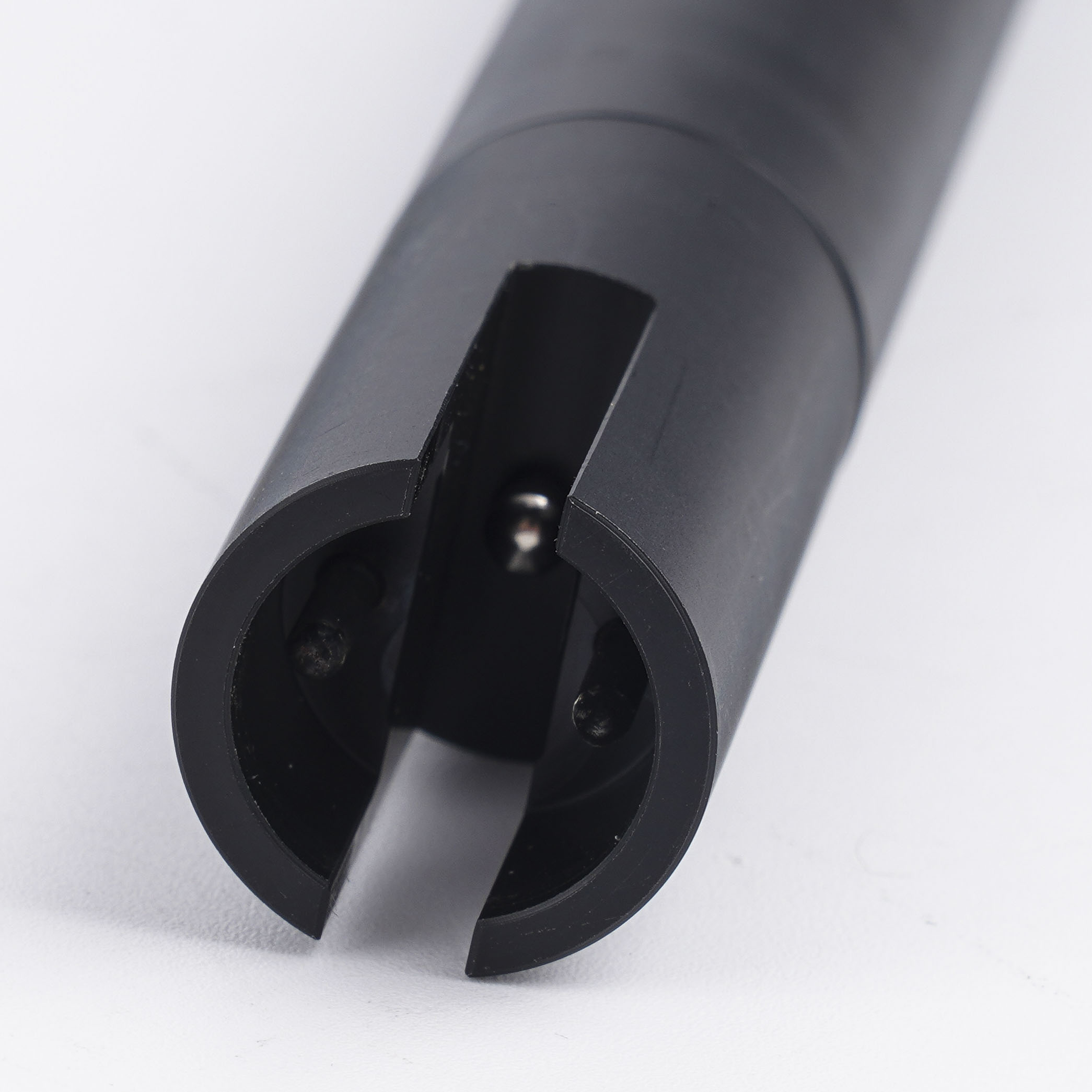

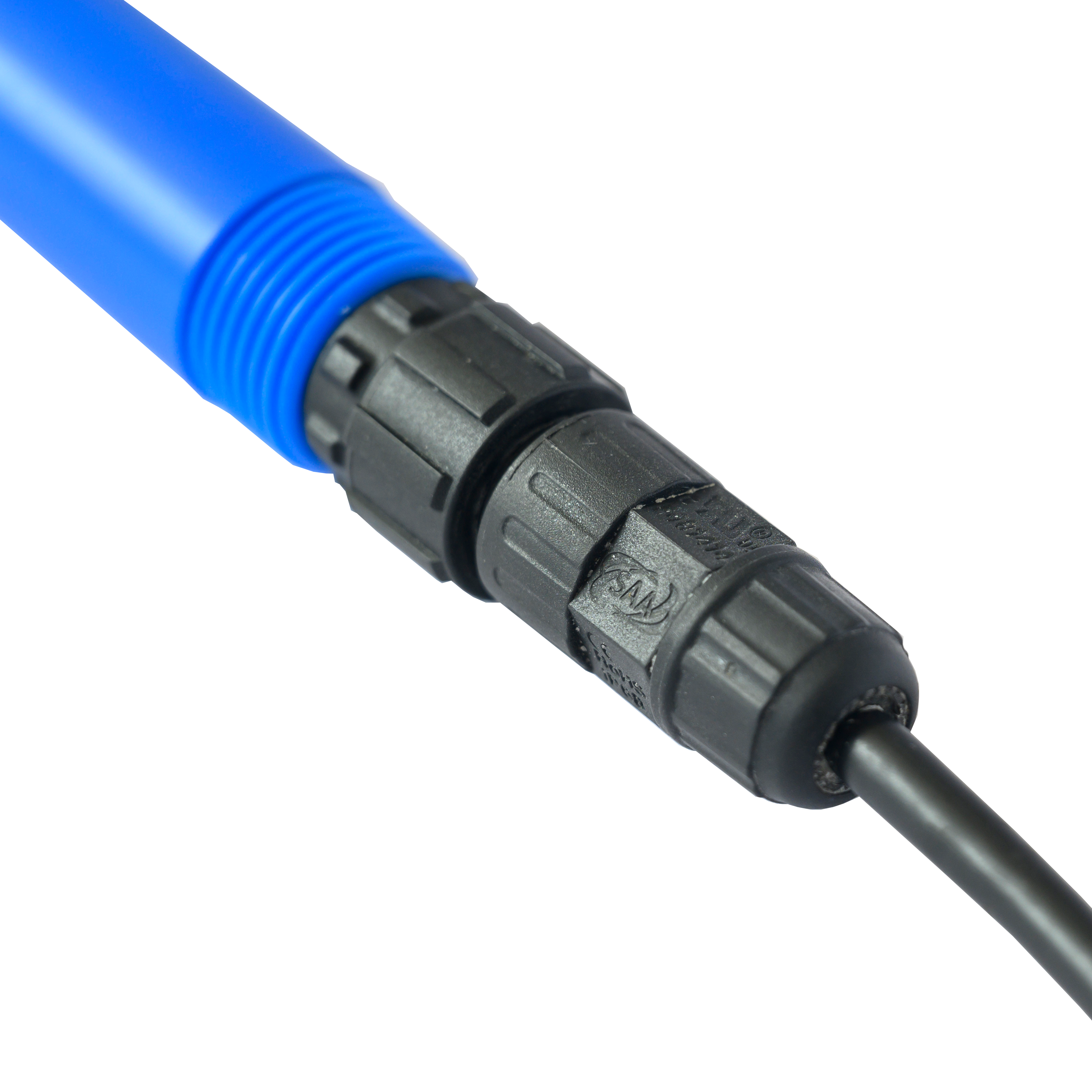

Online Conductivity Sensor

(0 reviews)

Get Price

(196) Views

(0) Contacts

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(833) Views

(15) Contacts

Signal output: RS-485 (Modbus / RTU protocol).

Easy connection to a third-party equipment PLC, DCS, industrial control computer, universal controller, paperless recording instruments, and a touch panel.

Easy installation: Submerged installation.

IP68 protection class.

                                                            Model
                                                            iEC-306

                                                            Protection class
                                                            IP68

                                                            Measuring range
                                                            0～5000μS/cm

                                                            Resolution
                                                            1us/cm，0.1℃

                                                            Accuracy
                                                            ±1.5%F.S.，±0.5℃

                                                            Operating temperature
                                                            0 ~ 65 ℃

                                                            Working pressure
                                                            <0.6MPa

                                                            Power
                                                            0.1W@12V

                                                            Power supply
                                                            12～24VDC

                                                            Signal output
                                                            RS-485 (Modbus / RTU)

                                                            Calibration methods
                                                            Two-point calibration

                                                            Wetted
                                                            ABS

                                                            Installation
                                                            Immersion installation

                                                            Cable length
                                                            5 meters,Other lengths can be customized

                                                            Temperature compensation
                                                            Automatic temperature compensation (Pt1000)
