IoT Digital Inductive Conductivity TDS Salinity Sensor

(0 reviews)

Get Price

(146) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(1028) Views

(11) Contacts

Widely used in pipe cleaning of power plants and foodstuff, as well as chemical production in highly polluted environments. Suitable acid concentration measurement and conductivity measurement of a high concentration salt solution less than 10%.

                                                            Measure range
                                                            0-2000ms/cm

                                                            Protocol
                                                            4 -20mA or RS485 signal output

                                                            Power Supply
                                                            DC12V-24V

                                                            Features
                                                            Strong anti-interference, High accuracy

                                                            Maximum pressure (bar)
                                                            1.6MP

                                                            Electrode body materials
                                                            PP, PFA

                                                            Measuring range
                                                            0 ~ 10ms/cm, 0 ~ 20ms/cm, 0 ~ 200ms/cm, 0 ~ 2000ms/cm

                                                            Accuracy
                                                            (cell constant)	± (+25 us to measure the value of 0.5%)

                                                            Installation
                                                            flow-through, pipeline, immersion

                                                            Output signal
                                                            4-20mA or RS485

                                                            Pipe installations
                                                            pipe threads 1 ½ or ¾ NPT

Chemical

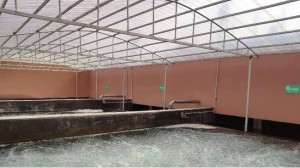

Wastewater
River water
Power plant

1. Performance in harsh chemical environments is excellent, chemical resistant material manufactured by the electrode is not polarized interference, to avoid dirt, and grime, and even affects fouling layer covering phenomena such as very poor, simple, and easy to install so it's a very wide range of applications. Design electrodes applied to a high concentration of acids (such as fuming sulfuric acid) environment.

2. English acid concentration meter use, high accuracy, and high stability.

3. Conductivity sensor technology eliminates clogging and polarization errors. Used in all areas of contact electrodes may cause blockage which has a high performance.

4. Large aperture sensor, long-term stability.

5. Accommodate a wide range of brackets and use a common bulkhead mounting structure, for flexible installation.
