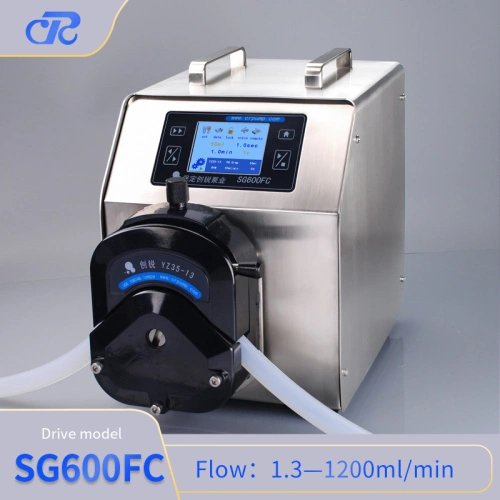

Electronic Cigarette Filling Peristaltic Dosing Pump

(0 reviews)

Get Price

(64) Views

(0) Contacts

Contact Company

Baoding Chuang Rui Precision Pump Co., Ltd.

Anhui, China

(144) Views

(0) Contacts

                                                            Speed
                                                            0.1-600rpm

                                                            Speed resolution
                                                            0.1rpm

                                                            Max Flow rate
                                                            12000ml/min

                                                            Display
                                                            LCD display

                                                            Filling volume
                                                            0.01-9999ml

                                                            Filling time
                                                            0.1s-9999min

                                                            Pause time
                                                            0.1s~9999min

                                                            Copy number
                                                            0~9999t

                                                            Power supply
                                                            AC220V±10%(standard) or AC110V±10%(optional)

                                                            External control
                                                            Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )

                                                            Communication interface
                                                            RS485 RS232

                                                            Model
                                                            SG600FC/YZ35-13

Peristalsis Dosing Pump Characteristics:

Touchscreen settings are available for the ASIC peristaltic pump.
The digital peristaltic pump has a calibration feature to guarantee the accurate
Support Foot-Pedal Control
Support for the hand dispenser.
The adjustable peristalsis pump has a touch screen.
Using the calibration function to guarantee the accurate
Pump with a Tepper Motor Peristalsis
The 304 SS housing extends the life of the pump.
Safe electromagnetic compatibility ensures consistent and reliable performance.
CE-certified product in response to a request.
