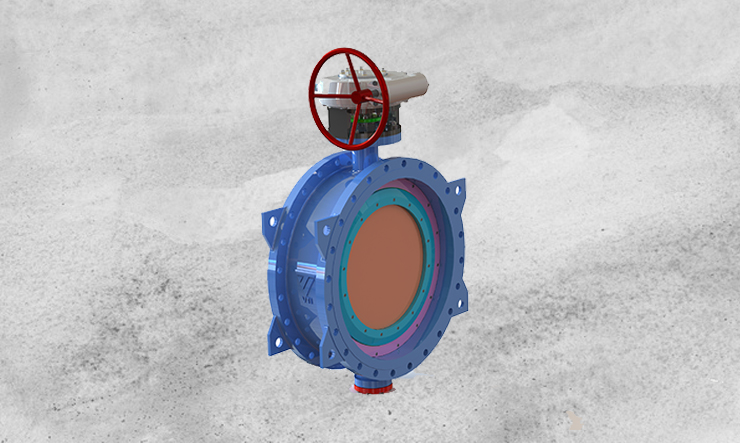

Butterfly Valves are Fabricated designs with lens Discs. Double eccentric positioning of the disc permits smooth raising and resting of the disc seal from/on the sealing surface. They have a double sealing system on the shafts and a special profile of the disc seal for positive, long-term tightness with standard seals materials BTV valves may be used in liquid and gaseous service for temperatures upto 150 degrees C

Extended Spindle for buried
Locking arrangement
Gear/Pneumatic/Electrical Actuator
Higher Pressure rating upto PN40
Further Mocs like UPVC/CPVC/PPH/PVDF can be availed in the range 40mm to 300 mm under 150 class ratin

                                                            Class
                                                            PN6 / PN10 / PN16.

                                                            Ends
                                                            Wafer/Flanged.

                                                            MOC
                                                            WCB/LCB/CF8/CF8M.

                                                            Disc
                                                            SS 304/SS 316.

                                                            Seat	SS
                                                            304/SS 316.

                                                            Mfg. Std.
                                                            API 609.

                                                            Test Std.
                                                            API 598.

• Fire Safe API 609.
• Encapsulated Disc
• NACE as per MR-01-75.
• Gear/Pneumatic/Electrical Actuator.
• Positioner, Limit Switch Box, Position Transmitter, Volume Booster.
• Size 50 mm to 2400 mm.
