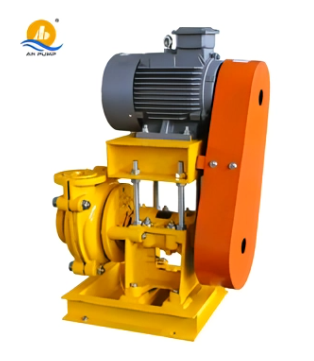

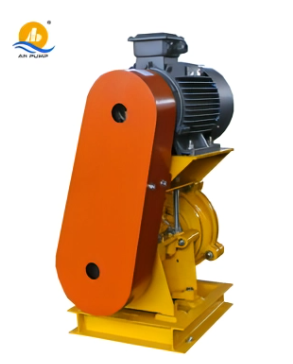

Gold Mining Preparation Centrifugal Mining Water Slurry Pump

(0 reviews)

(124) Views

(0) Contacts

AM series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.

US $450 / Set |1 Set (Min. Order)

Contact Company

Shijiazhuang An Pump Machinery Co., Ltd.

Hebei, China

(630) Views

(0) Contacts

                                                            Pump Type
                                                            Centrifugal Slurry Pump

                                                            Features
                                                            Abrasive Resistant Pump

                                                            Pump Material
                                                            High Cr Mo Ni Alloy and Rubber Liner

                                                            Usage
                                                            Pump

                                                            Pump Capacity
                                                            10 - 5400 M3/Hr

                                                            Trademark
                                                            An Pump Machinery

                                                            Origin
                                                            Shijiazhuang City, China

Design Features

Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
Impeller - Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Throat bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
One-piece frame - A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for
easy adjustment of impeller clearance.
