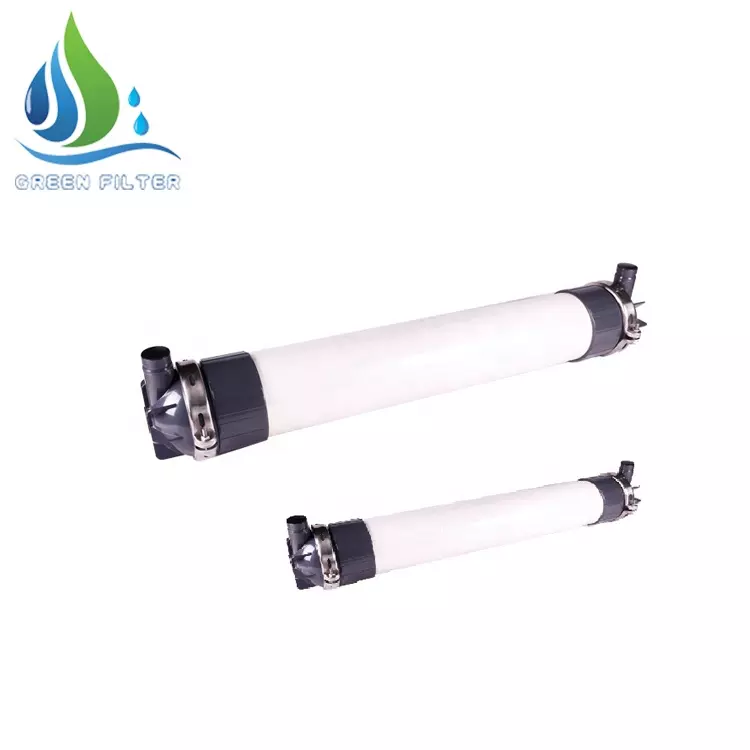

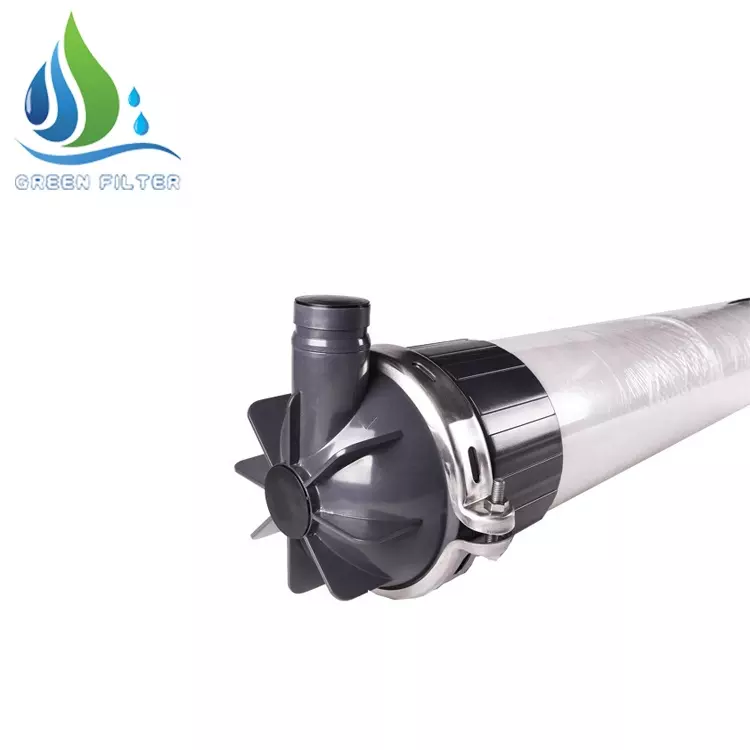

PVDF UFf200 Ultrafiltration Membrane
(0 reviews)
Get Price
(714) Views
(0) Contacts

$880.00 - $930.00 Piece Piece Piece Min. Order )

Contact Company

Green Filter Environmental Protection Co.,Ltd.
Tianjin Binhai New Area, China
(2034) Views
(7) Contacts

Membrane material
PVDF ultrafiltration membrane
Cut
UFf90AL
90*1190mm
Diaphragm area
6.5m2
Precision filter membrane
200000 Daltons
The flow of pure water
8T/h (0.15MPa,25℃)
Flow water production design
0.035-0.1T/H (0.15MPa,25℃)
Module Type
Outside-in
interface size
DN25
The hull material
UPVC
End sealing material
epoxy resin
Using temperature range
5-45℃
Using PH range
2-12
The maximum pressure water
0.2Mpa
The largest membrane pressure difference
0.15Mpa
Operating mode
Cross-flow filtration or complete filtration
The maximum backwash pressure
0.15Mpa
Back to flowing water flow
100-150L/H
Counter current time
30-60s
Counter current frequency
30-60min once
Output water turbidity
<1NTU
Microbial elimination rate
More than 99.9%
SDI filtrate
<3
