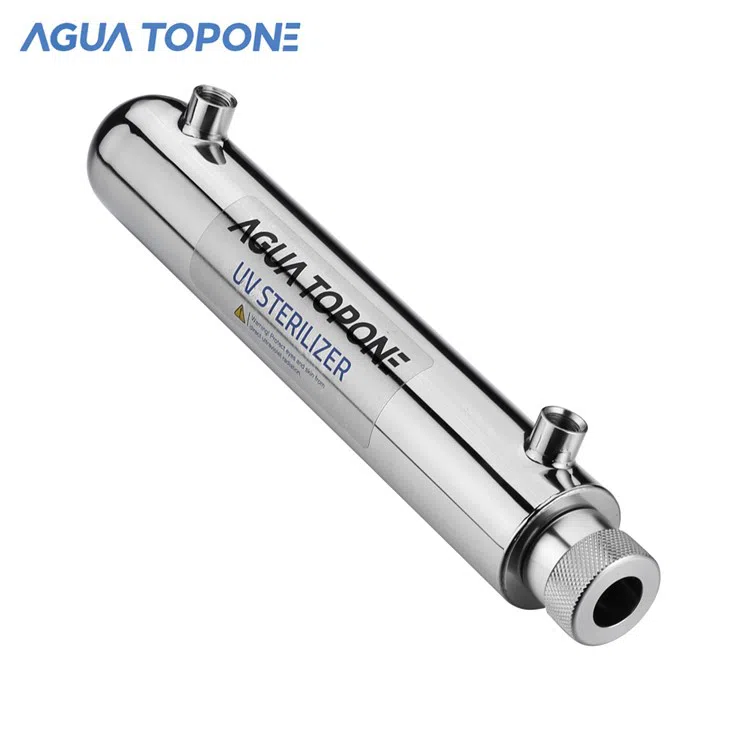

12V UVFilter

(0 reviews)

Get Price

(145) Views

(0) Contacts

Contact Company

Agua Topone

Zhejiang, China

(712) Views

(14) Contacts

The 12v UV filter can effectively kill Escherichia coli, dysentery bacteria, Legionella, influenza virus, hepatitis virus, etc. so that the water can be purified.

                                                            Maximum operating pressure
                                                            0.8Mpa(116psi)

                                                            Ambient water temperature
                                                            2-40oC(36-104oF)

                                                            UV transmittance
                                                            >75%

                                                            lron
                                                            <0.3ppm(0.3mg/L)

                                                            Turbidity
                                                            <1NTU

                                                            Hardness
                                                            <7gpg(120mg/L)

                                                            UV dose
                                                            ≧30mJ/cm2

                                                            Model
                                                            SSE-012

                                                            Flow rate (LPM)
                                                            4

                                                            Reactor dimension
                                                            315*50.8mm

                                                            In/outlet port
                                                            1/4” female

                                                            Package size (cm)
                                                            52.5×39×58.5/15sets

                                                            Lamp power
                                                            12w

Water treatment

12V UV filter Features

High-quality UV ballast meets international certifications such as CE, UL standard
Reliable High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life
The controller will go into alarm if the lamp fails UV chamber with great welding process which enables to pass 1.04MPa 100,000 times water hammer test

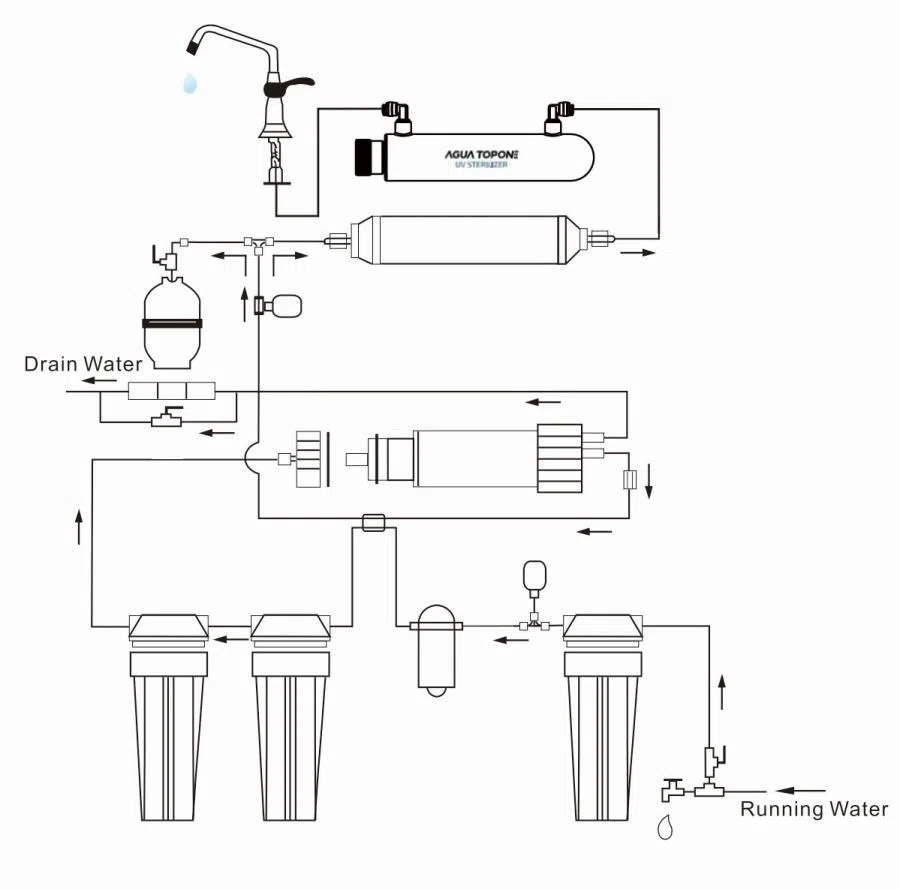

Perfect for a wide range of single-faucet,point-of-use, or low-flow point-of-entry water treatment solutions in homes, cottages, or OEM applications.
The use of a 12v UV filter will not cause secondary pollution. The special sterilization method of ultraviolet rays does not need to add any chemicals, so it will not cause secondary pollution to the water and the surrounding environment, nor will it change any components in the water.
