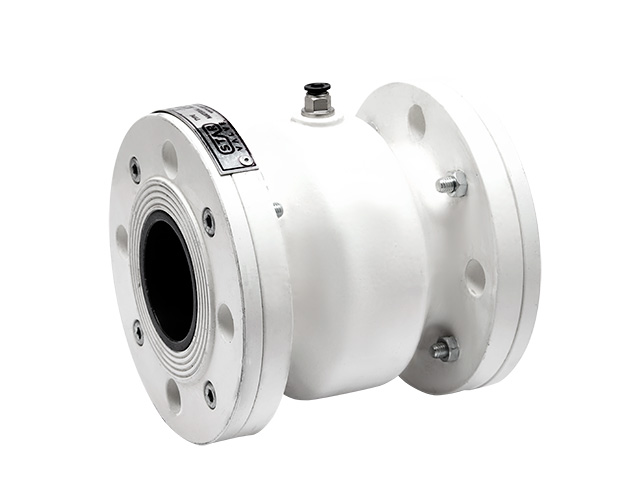

Industrial Pneumatic Valve

(0 reviews)

Get Price

(263) Views

(0) Contacts

$64-99/ Piece |1 Piece (Min. Order)

Contact Company

Jkmatic-Beijing Kangjie Zhichen Water Treatment Co., Ltd.

Beijing, China

(782) Views

(5) Contacts

Technical Advantages:

1) Low Pressure Loss- Y pattern diaphragm valve, with large seat opening and high life disc permits higher flow rates at lower pressure loss than other comparable valves.
2) Separate Diaphragm Chambers-Separate diaphragm chambers protect the valve diaphragm from the flow stream.This allows the diaphragm to be replaced without disrping service.

3) Long Diaphragm Life- Preformed and stress relieved diaphragm minimize fatigue, maximize valve responsiveness and diaphragm lifetime. The Fatigue strength are high up to 100,000times.
4) Corrosion Resistant- All internal parts in contact with media are made of composite materials. Seals are ethylene propylene for better chemical resistance.

5) Adaptable to a wide range of control devices.

6) Valve is operated by introducing either hydraulic or pneumatic pressure.
7) Working pressure:1-8 bar (15-115psi)

8) Optional Material : PA,PP and Noryl
9) Optional Size: 1inch,2inch, 3inch, 4inch

                                                            Function
                                                            Solenoid Valve, Electronic Type, Intelligent Type

                                                            Standard
                                                            DIN, GB, ANSI, BSW, JIS

                                                            Temperature of Media
                                                            4-50ºC

                                                            Trademark
                                                            JKmatic
