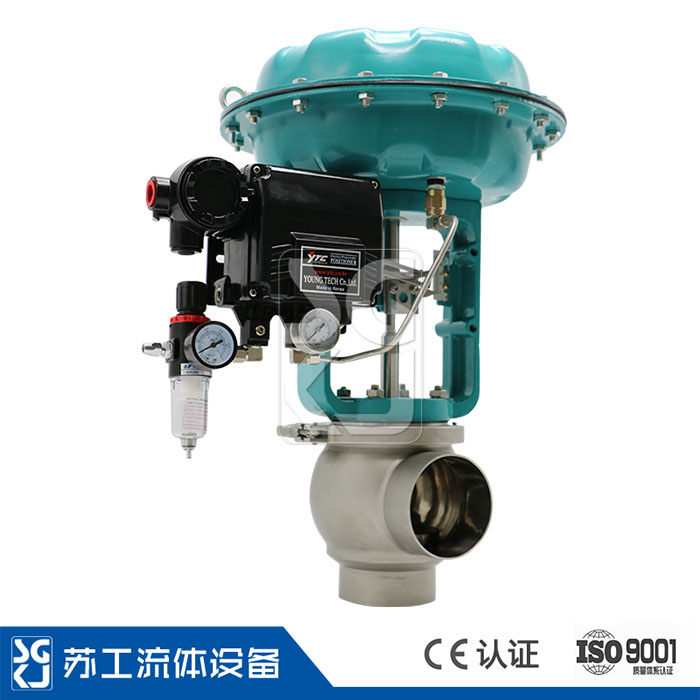

Pneumatic Film Regulating Valve

(0 reviews)

Get Price

(264) Views

(0) Contacts

The valve is available in both an electric-to-air regulator and a manual regulator.

Contact Company

Wenzhou Sugong Fluid Equipment Technology Co., Ltd

Zhejiang, China

(1564) Views

(40) Contacts

Working principle

The valve opening percentage is controlled by feeding a 4-20 mA signal, and different KV values are generated for different signal values.

                                                            Specifications
                                                            1"~5" DN25-DN125

                                                            Connection method
                                                            welding, clamp, thread, flange

                                                            Maximum working pressure
                                                            ≤10bar

                                                            Working temperature
                                                            -10 ° C to 120 ° C

                                                            Contact with material
                                                            SS304/SS316L

                                                            Internal surface contact product
                                                            Ra≤0.8μm

                                                            Sealing
                                                            EPDM, SI, FPM

                                                            Seal
                                                            Signal range: 4-20mA
