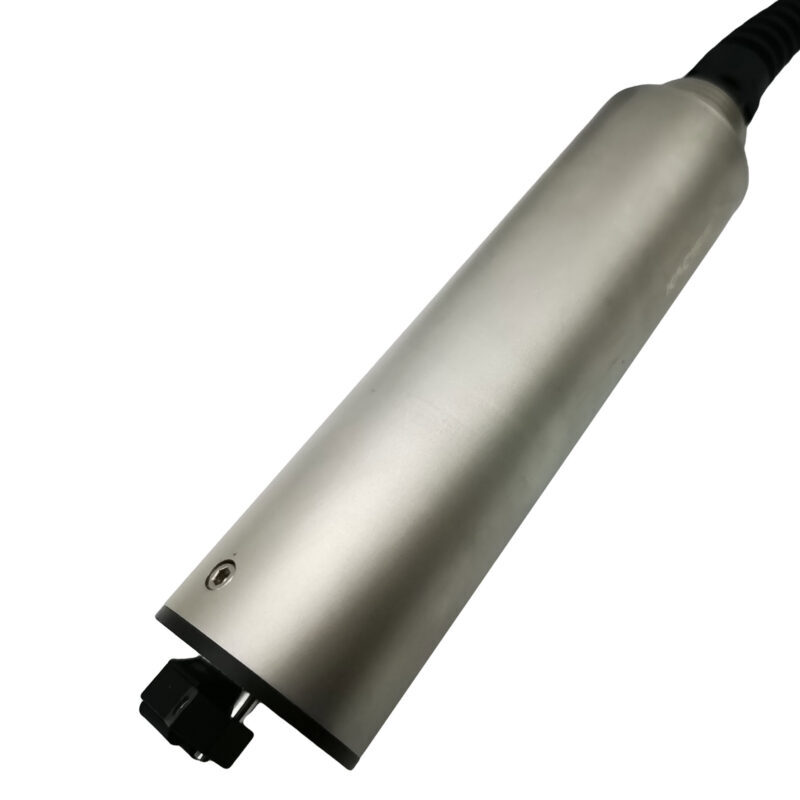

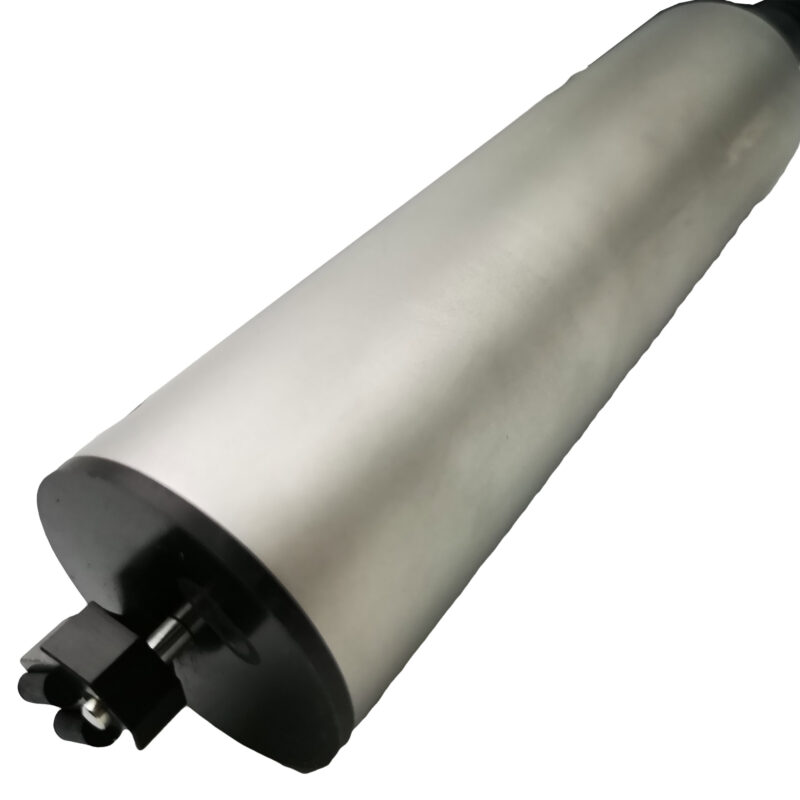

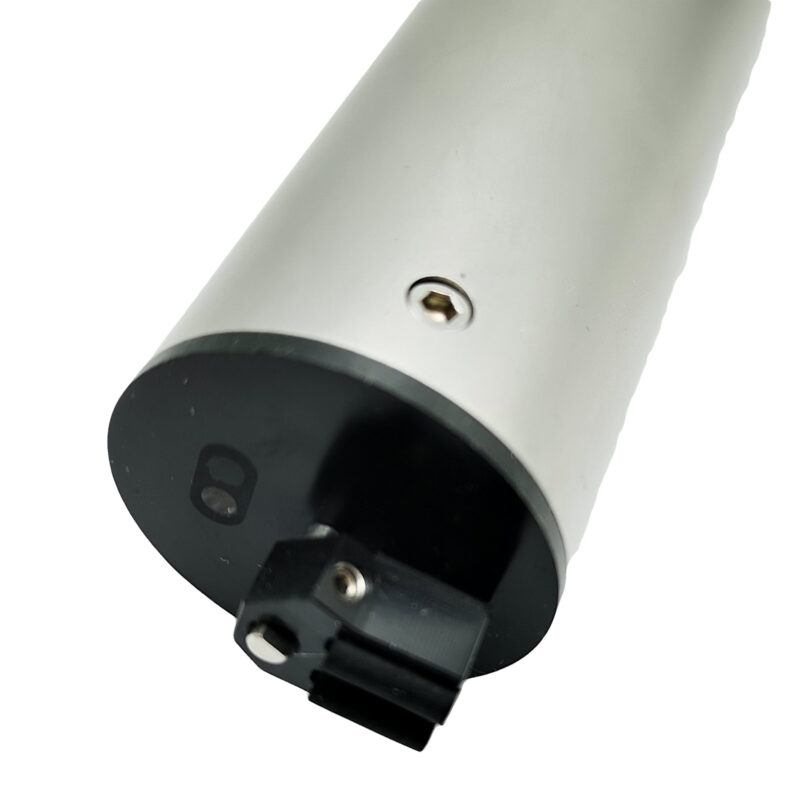

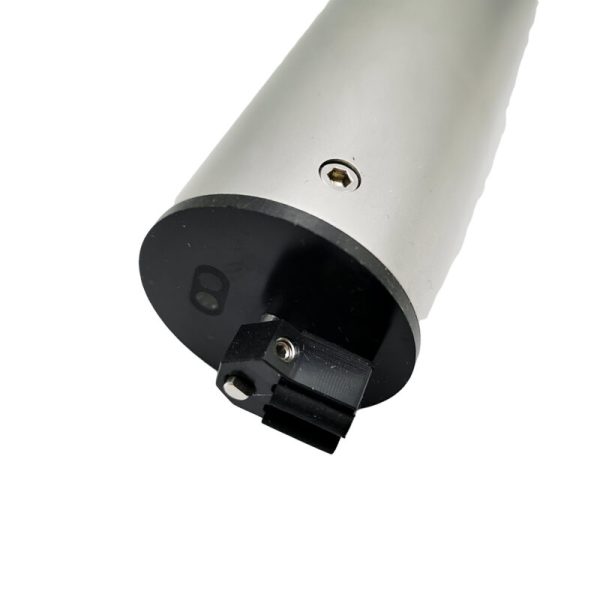

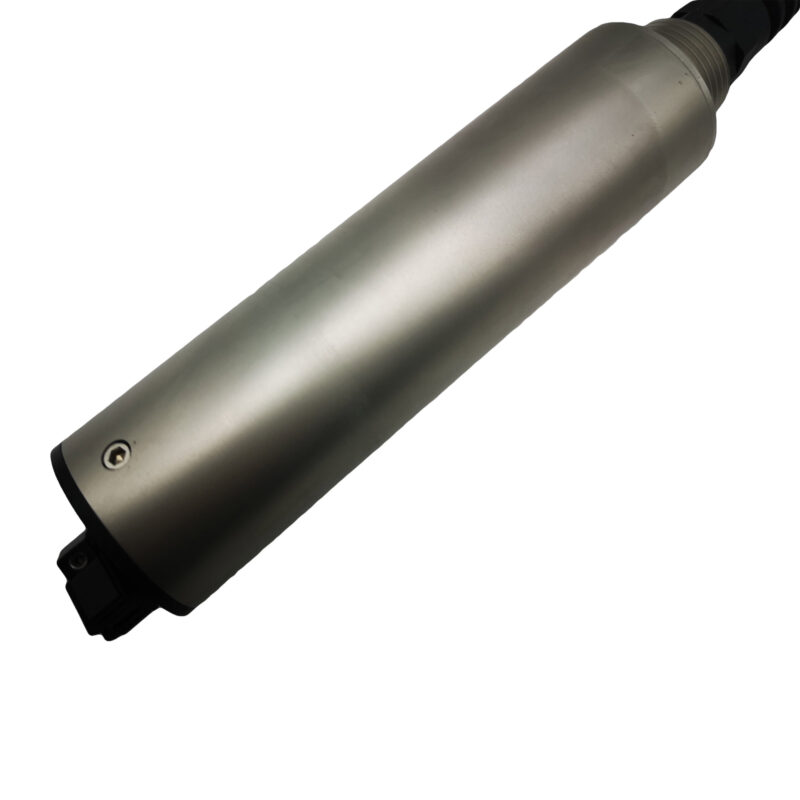

KSC300 online sludge concentration analyzer is an online analyzer for water quality based on OSA optical water quality analysis platform. Integrated design, using the infrared dispersive light method, and digital, intelligent analyzer design concept, can automatically compensate for voltage fluctuations, device aging, and temperature changes on the measured value. RS485 signal output, easy networking, and system integration are widely used in municipalities, pollution sources, and other industries.

                                                            Model number
                                                            KSC300

                                                            Measurement parameter
                                                            Sludge concentration, temperature

                                                            Contour dimension
                                                            160 mm × φ40 mm

                                                            Method of measurement
                                                            Infrared scattering method

                                                            Measurement mode
                                                            Immersion measurement

                                                            Weight
                                                            0.5 kg

                                                            Measuring range
                                                            Sludge concentration: (0 ~ 25000/50000) mg/L Temperature: (0 ~ 60) °C

                                                            Accuracy
                                                            ≤ ± 5%

                                                            Repeatability
                                                            ≤3%

                                                            Resolution
                                                            1 mg/L

                                                            Detection limit
                                                            5 mg/L

                                                            Material Quality
                                                            Stainless steel, POM

                                                            Response time
                                                            ≤5s

                                                            Zero Drift (24h)
                                                            ≤ ± 3% F.S.

                                                            Range Drift (24h)
                                                            ≤ ± 3% F.S.

                                                            Calibration period
                                                            Six months

                                                            Temperature range
                                                            (0 ~ 60) °C

                                                            Protection level
                                                            IP68

                                                            Cleaning mode
                                                            Automatic cleaning of mechanical brush

                                                            MTBF
                                                            ≥1440h/Time

                                                            Means of communication
                                                            RS485(Modbus RTU), maximum baud rate 115200 bps

                                                            Supply voltage
                                                            (12/24) V DC

                                                            Power consumption
                                                            < 1W (in non-cleaning mode)

Municipalities
Pollution sources
Other industries.

Characteristics of sludge concentration analyzer

Integrated design, anti-electromagnetic interference
High-brightness infrared LED is used as a light source to eliminate the influence of sample color
The unique optical and electronic filtering technology is used to eliminate the influence of ambient light on the measurement
Cleaning brush automatic cleaning, greatly reducing the maintenance workload
Stainless steel case, IP68 waterproof grade, suitable for various working conditions
RS485 signal output, Standard Modbus protocol, easy integration, networking.
RS485 connects with the Modbus RTU protocol
Low power supply
SS316 shells for a long lifetime.
