Digital PH sensor online

(0 reviews)

165 USD

(480) Views

(0) Contacts

>= 1 pieces
$165.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(2635) Views

(9) Contacts

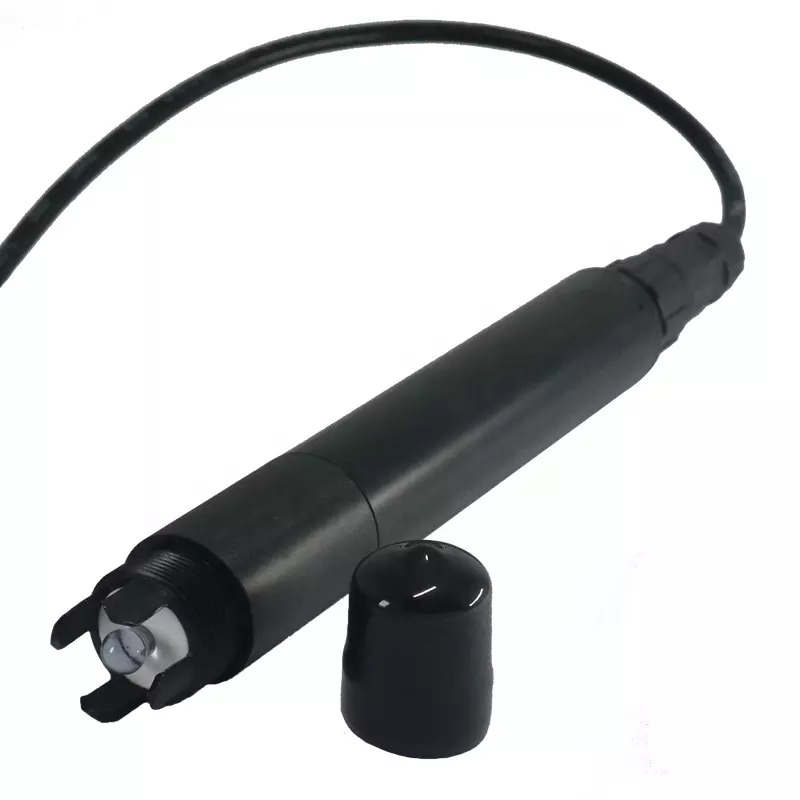

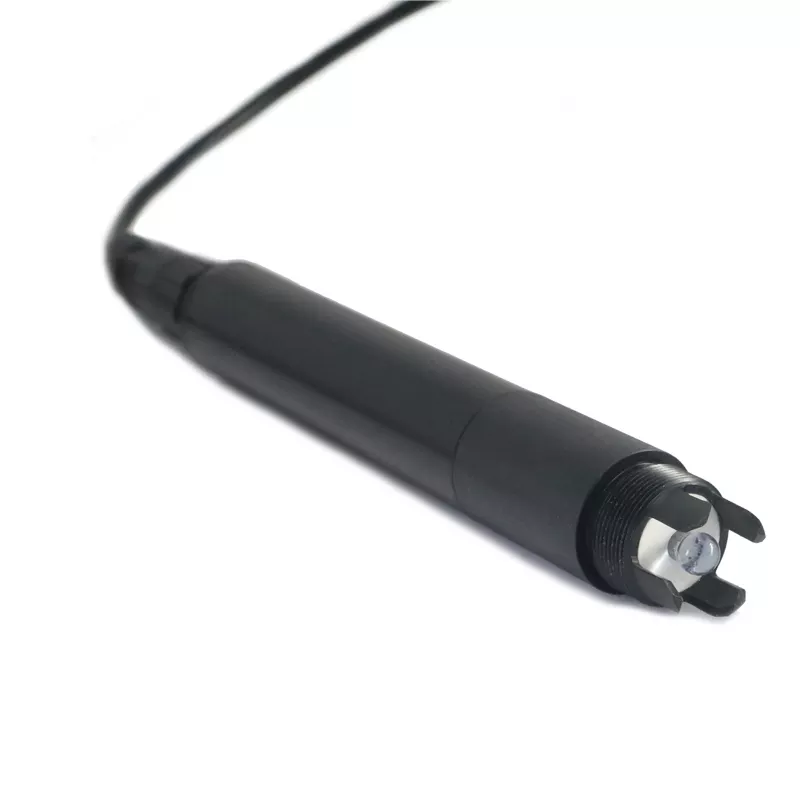

The digital pH sensor uses an industrial online electrode, and the front end of the electrode is a flat structure, which is easy to clean. The built-in temperature sensor can automatically compensate for temperature, which is suitable for an online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without a controller.

                                                            product name
                                                            Digital pH sensor

                                                            Detection principle
                                                            Compound electrode

                                                            cable length
                                                            Standard 10 meters

                                                            Response time
                                                            <30 seconds

                                                            Measurement range
                                                            0~14pH

                                                            measurement accuracy
                                                            0.1PH _

                                                            Product Size
                                                            Φ25 X 198mm

                                                            resolution
                                                            0.01PH

                                                            temperature range
                                                            0~50 °C

                                                            storage temperature
                                                            -20~80 °C

                                                            output signal
                                                            RS-485 , MODBUS protocol

                                                            product material
                                                            POM/316

                                                            Calibration method
                                                            3- point calibration

                                                            entry depth
                                                            <10 meters

                                                            Under pressure
                                                            1 bar

                                                            waterproof level
                                                            IP68

                                                            Model
                                                            DS510

                                                            Probe cable length
                                                            10 meters (default), can be customized

                                                            Protection class
                                                            IP68

                                                            Power information
                                                            DC 5 ~ 12V, current <50mA (when not cleaning)

                                                            Operating pressure
                                                            6bar

                                                            assembly
                                                            Input

➽Composite electrode technology, long service life

➽Not affected by transmission distance, good stability

➽Built-in temperature sensor, automatic temperature compensation

➽Network integration is possible without a controller

Sensor characteristics:
1. Digital sensor, RS-485 output, support MODBUS
2, not affected by transmission distance, better stability
3. Built-in temperature sensor, automatic temperature compensation
