Reverse Osmosis Water Treatment System

(0 reviews)

Get Price

(115) Views

(0) Contacts

Daily Cosmetics Industrial Water Purification Systems Reverse Osmosis Water Treatment System

Contact Company

Guangzhou Qihang Machinery & Equipment Co., Ltd

Guangdong, China

(2123) Views

(7) Contacts

Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from the solution after it permeates the specially-made semi-transparent membrane by exerting a pressure that is higher than the osmosis pressure on the solution. As this process is reversed to the natural permeation direction, it is called reverse osmosis. According to the differences in osmosis pressure of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification, and concentration of a certain solution. It does not need heating and there is no phase-changing process; therefore, it saves more energy than traditional processes.
Different filters for each link:

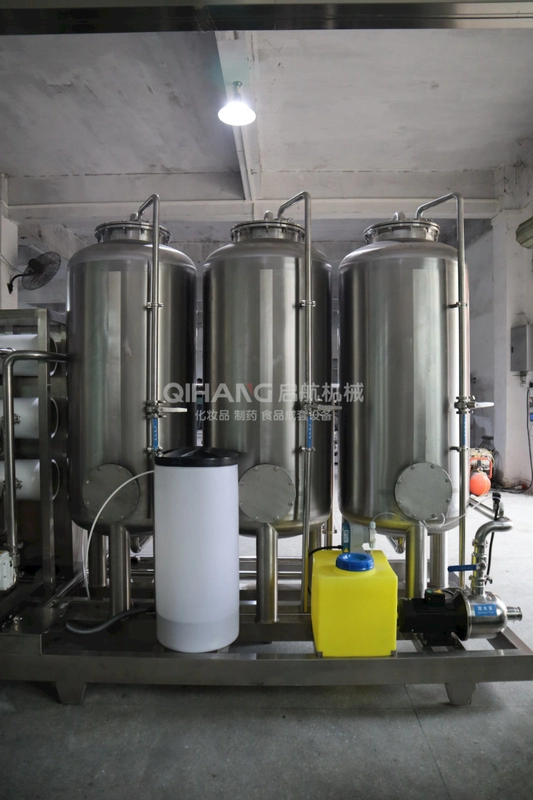

Quartz Sand filter
The quartz sand filter (multi-media filter) is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds, etc., ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Active Carbon filter
The active carbon filter is the key device, commonly used for the removal of organic substances and heavy metal elements, suspended solids, residual chlorine, etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and coconut shell active carbon bed are employed. The activated carbon is equipped with vent valves at the highest point and a drain connection at the lowest point. The internal systems and components for each tank are constructed of FRP material.
Security filter (micron filters)
The security filter is most commonly used for treating water. The whole system adopts one set of stainless filters. There are 3 pieces of polypropylene in every 5μ filter cartridge, filtering the vast majority of particles in the water, which eases the load of the RO membrane. This process of filtration benefits the filter cartridge and prolongs its lifetime in the system. This apparatus contains a filtration component and stainless support layers. Stainless steel 304, which has a compact structure, a beautiful shape, high flux, good filtration accuracy, and other benefits, is used to make the support layer. This device has a side drain valve, a bottom drain valve, and an air drain valve installed.

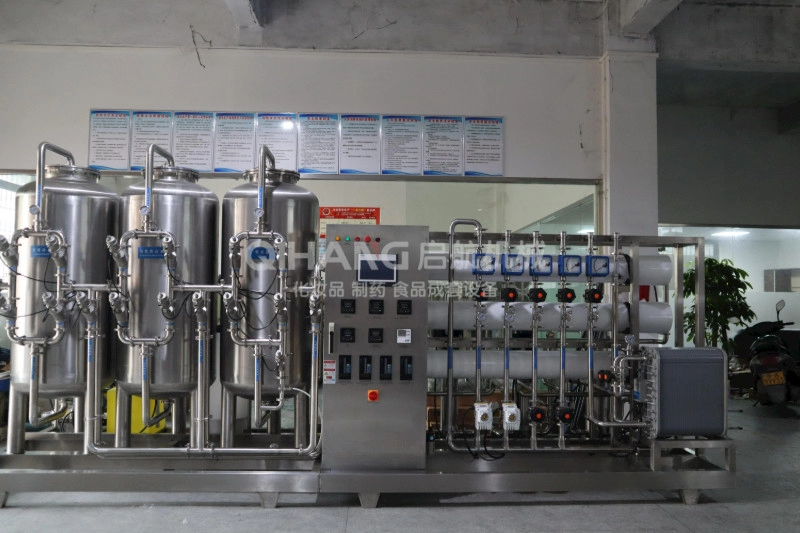

First-level and second-level Reverse Osmosis Systems ( RO)
A RO system is an essential component of a water treatment system, which is used extensively to produce drinking and pure water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. As a result, the pure solvent is permitted to flow to the opposite side of the membrane while solutes like iron, viruses, bacteria, and solids are held on the pressurized side.

                                                            Place of Origin
                                                            China

                                                            Brand Name
                                                            QiHang

                                                            Certification
                                                            CE,ISO

                                                            Model Number
                                                            QH-RO-2

                                                            Material
                                                            SS304/ 316L

                                                            Warranty
                                                            1 Year

                                                            Capacity
                                                            2000 Lilter/Hour

                                                            Function
                                                            Water Purification Plant,beverage Or Food Company

                                                            Type
                                                            RO Water Treatment Equipment

                                                            Operation
                                                            24 Hours Automatic Running,full Automatic Poultry Farm Waste Water Treatment

                                                            Voltage
                                                            220V / 380V

                                                            Desalination Rate
                                                            ≥96-98%

                                                            High Light
                                                            2000 Lilter / Hour Water Purification Systems, 98% Desalination Industrial Water Purification Systems
