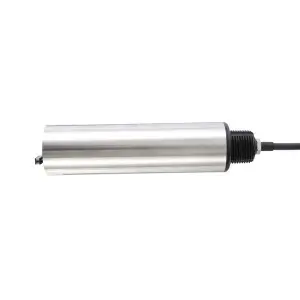

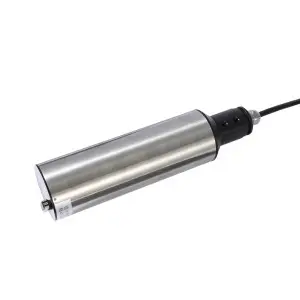

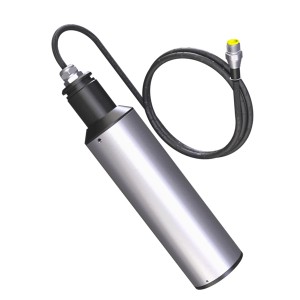

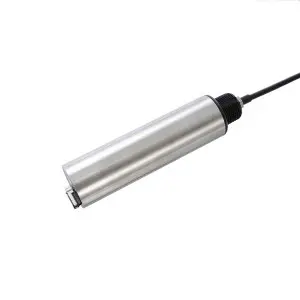

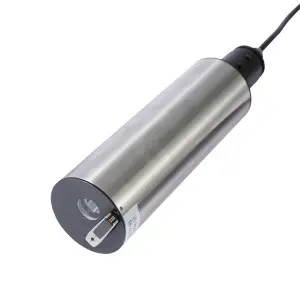

IoT Digital Turbidity Sensor

(0 reviews)

Get Price

(160) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(1027) Views

(11) Contacts

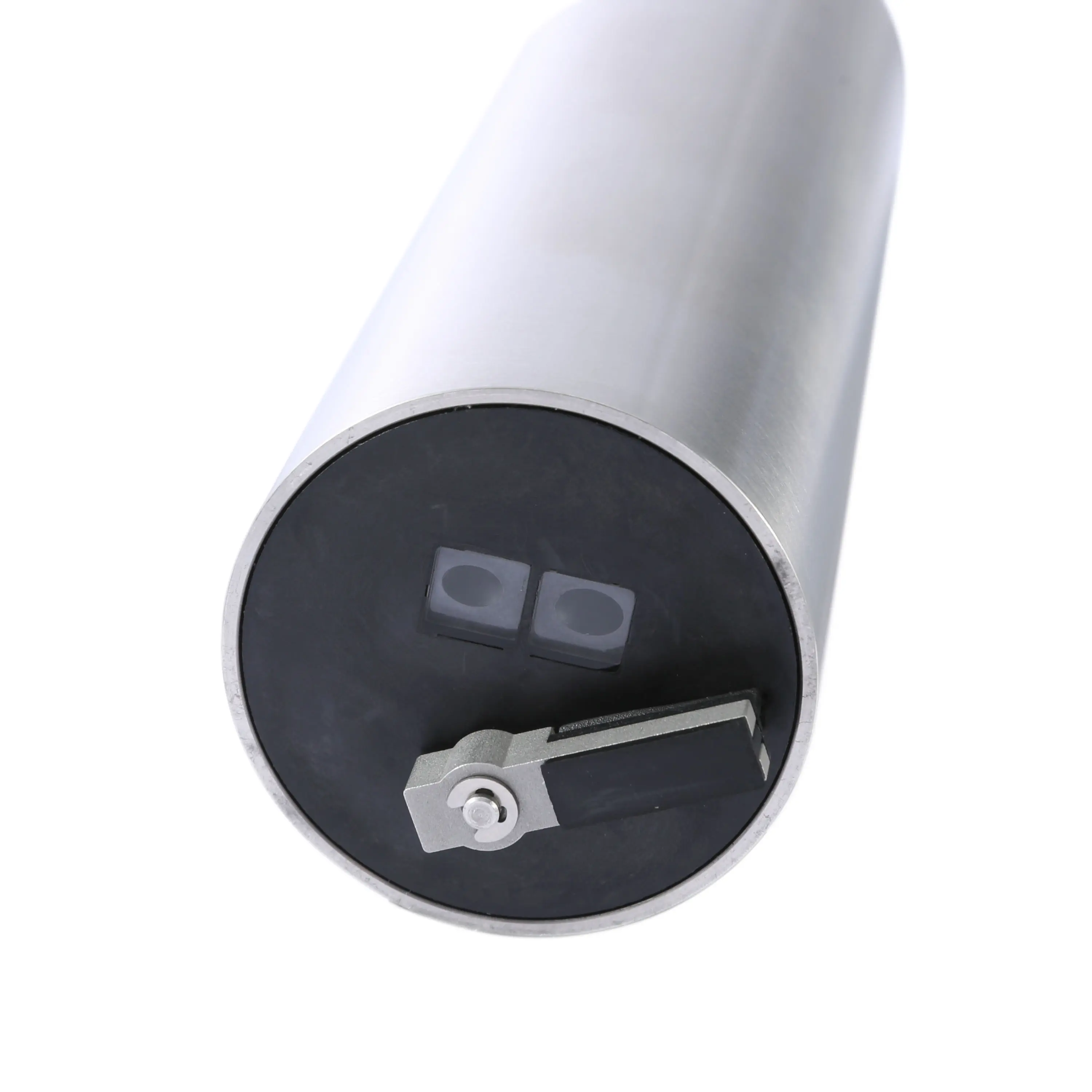

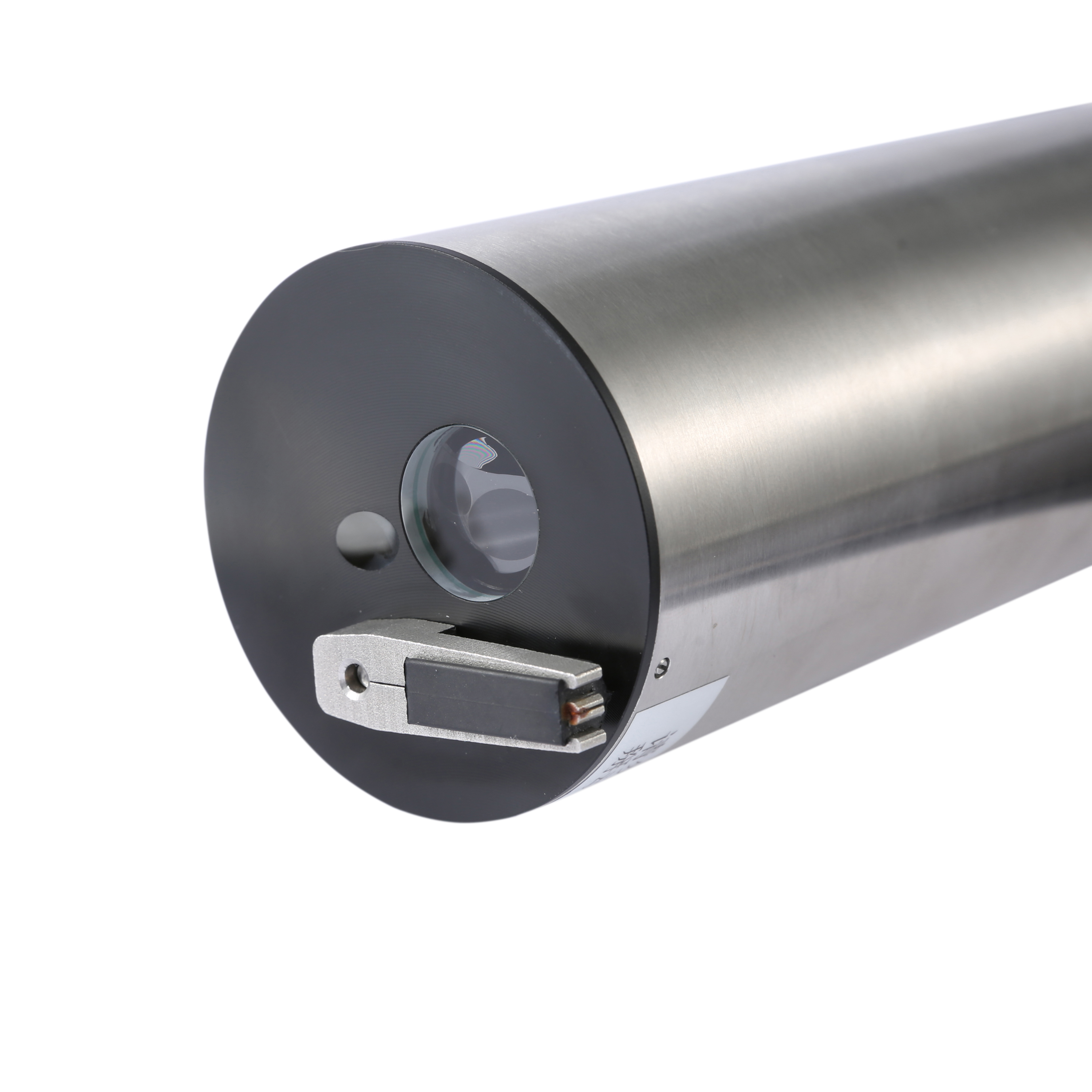

The ZDYG-2088-01QX Turbidity sensor is based on the infrared absorption scattered light method and combined with the application of the ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of suspended solids and sludge concentration value. According to the usage environment, the self-cleaning function can be equipped. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function. The digital suspended solid sensor measures the water quality and delivery the data in high precision, the sensor installation and calibration are quite simple too.

                                                            Model No
                                                            ZDYG-2088-01QX

                                                            Measurement Range
                                                            0.01-100 NTU ,0.01－4000 NTU

                                                            Protocol
                                                            Modbus RTU RS485

                                                            Power Supply
                                                            DC12V

                                                            Features
                                                            Scattered light principle, automatic cleaning system

                                                            Main Materials
                                                            Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version)  Upper and Lower Cover:PVC  Cable: PVC

                                                            Communication
                                                            RS485 Modbus

                                                            Waterproof Rate
                                                            IP68/NEMA6P

                                                            Indication Resolution
                                                            Less than ± 5% of the measured value (depending on sludge homogeneity)

                                                            Pressure Range
                                                            ≤0.4Mpa

                                                            Flow velocity
                                                            ≤2.5m/s,8.2ft/s

                                                            Temperature
                                                            Storage Temperature:-15~65℃;Environment Temperature:0~45℃

                                                            Calibration
                                                            Sample Calibration, Slope Calibration

                                                            Cable Length
                                                            Standard 10-Meter Cable, Max Length: 100 Meters

                                                            Power Supply
                                                            12 VDC

                                                            Warranty
                                                            1 year

                                                            Size
                                                            Diameter 60mm* Length 256mm
