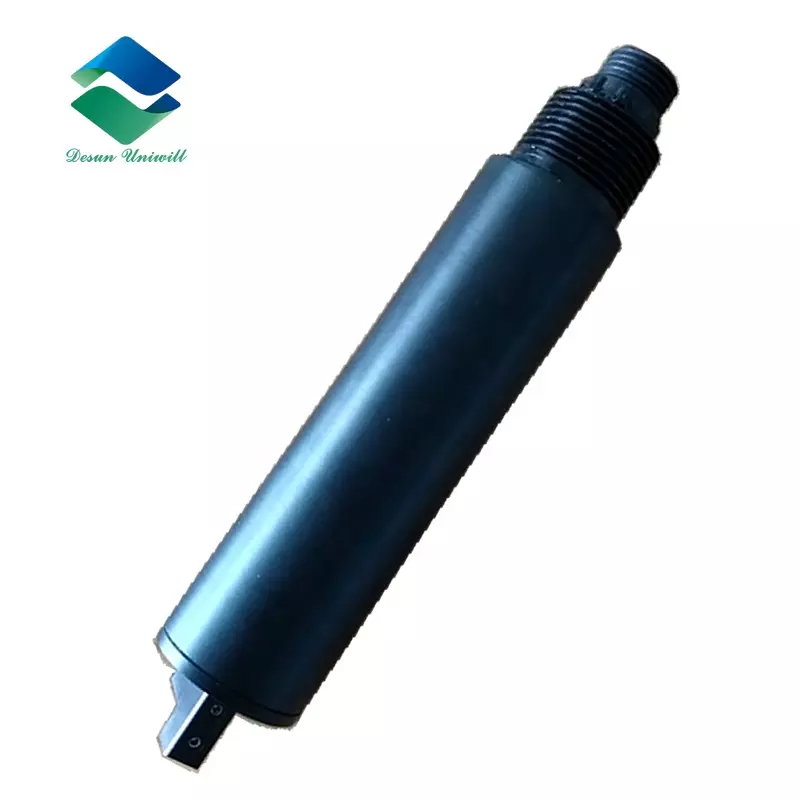

TSS -Total Suspended Solids Sensor

(0 reviews)

400 USD

(479) Views

(0) Contacts

$400.00 - $750.00/ 1 piece/piece

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(2639) Views

(9) Contacts

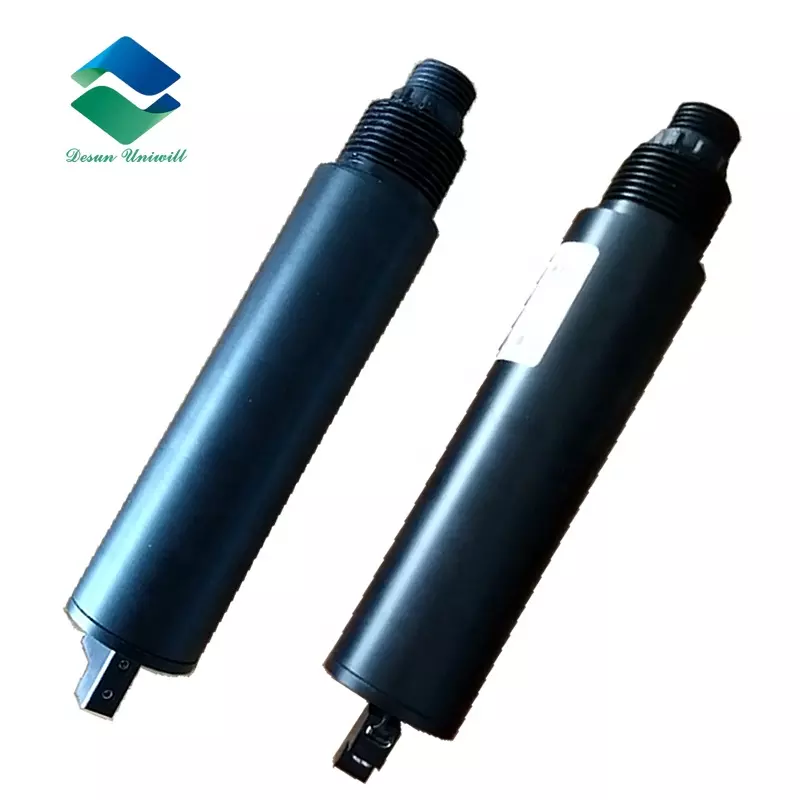

TSS Total Suspended Solids Sensor adopts the optical fiber structure 135° backlight detection method, which can compensate the color of the water body and reduce the influence of the color of the water body and ambient light on the detection results. It has a cleaning function and is not affected by air bubbles and solid pollutants. Impact, small size, easy to install.

                                                            Product name
                                                            TSS suspended solids

                                                            Detection principle
                                                            135°

                                                            Waterproof level
                                                            IP68

                                                            Backlight Measurement range
                                                            0~4000mg/L

                                                            Output signal
                                                            RS-485, MODBUS protocol

                                                            Measurement accuracy
                                                            ± 3%

                                                            Storage temperature
                                                            -20~80℃

                                                            Resolution
                                                            0.1mg/L

                                                            Temperature range
                                                            0~50℃

                                                            Optical window
                                                            optical fiber

                                                            Under pressure
                                                            1bar

                                                            Cable length
                                                            Standard 5 meters

                                                            Product material
                                                            POM/316/titanium alloy

                                                            Product Size
                                                            Φ32 X 161mm

                                                            Power information
                                                            DC6~12V/12~24V, current <50mA

The detection window is made of sapphire to prevent surface scaling.
With automatic cleaning to prevent contamination and eliminate air bubbles.
Titanium alloy material can be selected according to highly corrosive water bodies.
Online continuous monitoring, and real-time control of water quality dynamics.
