Water Treatment System

(0 reviews)

6620 USD

(325) Views

(0) Contacts

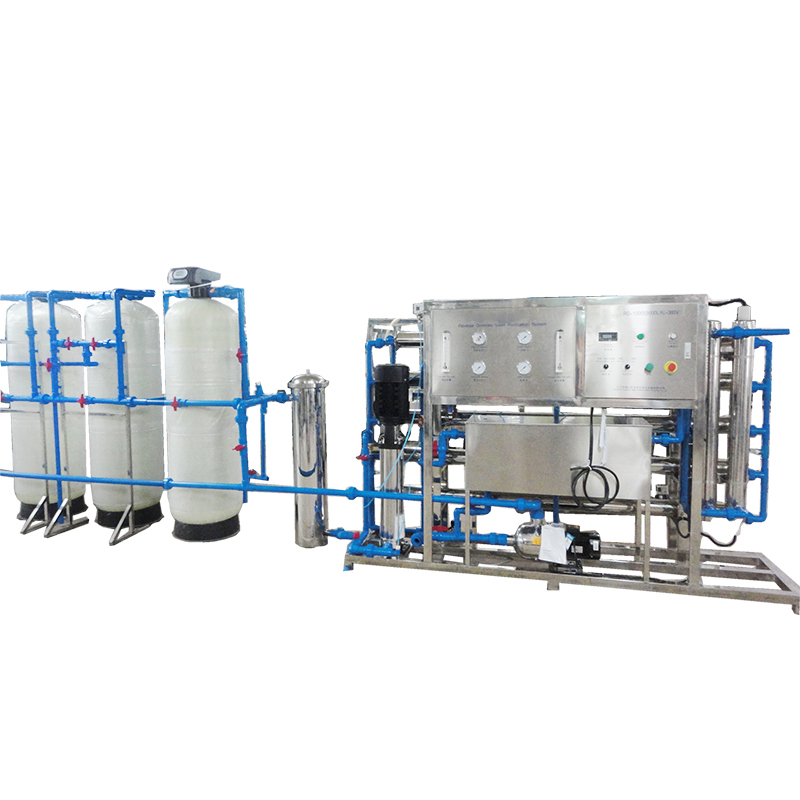

Automatic Pure Water Reverse Osmosis Water Treatment Machine Line

1 unit
$6,620.00

Contact Company

Jiangmen Tings Drinking Water Equipment Co., Ltd.

Guangdong, China

(1906) Views

(28) Contacts

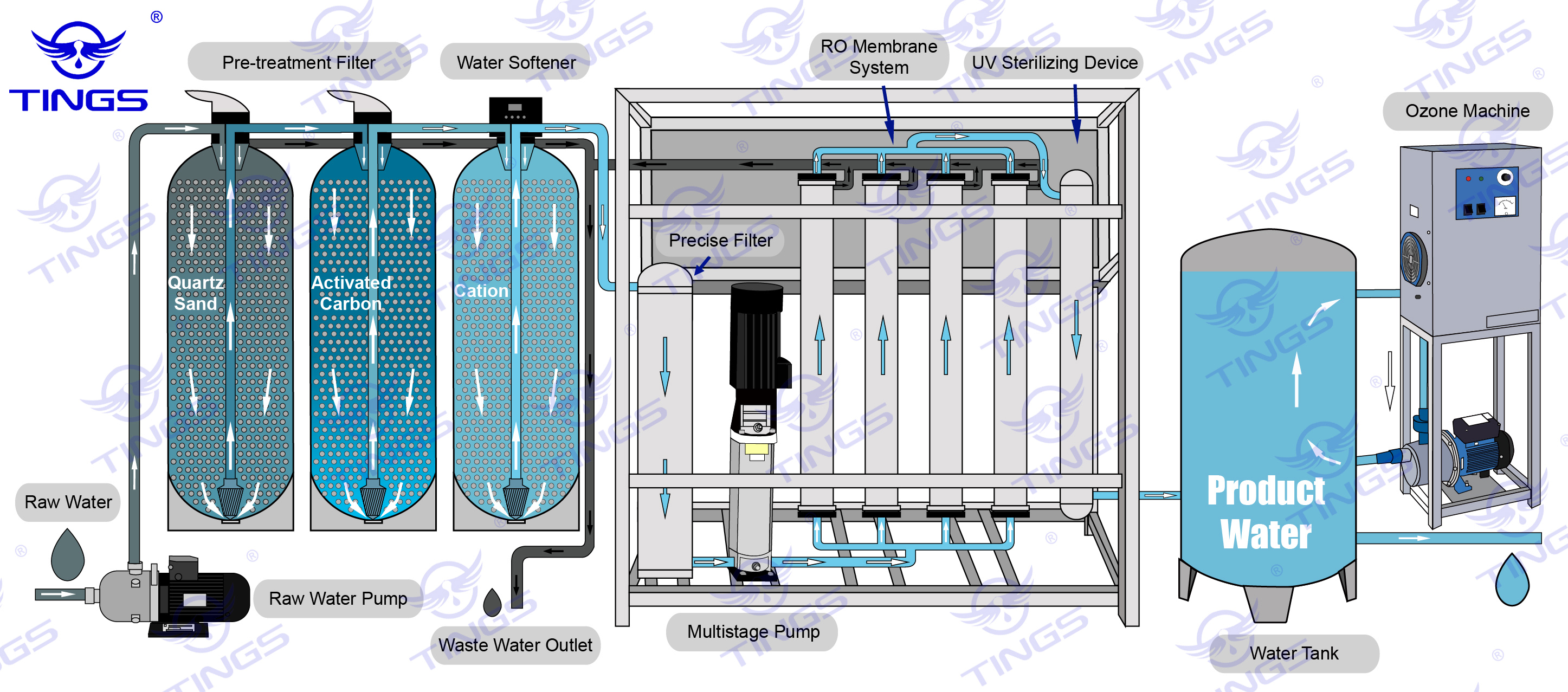

●Booster pump

The device provides a stable water source and pressure to the back-end treatment system.

●Sand Filter

The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water.
It is equipped with an automatic control valve, which can discharge the sediment by its automatic back washing function.

●Activated carbon filter

This filter removes the colors and smells of the raw water to improve the water’s flavor.

●Water softener

This device softens the water by oxidizing the calcium ion and magnesium ion in the raw water with caution.

●Precise filter

With a filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters.
It can prevent impurity substances from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.

●Multistage pump

This device gives a stable water supply and sufficient pressure to the reverse osmosis membrane system.

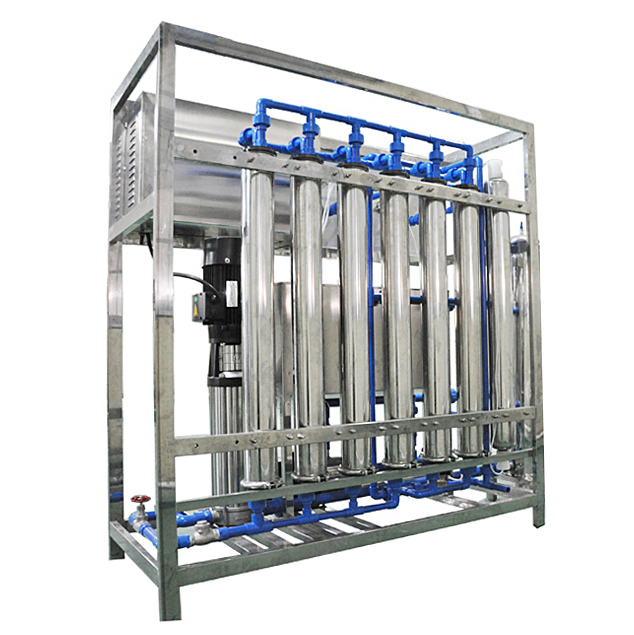

Reverse osmosis system
This device filters the substances such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of standard daily drinking water.

Function：
●Water filtration
●RO membranes auto wash and manual wash
●Auto stop on high pure water level, auto-start on the low pure water level
●Multi-phased pump can prevent the system from water shortage
●Protection of power-off, under-voltage, excessive current, short circuit, leakage of electricity.

                                                            Warranty
                                                            1 Year

                                                            Warranty of core components
                                                            1 Year

                                                            Weight (KG)
                                                            1000kg

                                                            Filter Media
                                                            Sand+carbon+RO

                                                            Filter Type
                                                            UV+ozone

                                                            Ozone output
                                                            10G

                                                            Raw material
                                                            Fiber Glass Reinforced Plastic

                                                            Control
                                                            Electric Auto Control (PLC Siemens)

                                                            Advantage
                                                            24 Hours Automatic Running

                                                            RO membrane
                                                            4040 RO Membrane

                                                            Material
                                                            wooden case

                                                            Productivity
                                                            3000L/Hour

                                                            Weight
                                                            1000kg

                                                            Power
                                                            5.1KW
