Stainless Steel 304/316 Cartridge Filter MG6

(0 reviews)

Get Price

(110) Views

(0) Contacts

1 - 9 pieces
$317.00
10 - 99 pieces
$266.00
>= 100 pieces
$255.00

Contact Company

Fujian Huamo Technology Co., Ltd.

Fujian, China

(1415) Views

(41) Contacts

Cartridge filter, also known as a security filter. The shell is made of high-quality stainless steel, filter using a molded filter, The liquid went through the filter under pressure, and the residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment, and suspended solids, bacteria. Molded filters are cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter, and multi-function filter. Due to different filters, the filter pore size is not the same. The precision filter is between the sand filter (coarse) and a filter between ultra-filtration, with filter pore size generally between 0.01-120um. For the same form of filter, it is divided into different models by their dimensions.

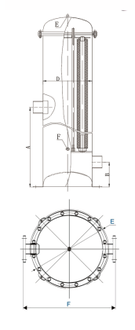

Model	A(mm)	B (mm)	D(mm)	Inlet/outlet	Drain
HM-MG6-W5L3	180	75	Φ200	1"- 2"	1/4"
HM-MG6-W5L4	180	75	Φ200	1"- 2"	1/4"
HM-MG6-W7L3	220	80	Φ250	1 1/2"- 2"	1/2"
HM-MG6-W7L4	220	80	Φ250	1 1/2"- 2"	1/2"
HM-MG6-W11L3	600	150	Φ300	2"- 3"	1/2"
HM-MG6-W11L4	800	150	Φ300	2"- 3"	1/2"
HM-MG6-W15L3	600	150	Φ350	2"- 3"	3/4"
HM-MG6-W15L4	800	150	Φ350	2"- 3"	3/4"
HM-MG6-W20L3	600	150	Φ400	2"- 4"	3/4"
HM-MG6-W20L4	800	150	Φ400	2"- 4"	3/4"
HM-MG6-W27L3	600	150	Φ450	2"- 4"	3/4"
HM-MG6-W27L4	800	150	Φ450	2"- 4"	3/4"
HM-MG6-W30L3	600	150	Φ500	2"- 4"	1"
HM-MG6-W30L4	800	150	Φ500	2"- 4"	1"
HM-MG6-W36L3	600	150	Φ550	2 1/2" - 4"	1"
HM-MG6-W36L4	800	150	Φ550	2 1/2" - 4"	1"
HM-MG6-W40L3	700	150	Φ600	2 1/2" - 4"	1"
HM-MG6-W40L4	900	150	Φ600	2 1/2" - 4"	1"
HM-MG6-W50L3	700	150	Φ650	3" - 4"	1"
HM-MG6-W50L4	900	150	Φ650	3" - 4"	1"
HM-MG6-W60L3	700	150	Φ700	3" - 5"	1"
HM-MG6-W60L4	900	150	Φ790	3" - 5"	1" - 1/2"
HM-MG6-W75L3	700	200	Φ750	3" - 5"	1" - 1/2"
HM-MG6-W75L4	900	200	Φ750	3" - 5"	1" - 1/2"
HM-MG6-W80L3	700	200	Φ800	4" - 6"	1" - 1/2"
HM-MG6-W80L4	900	200	Φ800	4" - 6"	1" - 1/2"
HM-MG6-W90L3	700	200	Φ850	4" - 6"	1" - 1/2"
HM-MG6-W90L4	900	200	Φ850	4" - 6"	1" - 1/2"
HM-MG6-W100L3	700	200	Φ900	4" - 6"	1" - 1/2"
HM-MG6-W100L4	900	200	Φ900	4" - 6"	1" - 1/2"
HM-MG6-W120L3	800	250	Φ1000	4" - 6"	1" - 1/2"
HM-MG6-W120L4	1000	250	Φ1000	4" - 6"	1" - 1/2"
HM-MG6-W140L3	800	250	Φ1100	4" - 6"	2"
HM-MG6-W140L4	1000	250	Φ1100	4" - 6"	2"
HM-MG6-W160L3	800	250	Φ1200	6" - 10"	2"
HM-MG6-W140L4	1000	250	Φ1200	6" - 10"	2"

                                                            Material
                                                            SUS304, SUS316L

                                                            External surface.
                                                            Polished or sandblast

                                                            Max working pressure
                                                            150 Psi
