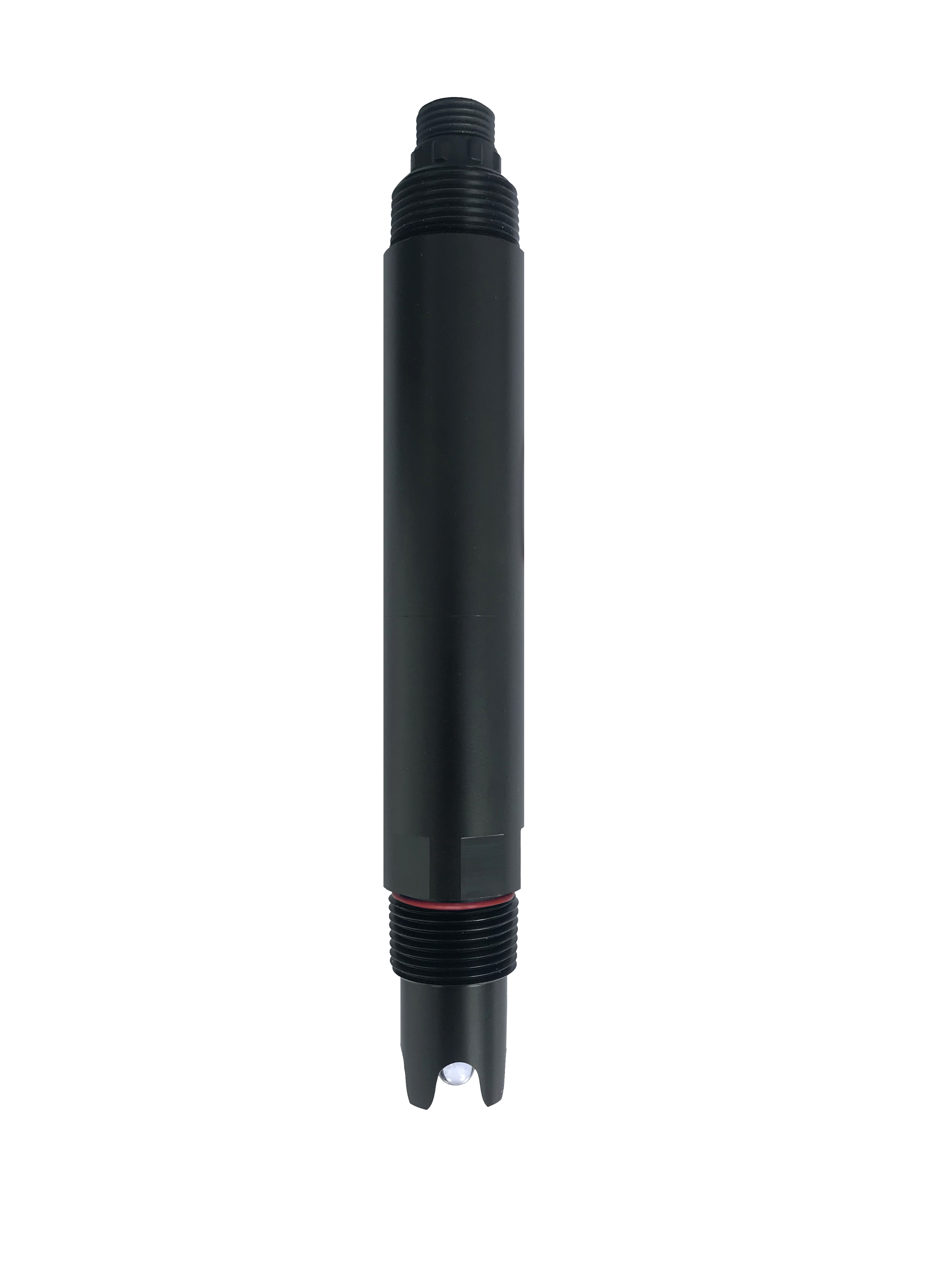

Online PH Sensor

(0 reviews)

224 USD

(249) Views

(0) Contacts

$224.00/ 1 piece

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(2120) Views

(20) Contacts

Signal output: RS-485 (Modbus/RTU protocol).
Convenient connection to third-party devices such as PLCs, DCS, industrial control computers, general-purpose controllers, paperless recording instruments, or touch screens. Dual high-impedance differential amplifier with strong anti-interference and fast response.
The patented pH probe, the internal reference solution oozes extremely slowly from the microporous salt bridge at a pressure of at least 100 kpa (1 Bar), and its forward bleed continues for more than 20 months. Such a reference system is very stable and the electrode life is extended by a factor of two compared to conventional industrial electrodes.
Easy to install: 3/4 NPT pipe thread for easy submersible installation or installation in pipes and tanks.
IP68 protection grade.

                                                            Model
                                                            PHG-206A

                                                            Protection grade
                                                            IP68

                                                            Measuring range
                                                            0～14pH

                                                            Power consumption
                                                            0.2W@12V

                                                            Resolution
                                                            0.01pH

                                                            Calibration
                                                            Two-point calibration

                                                            Accuracy
                                                            ±0.1pH，±0.3℃

                                                            Cable length
                                                            5 meters, other lengths can be customized

                                                            Working temperature
                                                            0～65℃

                                                            Mounting method
                                                            Immersion mounting, 3/4 NPT thread

                                                            Working pressure
                                                            ＜0.2MPa

                                                            Wetted material
                                                            POM

                                                            Temperature compensation
                                                            Auto temperature compensation (NTC)

                                                            Signal output
                                                            RS-485(Modbus/RTU)

                                                            Power supply
                                                            12～24VDC

Used for environmental water quality monitoring, acid/alkali/salt solution, chemical reaction process, and industrial production process, it can meet the requirements of online pH measurement for most industrial applications.
