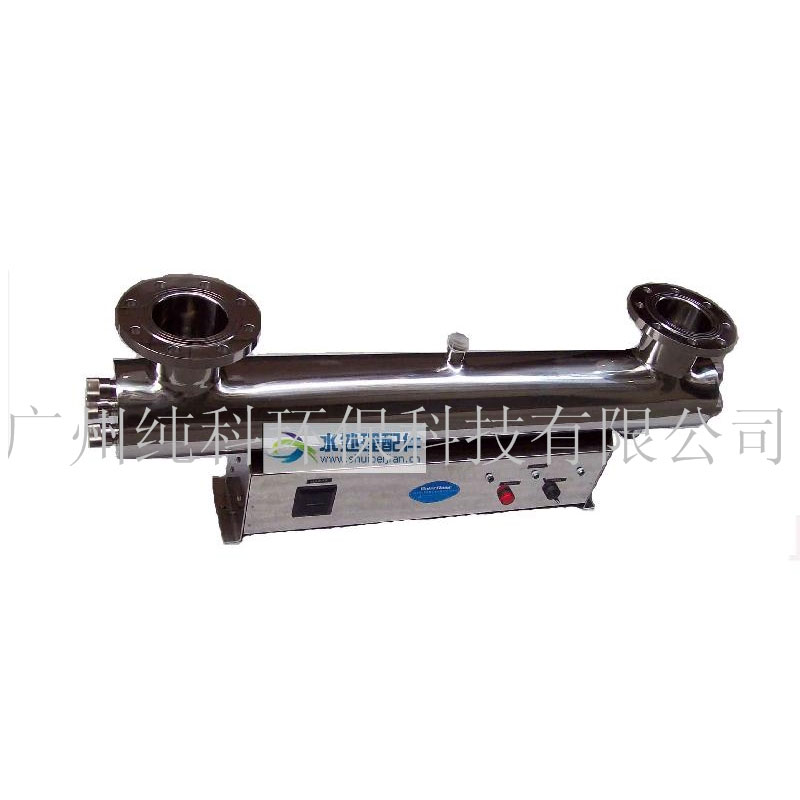

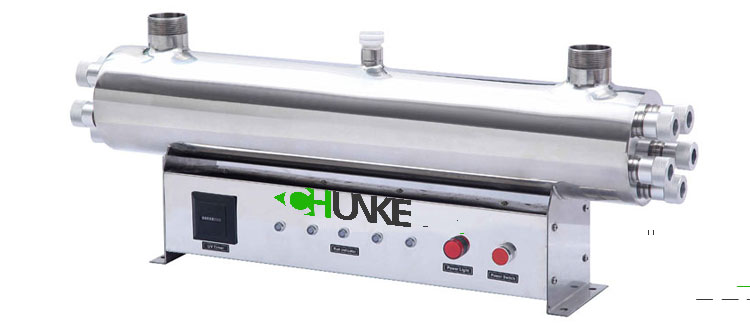

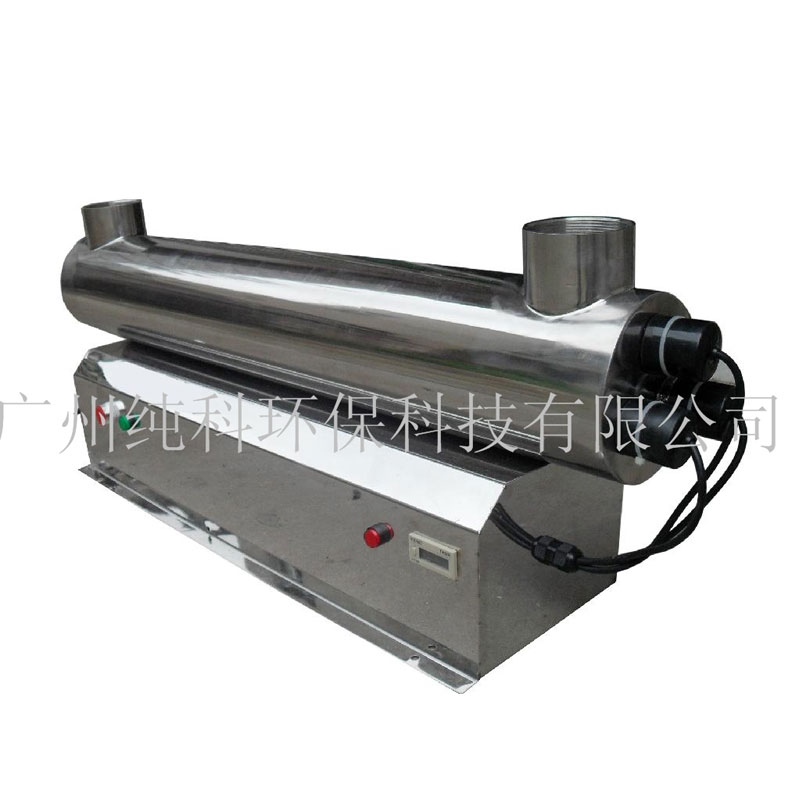

UV Sterilizer

(0 reviews)

Get Price

(125) Views

(0) Contacts

Contact Company

Guangzhou Chunke Environmental Technology Co. Ltd

Guangzhou, China

(1037) Views

(25) Contacts

The source of UV radiation is mercury vaporization; this phenomenon was discovered in 1835 and in 1901 the mercury vapor lamp was developed. The first application of UV for the disinfection of drinking water was in Marseilles, France in 1910; the system was not reliable due to its complicated technology and was not used since ozone came on the scene in Europe, along with chlorine in the United States.
Ultraviolet (UV)light represents a band of electromagnetic light in the 100–400nm range. UV Sterilizers or ultraviolet UV Disinfection is a non-chemical disinfectant process that uses a very short contact time (<5s). UV light is issued to break specific chemical bonds, sometimes by direct photolysis, but usually by the creation of highly reactive hydroxyl (OH-) radicals. Photolysis applications include dechlorination, de-ozonation, removal of TOC, and more recently countering the threats caused by endocrine disruptors and pharmaceutical compounds (both metabolized and un-metabolized).
Ultraviolet UV disinfection and UV sterilizers, for microbial destruction and water disinfection, 254 nm UV energy is used, whereas shorter (and more powerful wavelength) electromagnetic radiation, 185 nm UV energy, is used to reduce organic compounds and chlorine destruction. The energy of the UV sterilizer’s light beam is inversely proportional to the wavelength. Thus, 185 nm UV irradiation carries more energy and is more powerful than the 254 nm light; 185 nm energy oxidizes total oxidizable carbon (TOC) to form carbon dioxide and water. Most microorganisms are damaged at a UV irradiation dosage level of 10,000–30,000 μW-s/cm2, whereas the dosage level required for reducing ozone, chlorine, and TOC reduction is 90,000 μW-s/cm2. The UV sterilizer's size and futures are as below.
UV Sterilizers water disinfection models

Model	Flow	Power	Dimension	Inlet/Outlet size	MaxOperation Pressure
CK-UV005G	0.5GMP(0.1T/H)	8W	L250W48H65mm	1/4"	0.8Mpa
CK-UV01G	1GMP(0.2T/H)	10W	L290W60H80mm	1/4"	0.8Mpa
CK-UV02G	2GMP(0.5T/H)	14W	L370W60H85mm	1/2"	0.8Mpa
CK-UV04G	4GMP(1.0T/H)	17W	L450W73H110mm	1/2"	0.8Mpa
CK-UV06G	6GMP(1.3T/H)	23W	L520W73H110mm	3/4"	0.8Mpa
CK-UV08G	8GMP(1.8T/H)	28W	L650W73H110mm	3/4"	0.8Mpa
CK-UV12G	12GMP(2.7T/H)	40W	L950W73H110mm	1"	0.8Mpa
CK-UV15G	15GMP(3.5T/H)	80W	L950W73H110mm	1"	0.8Mpa
CK-UV3T	3T	40W*1	L950W125H250mm	1"	0.8Mpa
CK-UV4T	4T	80W*1	L950W125H250mm	1.2"	0.8Mpa
CK-UV5T	5T	40W*2	L950W138H280mm	1.2"	0.8Mpa
CK-UV6T	6T	40W*2	L950W140H280mm	1.5"	0.8Mpa
CK-UV8T	8T	40W*3	L950W160H310mm	2"	0.8Mpa
CK-UV10T	10T	80W*2	L950W180H310mm	2"	0.8Mpa
CK-UV12T	12T	40W*4	L950W215H335mm	2"	0.8Mpa
CK-UV15T	15T	40W*5	L950W215H335mm	2"	0.8Mpa
CK-UV20T	20T	80W*3	L950W215H385mm	2.5"	0.8Mpa
CK-UV25T	25T	80W*4	L950W275H465mm	2.5"	0.8Mpa
CK-UV30T	30T	120W*3	L1300W275H465mm	3"	0.8Mpa
CK-UV40T	40T	120W*4	L1300W275H465mm	3"	0.8Mpa
CK-UV50T	50T	120W*5	L1300W275H485mm	4"	0.8Mpa

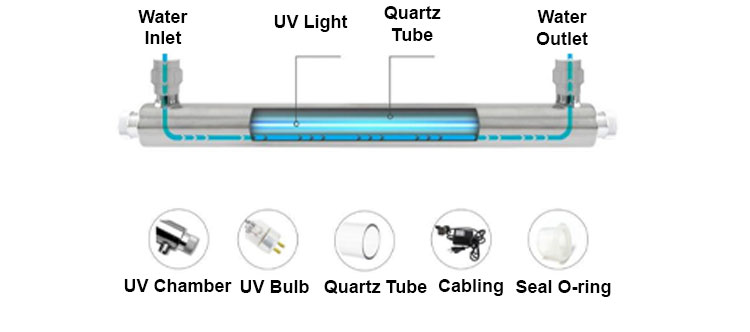

UV water disinfection or UV sterilizer systems generally consist of a reactor with a number of lamps that emit ultraviolet UV disinfection radiation. Each lamp is encased in a quartz tube. Ultraviolet UV Disinfection products are built to be cost-effective, simply installed, and tested to guarantee quality water to the highest degree.

Food
Beverage
Drinking water
Pharmaceutical industry
The water disinfection process is important to keep water contaminants.
