Online Total Copper Analyzer KTC600

(0 reviews)

(79) Views

(0) Contacts

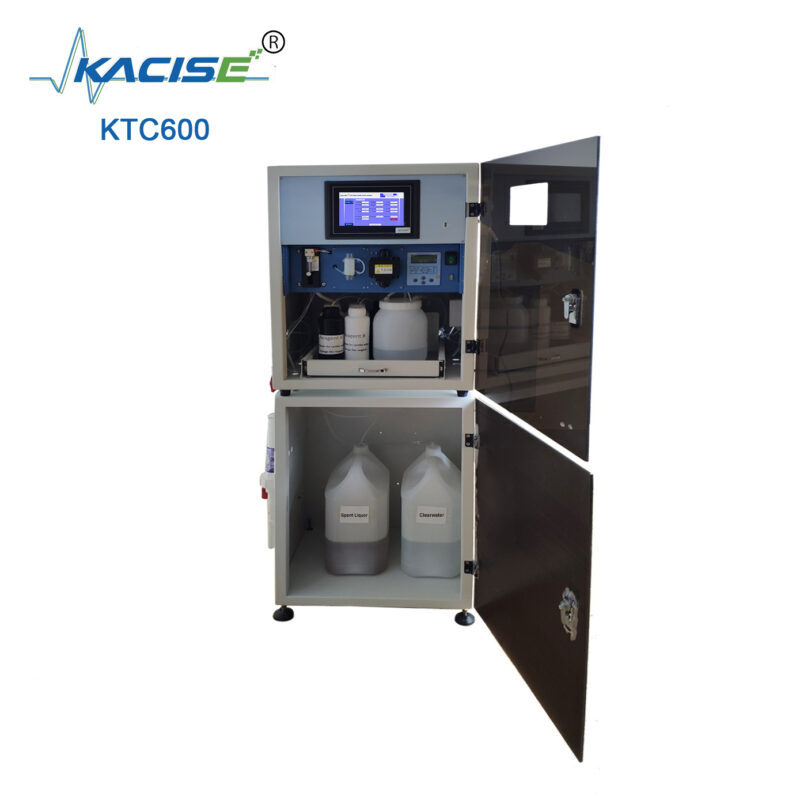

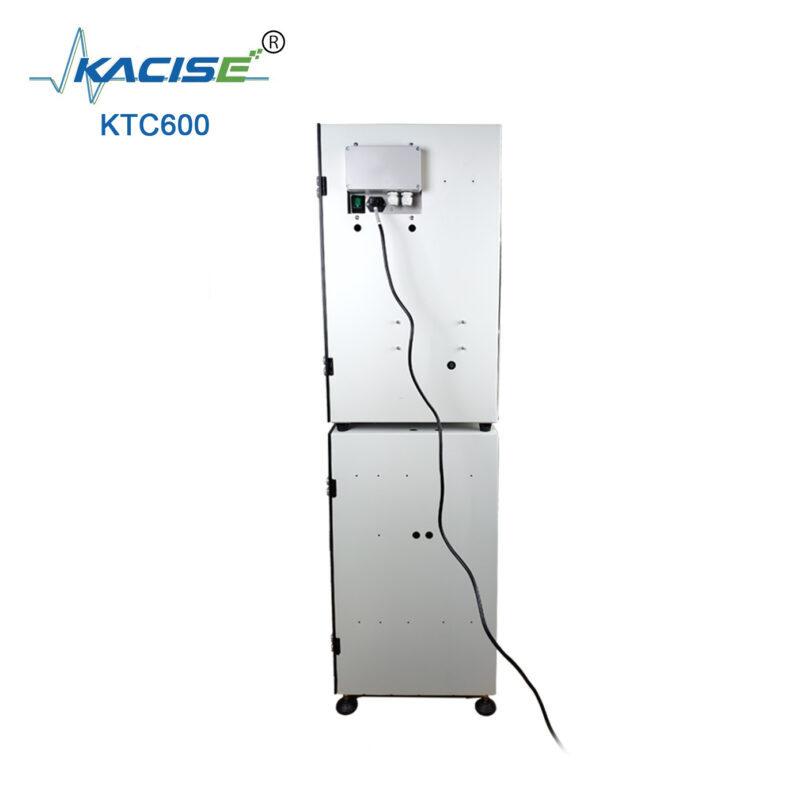

Online Total Copper Analyzer KTC600 is water quality monitoring equipment. Which is used to monitor the total content of Copper in water.

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(682) Views

(10) Contacts

Principle and Application of Total Copper Analyzer
Copper is an important metal that is widely used in many fields, such as alloys, dyes, pipes, wires, etc. Copper salts can inhibit the growth of plankton or algae in drinking water, a concentration of copper above 1MG/L produces a bitter taste. Therefore, China has put copper regulation as one of the indicators of total quantity control.
Principle: under the condition of high temperature, the water sample reacts with the digestion solution to form a copper ion, and the copper ion is reduced to a cuprous ion by a reducing agent. Under the neutral condition, cuprous ion reacts with the chromogenic agent to form a yellow complex, the absorbance of the complex is measured, and the total copper content in the water sample was obtained.

                                                            Model
                                                            KTC600

                                                            Monitoring Parameter
                                                            TCU

                                                            Method
                                                            Neopulaline spectrophotometric method

                                                            Range
                                                            (0-1) mg/L extensibility

                                                            Contour Dimension
                                                            505 * 395 * 671(mm)

                                                            Display unit
                                                            12232 dot matrix display, 7-inch LCD touch screen dual display

                                                            Measurement mode
                                                            Manual  measurement,     continuous    measurement,       periodic measurement, fixed-point measurement, automatic calibration measurement, standard solution verification

                                                            Measurement period
                                                            30 minutes to 24 hours, with adjustable expansion

                                                            Communication interface
                                                            4-20mA, RS232, RS485, dry contact

                                                            Zero Drift
                                                            ± 5% F.S

                                                            Range Drift
                                                            ± 5% F.S

                                                            Repeatability
                                                            ≤5%

                                                            Accuracy
                                                            ± 5%

                                                            MBTF
                                                            > 720 hours

                                                            Stored data
                                                            Five years of data storage

Monitoring of enterprise rainwater and sewage
Monitoring of total phosphorus in the municipal pipe network, pumping stations, groundwater, river water, lake water, and seawater.
