Stainless Steel RO Membrane Housing

(0 reviews)

(107) Views

(0) Contacts

Stainless steel membrane shell 4040/8040, high-pressure resistance, preferential price, factory direct delivery the stainless-steel membrane shell is the basic part of the sub-osmosis system. The material is made of 304 stainless steel seamless pipe. The stainless-steel membrane shell has 2.4 inches, 4 inches, 8 inches, and other sizes. The commonly used model of stainless-steel membrane shells is 4040. The first 40 is the membrane shell 4 inches in diameter and the second 40 is 40 inches in length.

Contact Company

Guangdong Stark Water Treatment Technology Co., Ltd.

Dongguan, China

(859) Views

(18) Contacts

                                                            Name
                                                            stainless steel membrane

                                                            shell Source
                                                            Manufacturer

                                                            Brand
                                                            Stark

                                                            Material
                                                            SUS304 stainless steel

                                                            Specifications
                                                            1 pack/2 packs/3 packs/4 packs

                                                            Withstand pressure
                                                            2.0~:2.5MPA/2.0~:4.0MPA

                                                            Water inlet method
                                                            water inlet at both ends, water inlet on both sides

RO Membrane Housing Applications

Stainless Steel Pressure Vessel Membrane Housings are used to house Reverse Osmosis (RO), Ultrafiltration (UF), Nanofiltration (NF), and Microfiltration (MF) membrane elements in water treatment systems for applications such as:

Restaurants
Aquariums
Whole House (Residential)
Office
Institutions
Hotels
Hospitals
Disaster Relief
Spot Free Rinse/Car Wash
Labs
Pharmaceutical
Humidification
Commercial Water Treatment
Misting
Manufacturing
Rinse Water
Bottled Water
Beverage&Food Processing
Wide Variety of Other Applications

Features of SS Pressure Vessel Membrane Housings for RO, UF, NF, MF Systems

300 PSI (20 Bar) Maximum Operating Pressure
U-Pin Style
End-Entry
1/8" FNPT Connections
316 Stainless Steel Body, PVC End Plugs, Stainless Steel U-Pins
For Direct Connection to STARK/Applied Membranes and DOW/FilmTec style membranes
Available for 13" and 26" length membrane elements
Easy to install and maintain.

Features of stainless-steel membrane housing:

The stainless-steel membrane shell is mainly made of 304 stainless steel seamless pipes.
The sealing methods include clamp type, flange type, and built-in type; the inside and outside of the product are polished, beautiful and practical, and the operating pressure meets the normal operating pressure requirements of the reverse osmosis system.
Stainless steel membrane shell 4040: Both ends are sealed with ABS head and silicone O-ring, with high sealing performance and long service life.

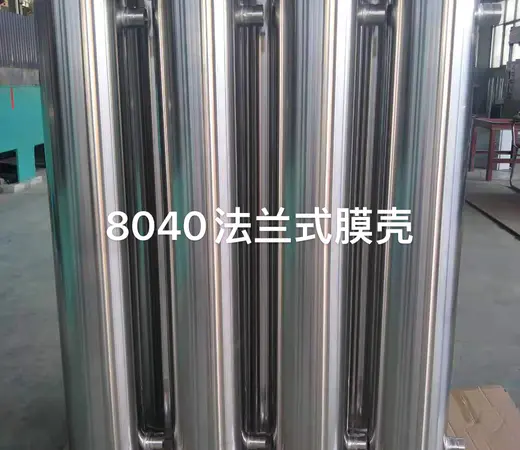

Stainless steel membrane shell 8040: separate ferrule type, end cover type, the main advantages are strong pressure resistance, high airtightness, clear and convenient installation.
High pressure resistance, long life
