High-Quality Customized 8 Inch RO Membrane Housing

(0 reviews)

Get Price

(118) Views

(0) Contacts

Contact Company

Guangdong Stark Water Treatment Technology Co., Ltd.

Dongguan, China

(859) Views

(18) Contacts

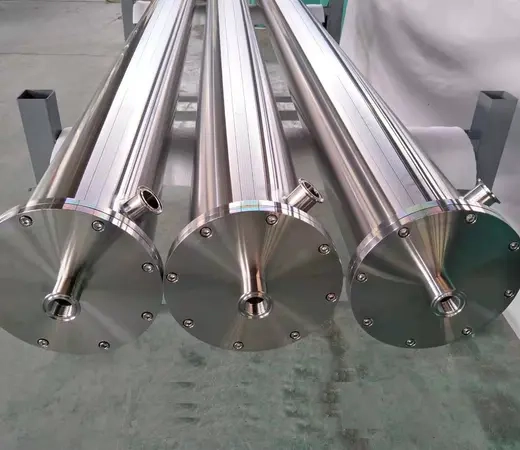

The stainless steel membrane housing is the basic component of reverse osmosis equipment. The material is made of 304 stainless steel seamless pipe. According to the sealing form of the end cover, it is divided into clamp type, flange type, and built-in type; according to the water inlet method, it is divided into: end inlet and side Enter. The length is matched with the number of reverse osmosis membrane components; the inside and outside of the product are polished, beautiful, and practical, and the working pressure meets the normal operating pressure requirements of the reverse osmosis system. Customized Membrane Housing

                                                            Pressure resistance
                                                            2.0～2.5MPa

                                                            Water inlet method
                                                            water inlet at both ends, water inlet at both sides

                                                            Structure
                                                            standard spare parts, convenient and quick to disassemble

                                                            Tightness
                                                            After pressure test

                                                            Organization structure at both ends
                                                            clamp type, card type, inner spring type.

                                                            Water inlet
                                                            3/4" internal thread

                                                            Outlet
                                                            1/2" internal thread

                                                            O-ring material
                                                            EPDM,with NFS certificate

                                                            Max working temperature
                                                            90℃

Performance characteristics Stainless Steel Membrane Housing

1. The 4040 membrane shell is divided into two types: seam and seamless. It is made of SUS304 stainless steel. Both ends are sealed with ABS heads and silicone O-rings, which have high sealing performance and long service life.

8040 membrane housing: divided into two types, card sleeve, and end cap type, made of SUS304 seamless stainless steel tube, good sealing performance, high-pressure resistance, no aging, easy installation and cleaning of the membrane, the working pressure (Mpa): 4.0.

The water inlet and outlet of the membrane shell can be in (out) or side in (out) according to customer requirements. Stainless steel membrane shells are 2.5 inches, 4 inches, 8 inches, etc.,

The 1.4-inch RO membrane shell has a series of 1 core, 2 cores, 3 cores, and 4 cores.

2. Membrane shell tubes are divided into two types: seam tubes and seamless tubes.

3. There are two ways to connect the water inlet and outlet: side inlet and end outlet and end inlet and end outlet; the specifications are 6 points x 4 points and 4 points x 4 points.

4. The material of the head includes ABS and stainless steel.
