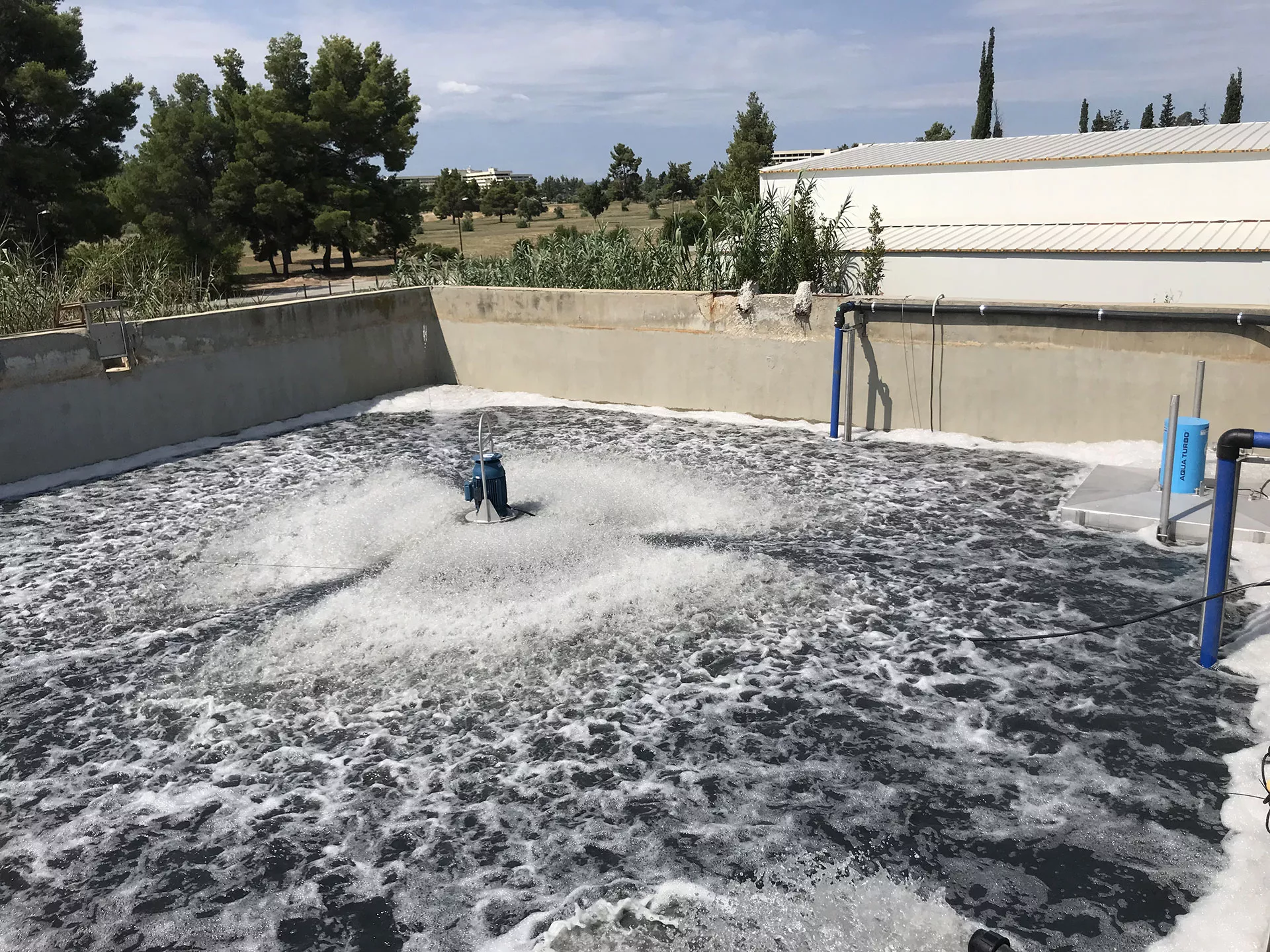

The Aquaturbo AER-AS is a high-speed floating mechanical aerator. It consists of a highly efficient ambient-operated motor customized to Aquaturbo wet environment operating standards. The unit is constructed from stainless steel and consists of a one-piece float, a suction cone, and a two-flight Archimedes style Screwpeller®. The Screwpeller® generates a flat and large-diameter spray pattern maximizing the air-water contact zone. The AER-AS is easily adaptable to nearly any basin configuration. With a lengthened intake cone section, the AER-AS can penetrate water depths up to 8 m. This allows the unit to draw activated sludge of low oxygen concentration from the bottom of the basin to be transformed into an oxygen-rich surface discharge. Easy to install, robust, and reliable, the Aquaturbo AER-AS ensures efficient aeration and mixing for years of maintenance-free service.
COMPONENTS of Floating Surface Aerator

High-efficiency motor
Float
Screwpeller®
Adaptable depth suction cone
Anti-vortex and stabilization cross
Protection and lifting motor bracket
Soft-edge liner base
Large stabilisation cross
100% Stainless steel construction
Anti-erosion plate
Anti-vortex Vanes

OPTIONS of Floating Surface Aerator

Stainless steel construction 304L/316L
Lifting hooks or lifting shackles
Low discharge deflector plate
Screwpeller®
Cables, springs, vertical guide tubes with delta frame, or articulated mooring arm.
Shortened or extended cross cone
Open cone for channel applications
Anti-erosion protection plate
Curved round tube for basin liner protection
Tropicalized motor windings
Inverter duty motor for use with VSD/VFD drives
The motor paint scheme and custom colors
Automatic motor lubrication system
Intelligent connected sensor

VARIOUS DRAFTS OPTIONS FOR SUCTION CONES of Floating Surface Aerator
mIN drafts – STD draft – MAX draft
Each Aquaturbo AER-AS surface aerator has a standard path suction cone with an associated min and max water level range.
The draft can be reduced or extended within the operational limits of each model. Optimum mixing and oxygen transfer are achieved when the correct draft is selected to suit the water level.

ADVANTAGES of Floating Surface Aerator

Extended range from 1.1 to 160KW
High-performance Screwpeller®
Intensive mixing and exceptional oxygen dispersion
Flat spray – low aerosol and high influence diametre
100% Stainless steel construction
UV resistance
High corrosion resistance
Without civil engineering, simple, fast, and non-stop installation of the process
The cooling effect of the effluent
Versatile design
Adapted to fluctuating water levels with cables & springs, mooring arms, or vertical guide posts with delta frame
Suitable for basin depths from 63cm to 8cm
Robust and reliable design with low maintenance
Premium motor with IP56 rating
Direct drive (few moving parts = low maintenance)
Screwpeller® technology minimizes vibration and stresses on the motor bearings
Few wearing parts
Long life standing
Available for rent
CONSTRUCTION
IP56 epoxy-coated steel surface motor to standard Aquaturbo
Available from 1.1kW to 160kW at 50Hz (750, 1000, 1500 rpm)
or 60Hz (900, 1200, 1800 rpm)
All stainless-steel construction
One piece float
Motor support
Screwpeller® – Archimedes 2 flight impeller design
Intake and stabilization cone
Lifting rings
Mooring rings
