Multimedia filter
Multi-media filter is a process in which one or several filter media are used to pass water with high turbidity through a certain thickness of granular or non-granular material under a certain pressure, thereby effectively removing suspended chromatin and clarifying the water. The filter media are quartz sand, anthracite, manganese sand, etc., which are mainly used for water treatment and degreasing, softened water, pre-treatment of pure water, etc. The turbidity of the effluent can reach below 3 degrees.

Equipment performance

Simple structure:
It is mainly composed of the following parts: supporting pipelines and valves, in which the filter body also includes: simplified, backwash gas pipe, etc.
Effect:
Remove impurities such as mud, suspended solids, colloids, and algae in the water, and reduce mechanical damage.
Wide range of applications:
Pre-filtration of raw water for power generation, chemical industry, papermaking, beverages, etc.

Working principle

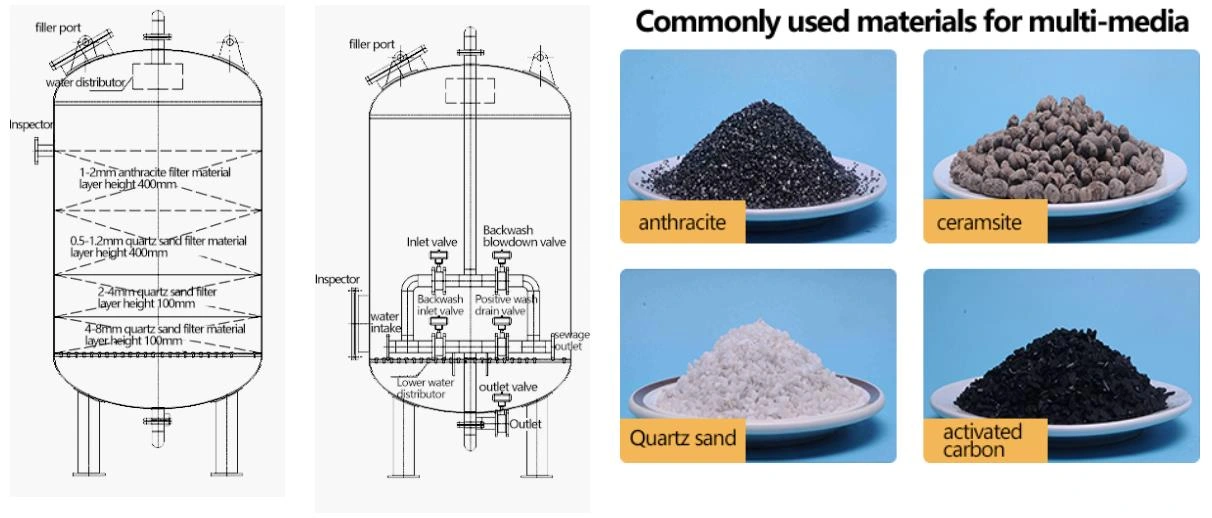

A multi-media filter (also known as a mechanical filter) is a typical multi-media filter based on a bed of layered anthracite, sand, finely divided garnet, or other materials. The top layer of the bed consists of the lightest and coarsest grades of material, while the heaviest and finest grades of material are placed in the lower part of the bed. The principle is depth filtration - the larger particles in the water are removed in the top layer and the smaller particles are removed in the deeper layers of the filter medium. So that the water quality reaches the standard after coarse filtration. The equipment is pressure type, the principle is: when the raw water passes through the filter material from top to bottom, the suspended solids in the water are trapped by the surface of the filter layer due to adsorption and mechanical resistance; when the water flows into the middle of the filter layer, due to the filter material layer The sand particles in the water are arranged more closely, so that the particles in the water have more chances to collide with the sand particles, so the flocs, suspended solids and the surface of the sand particles in the water adhere to each other, and the impurities in the water are trapped in the filter material layer, thereby obtaining clarified water quality. The filtered effluent suspension can be below 5 mg/L.

                                                            Control mode
                                                            manual control, automatic control (time control)

                                                            Tank material
                                                            Q235B, 304, 316L, carbon steel rubber lining.

                                                            Water cap material
                                                            ABS, 304, 316L

                                                            Filtration speed
                                                            10-20m/h

                                                            Backwashing method
                                                            water washing, or gas-water combined backwashing

                                                            Working pressure
                                                            ≤0.6MPa

                                                            The pressure difference between inlet and outlet
                                                            0.02-0.05MPa

                                                            Load power
                                                            24W/1A

                                                            Flow per unit
                                                            0.5m3/h~ 180m3/h

                                                            Influent turbidity
                                                            < 20FTU

                                                            Effluent turbidity
                                                            < 3FTU

Application
Cooling water treatment, raw water treatment, paper industry, irrigation industry, industrial circulating water, food processing, paper industry, electric sewage, urban tap water, etc.

Equipment advantages
The equipment is mainly composed of a tank body, water distribution system, water collection system, filter material layer, partition (plate) water cap, supporting layer, internal supporting pipelines, etc. Main pipeline and its matching control valve, pressure gauge, sampling valve, etc.
Quartz sand and anthracite are used as filter materials for pressure filtration.

The features are as follows:
a. Large filtration area, a large amount of treated water, good operation effect, and low cost of packing;
b. Double filter material is adopted to reduce running resistance;
c.The filter material is corrosion-resistant, has high porosity, has the largest dirt-carrying capacity, moderate density, and is easy to backwash;
d. The main material of the filter:

1. Stainless steel 304, stainless steel 316, Q235 carbon steel, Q235 carbon steel lining, the water treatment capacity of a single unit is 0.5~200T/h
e. Strong interception ability, small water loss, and good filtration effect
