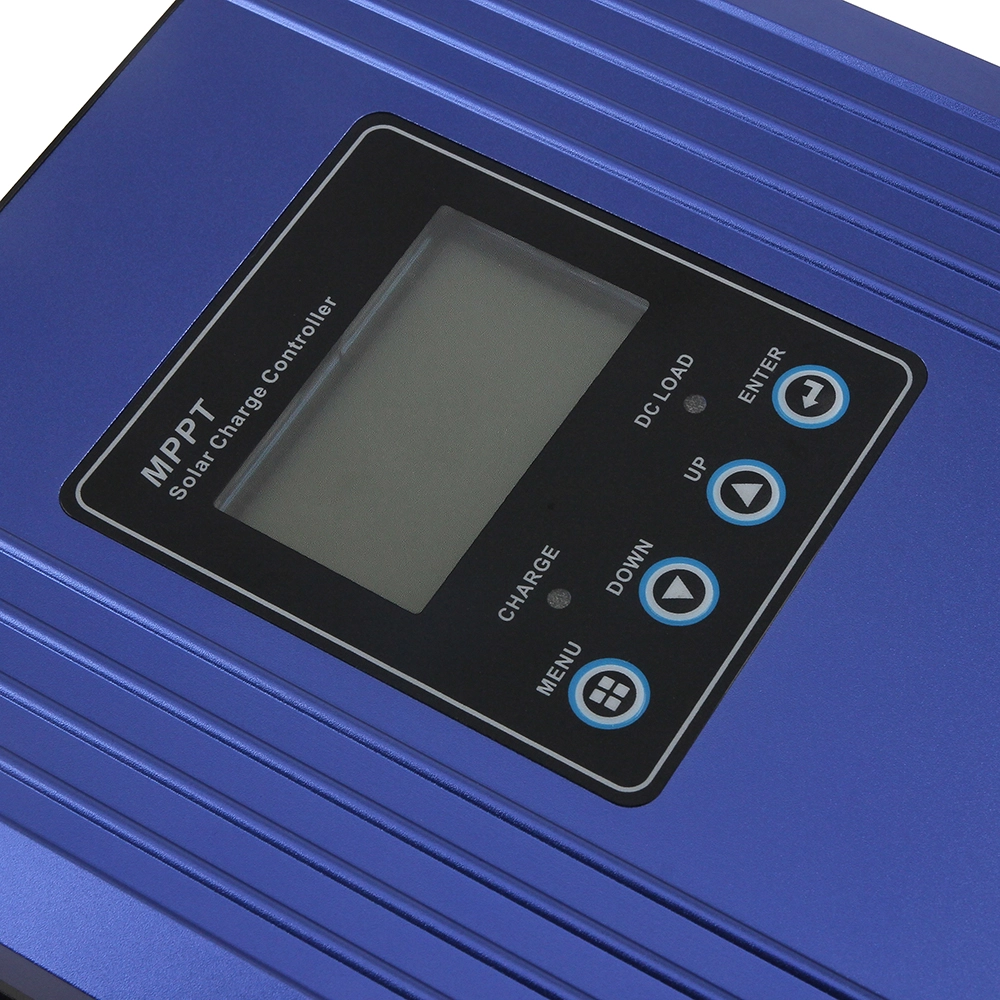

80A/96V Mppt Solar Controller

(0 reviews)

Get Price

(395) Views

(0) Contacts

Contact Company

Foshan Nanhai Senhu Optoelectronics Technology Co., Ltd

Guangdong, China

(1370) Views

(2) Contacts

                                                            Model
                                                            CS-80A

                                                            Net Weight
                                                            5.8kg

                                                            Packing Size
                                                            410mm×280mm×190mm

                                                            Gross Weight
                                                            6.5kg

                                                            Product Size
                                                            322mm×242mm×117mm

                                                            Rated Current
                                                            80Amp

                                                            Type
                                                            MPPT

                                                            Maximum Wire Diameter
                                                            35mm2

                                                            Mode of Control
                                                            Normally Open/Off, Light Control, Time Control

                                                            Efficiency
                                                            99.5%

                                                            Loss without Load
                                                            ≤ 3W

                                                            Load Voltage
                                                            Same as battery voltage

                                                            System Voltage
                                                            48V/96V auto recognition, 60V/72V manual setting

                                                            Cooling Method
                                                            Fan cooling, the fan speed is adjusted by temperature. The fan runs slowly or stop when the internal temperature is low.

                                                            Input Max. PV Input Open Circuite Voltage (VOC)
                                                            250Vdc

                                                            Charging Method
                                                            3-stages (constant current, constant voltage, float charging)

                                                            Input Low Voltage Protection Point
                                                            48V: 60Vdc     60V: 75Vdc     72V: 90Vdc     96V: 120Vdc

                                                            Rated Current
                                                            80A

                                                            Start Charging Voltage Point
                                                            48V: 65Vdc     60V: 80Vdc     72V: 98Vdc     96V: 130Vdc

                                                            Input Overvoltage Protection Point
                                                            250Vdc

                                                            Max. PV Input Power 48V System
                                                            4250W

                                                            Max. PV Input Power60V System
                                                            5300W

                                                            Max. PV Input Power72V System
                                                            6400W

                                                            Max. PV Input Power 96V System
                                                            8500W

                                                            Applicable Battery Type
                                                            Lead acid battery, lithium battery or custom

                                                            Display
                                                            HD LCD display

                                                            IP Protection Level
                                                            IP21

                                                            Communication
                                                            RS485 (Optional)

                                                            Storage Temperature
                                                            -40℃~+70℃

                                                            Protection
                                                            Input, output overvoltage & undervoltage protection, anti-reverse, overcharge, short circuit protection, etc.

                                                            Working Temperature
                                                            -20℃~+50℃

Characteristics of Mppt Solar Controller

Efficient MPPT controller algorithm, MPPT efficiency is greater than 99.5%, and overall machine conversion efficiency is greater than 98%;
Charging method: 3-stage charging (constant current, constant voltage, float charging), which can significantly improve battery life.
Loading Modes: Normally Open/Off, Light Control, and Time Control. Automatic recognition of 12V/24V/48V battery voltages;
The user can select between charging common batteries (sealed lead-acid batteries, lead-acid gel batteries, open lead-acid batteries, and lithium batteries) and customizing parameters to charge different types of batteries.
When the power of the solar panel is too high, the controller automatically maintains the charging power, and the charging current does not exceed the rated value.
With an HD LCD display, you may see device operating statistics and status, as well as modify the controller display options.
Customers' unified integrated management and secondary development can be facilitated using RS485 communication protocol.
