Why go with an ECT diffuser?
To provide the wastewater market with a high-quality tube diffuser at a reasonable cost, SSI created the ECT tube diffuser. A traditional 360-degree diffuser's bottom portion is dormant at low airflow rates. A higher SOTE rate is achieved by using an ECT diffuser, which operates similarly to a panel diffuser.
Way of Installation of Tube Type Diffuser

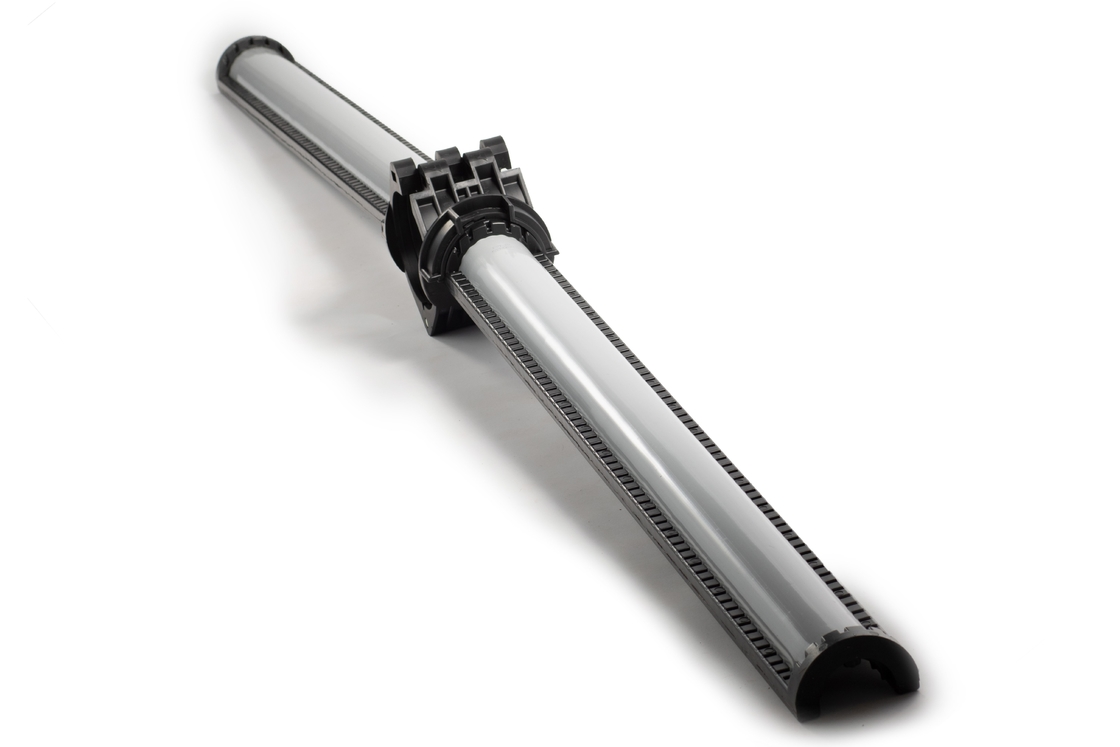

With a special saddle connection, ECT Tube Aerators can be installed on stainless steel or PVC stubs.
The overall efficiency is decreased on the left by a typical tubular diffuser with coalescence bubbles at the bottom.The new ECT70, whose maximum efficiency is guaranteed, is on the right.
Distinctive System Strength of Tube Type Diffuser
PTFE membranes with patents increase efficiency and lower lifetime costs.
In addition to lowering plasticizer extraction, shrinking, and membrane hardening, SSI's unique PTFE membrane barrier qualities also restrict dynamic alterations like creep that may arise from swell. The life of a product's DWP (Headloss) values is improved by PTFE-coated membranes as opposed to uncoated products, which are more prone to increases in DWP because of more aggressive fouling, changes in physical characteristics, and weight fluctuations.
This has an immediate effect on the system's ability to distribute air evenly throughout the tank floor and long-term power costs.

                                                            Place of Origin
                                                            South Korea

                                                            Brand Name
                                                            SSI

                                                            Certification
                                                            ISO

                                                            Model Number
                                                            ECT-P

                                                            Color
                                                            White

                                                            Material
                                                            PTFE

                                                            Tube Length
                                                            1000mm

                                                            Tube Diameter
                                                            70mm

                                                            Connection Type
                                                            PVC Or Stainless Steels

                                                            Tube Service LIfe
                                                            ≥5years

The benefits of Tube Type Diffuser

Using a single mold lowers expenses.

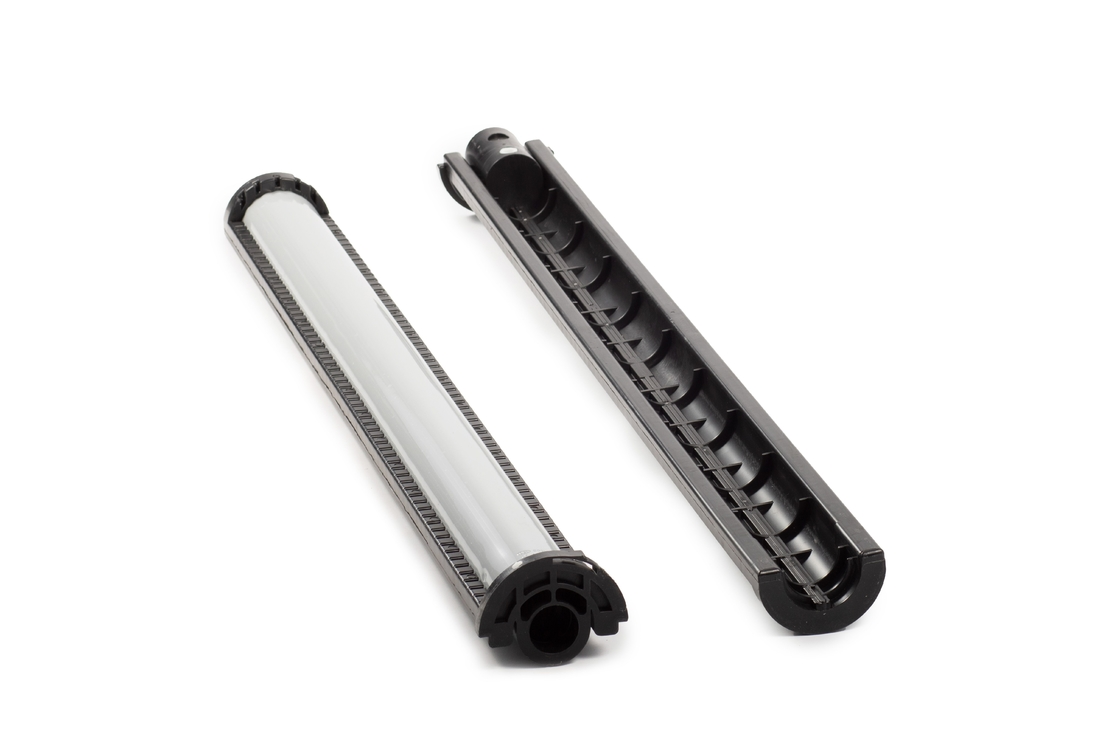

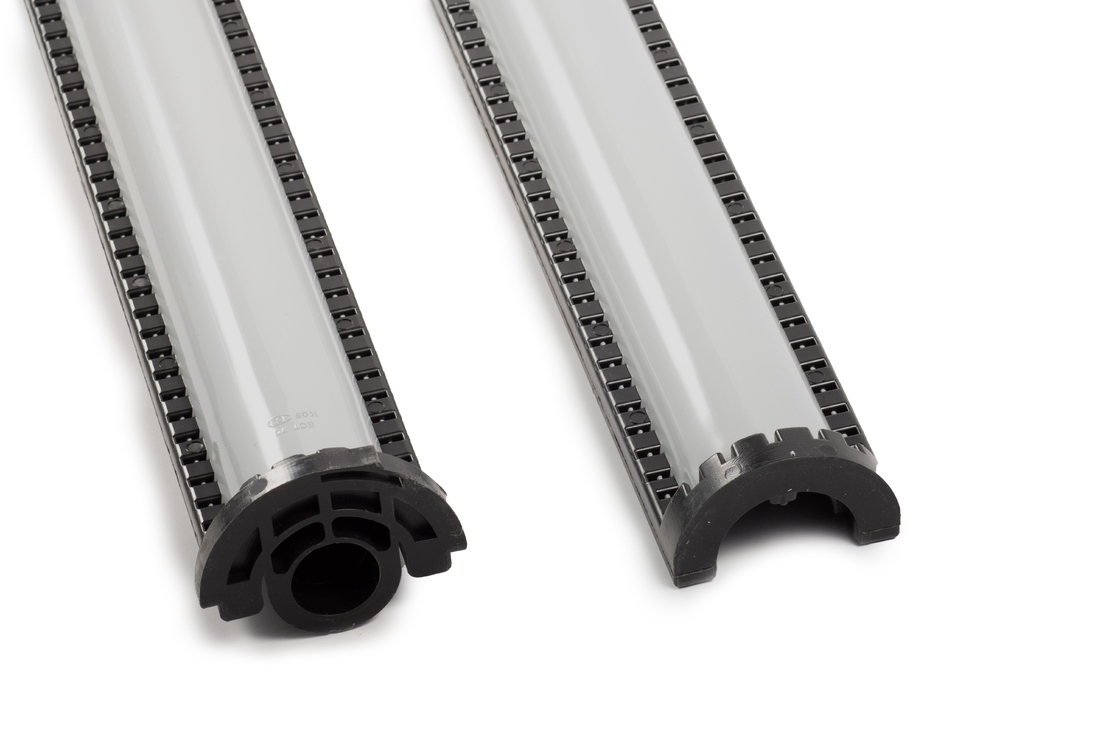

Revolutionary "half moon" shape to lessen the tubular diffuser-typical coalescence phenomenon.
High efficiency (SOTE up to 8% / m) and low pressure drops in tests conducted in compliance with ASCE guidelines.
Environmentally friendly, high-resistance polypropylene body (100°C).
Membrane with minimal plasticizer content to lessen elasticity loss and shrinkage.
Connects using a 4" saddle (set) or a 3/4" F NPT connection.
Economical substitute for conventional tubes.
