One of the major advantages of stretch blow molding is the ability to stretch the preform in both the hoop direction and the axial direction.
This biaxial stretching of material increases the tensile strength, barrier properties, drop impact, clarity, and top load in the container.
With these increases it is usually possible to reduce the overall weight in a container by 10 to 15 percent less then when producing a container in another way.
Two-stage stretch blow molding is the same as single-stage, except the preforms are already made.
The single-stage process is usually done using one machine, where the two-stage process uses preforms that have already been made and cooled.
This allows companies to either make or buy their own preforms.
Because of the relatively high cost of molding and RHB equipment, this is the best technique for producing high volume items such as carbonated beverage bottles.
In this process, the machinery injection molds a preform, which is then transferred within the machine to another station where it is blown and then ejected from the machine. This type of machinery is generally called injection stretch blow molding (ISBM) and usually requires large runs to justify the very large expense for the injection molds to create the preform and then the blow molds to finish the blowing of the container.
This process is used for extremely high volume runs of items such as wide mouth peanut butter jars, narrow mouth water bottles, liquor bottles etc.
TIE adopts advanced modular design and can freely combine each standard module to provide customers with professional solutions.

                                                            Brand Name
                                                            TIE

                                                            Voltage
                                                            380V and customizable

                                                            Capacity
                                                            2,500 - 14,000 BPH

                                                            Place of Origin
                                                            Jiangsu, China

                                                            Advantages
                                                            Low Energy Consumption

                                                            Product name

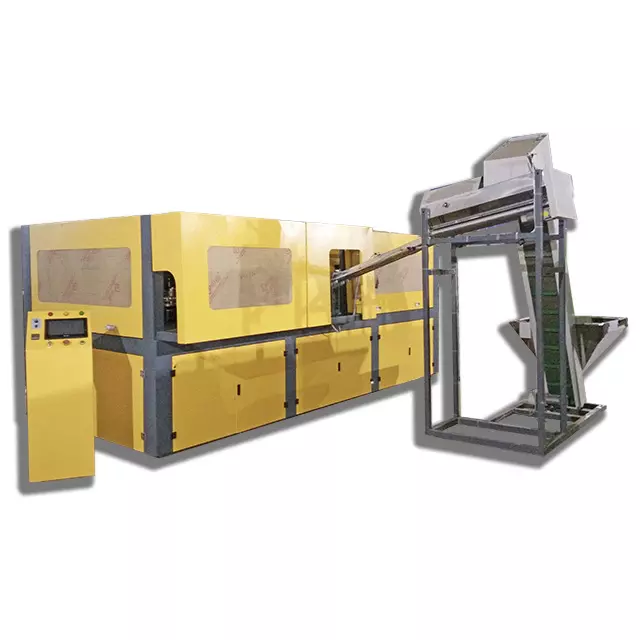

                                                            Automatic Blowing Molding Machine

                                                            Capacity
                                                            2,500 - 14,000 BPH

                                                            Weight (KG)
                                                            4000 KG

                                                            Application
                                                            PET bottle
