Bottled Water Filling Equipment

(0 reviews)

14500 USD

(323) Views

(0) Contacts

category: Filling Machines

>= 1 units
$14,500.00

Contact Company

Jiangmen Tings Drinking Water Equipment Co., Ltd.

Guangdong, China

(831) Views

(6) Contacts

Features:

It is designed with a hanging-type bottle conveying structure which makes the conveying of the bottles more convenient, faster, and easier.
Its main machine is equipped with advanced PLC control and key electric elements from an internationally famous brand.

Advantage:
1. Safe contact between water and machine:
We use national standard stainless steel 304/316, Nickel content ≥8%.
2. High efficiency: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: servomotors reduce power consumption
4. Sanitary improved by liquid volume control and non-contact filling
5. Automatic bottle replacement improves run time.
Machine details:
Air Conveyor
- Air conveyor is fixed on the floor, with the fan installed on the top.
- Air filter is positioned at every entrance of the air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into the filling machine by blowing power.
- Made of stainless steel 304/316.
- High-quality carbon steel welded rack and frame
Bottle Washing
- The washing table connects to the air conveyor directly, which makes the working environment much cleaner.
- All 304/316 stainless steel nozzle, water inject design, high injecting accuracy, save water.
- 304/316 Stainless steel plier, high washing accuracy ensure no bottle falling during the washing process.
- 304/316 stainless steel washing pump, durable and clean

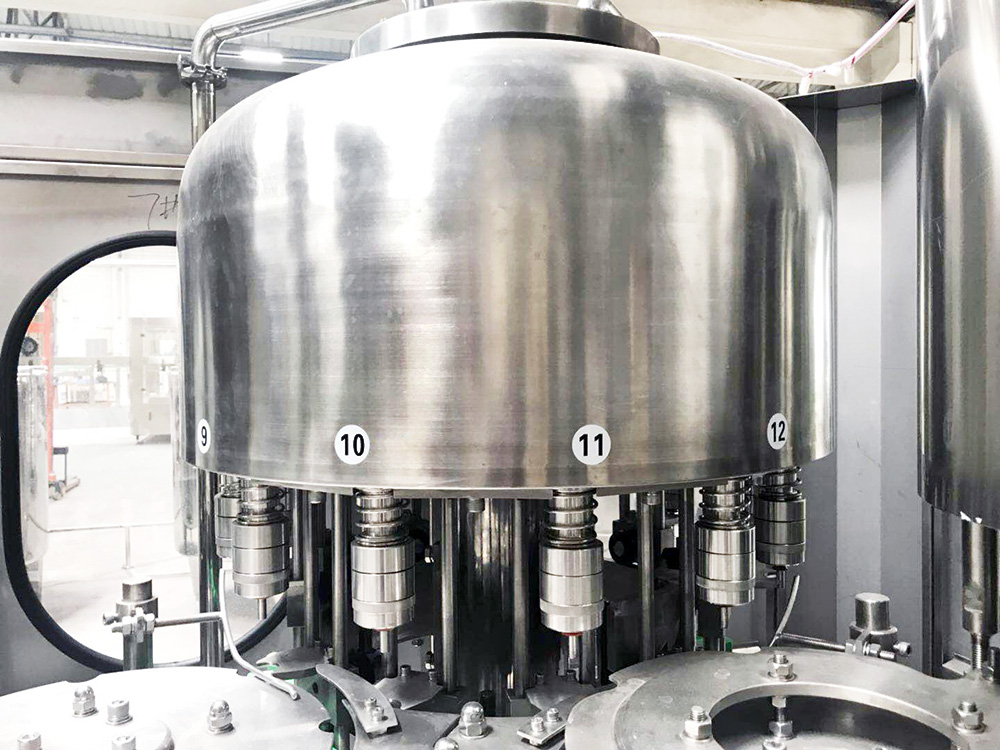

Bottle Filling
- 304/316 Stainless steel high accuracy filling nozzle
- Filling volume adjustable, all bottles with same liquid volume after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no welding spot, easy to clean
- 304/316 stainless steel filling pump
- High accuracy inject nozzle, save water

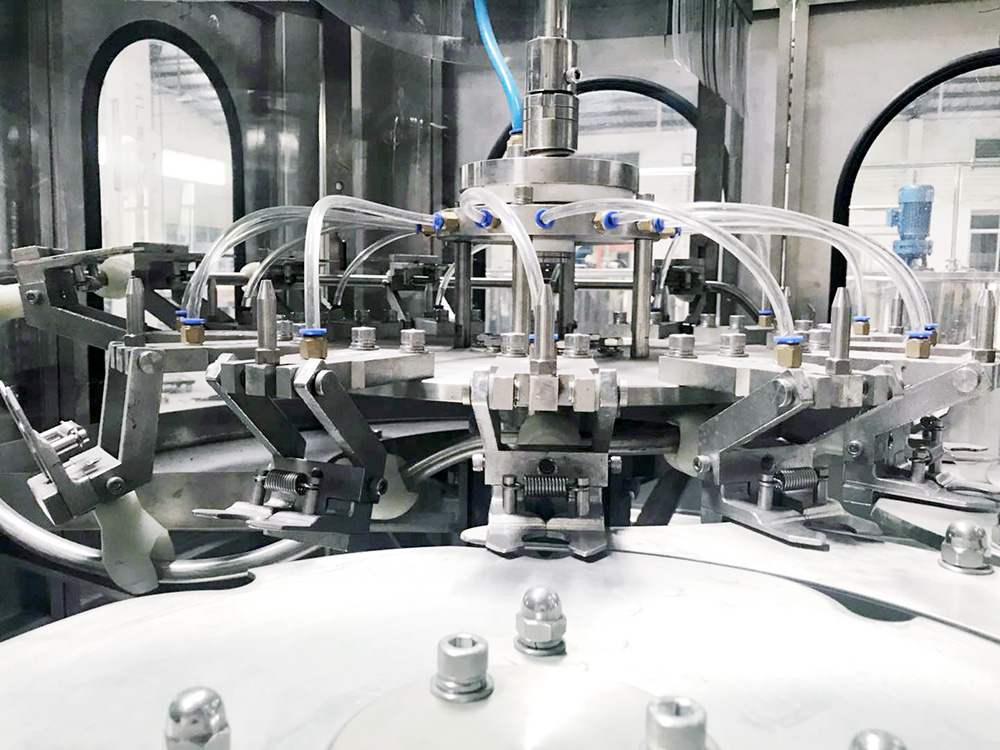

Bottle Capping
- Electromagnetic capping heads, minimize the bottle falling during the capping process
- All 304/316 stainless steel construction
- High capping accuracy, no cap missing
- Automatic stop when there are insufficient bottles
- Stable and reliable capping process, Defective rate ≤0.2%

                                                            Type
                                                            Filling Machine, Filling machine

                                                            Packaging Type
                                                            Barrel, Bottles

                                                            Automatic Grade
                                                            Automatic, Automatic

                                                            Voltage
                                                            380 V 50HZ

                                                            Driven Type
                                                            Pneumatic

                                                            Dimension(L*W*H)
                                                            2670*530*1520

                                                            Filling Accuracy
                                                            99.8%

                                                            Weight
                                                            252 KG

                                                            Warranty
                                                            1 Year

                                                            Key Selling Points
                                                            Easy to Operate

                                                            Filling Material
                                                            Beer, Milk, Water, Oil, Juice

                                                            Machinery Capacity
                                                            6000BPH, 9000BPH

                                                            Warranty of core components
                                                            1 Year

                                                            Core Components
                                                            Motor, PLC

                                                            Certification
                                                            CE

                                                            Washing machine
                                                            Filling machine

                                                            Washing
                                                            capping

                                                            Outer dimension
                                                            2670*530*1520

                                                            Bottle filling capacity
                                                            100 buckets/h

Non-carbonated drinks, such as mineral water, pure water, and so on. It is designed for shortening the contact time between drink material and outside, so as to improve the sanitation condition of the water production and increase the economic benefit.
