Method of installation (burial tanks) of fiberglass tanks:
Keep 30 cm of clean sand bedding material between the concrete pad and the tank, and leave a 15 centimeter concrete pad below the tank. Give the pit's walls at least 40 to 45 centimeters between the tank and them. When arranging cabinets end to end or side by side, allow 45 cm between each one.
The following list of environmental factors makes ordinary fiberglass tank installations unsuitable:
Obtain written consent from a MARJAN official if these criteria need to be given more thought or care, or if there are unusual requirements; otherwise, your guarantee can be nullified. Please get in touch with MARJAN SALESMAN if you have any queries or concerns regarding the suggested installation location.

A soil is considered unstable if its cohesiveness value is less than 225 kg/sq ft, or if its bearing capacity is less than 900 kg/sq ft.
locations that are thought to be totally submerged in water during the rainy season.
wetlands, tidal marshes, and areas close to water bodies.
any type of landfill site.
Wet holes: when drilling, water is discovered.
Both hydro-expansive soil and hydro-active complex soil (hydro-expansive bentonite).
Possible floodplains near the edges of rivers, lakes, or streams.
Storing hot water that is more than 150°F (from sources including geothermal springs, process cooling water, and solar thermal systems).

Using the newest manufacturing equipment, Marjan Factory Company is regarded as one of the largest manufacturers of fiberglass tanks in the Kingdom. These tanks come in a variety of sizes and applications (both above and below ground), and are subject to quality control before, during, and after the manufacturing process to prevent any issues or defects. Our business now holds an ISO (9001:2015) certificate.
Fiberglass tank types include:

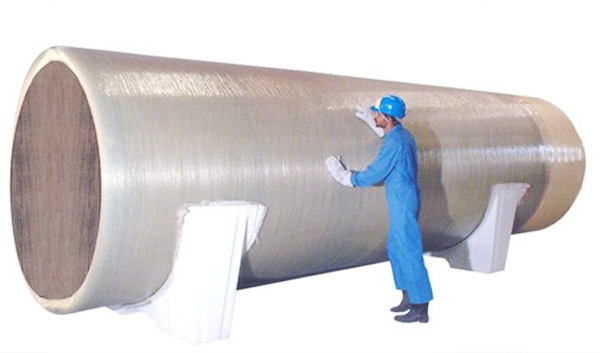

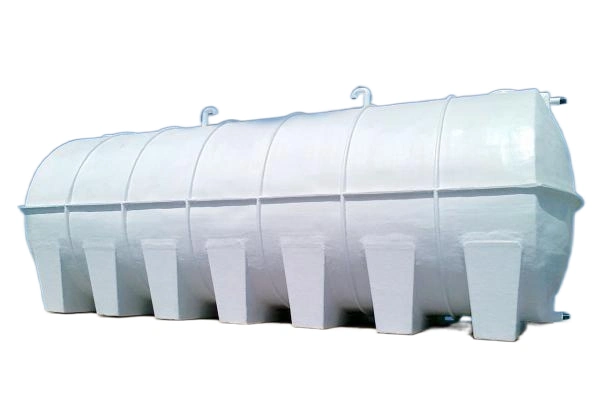

horizontal tanks, both subterranean and above ground

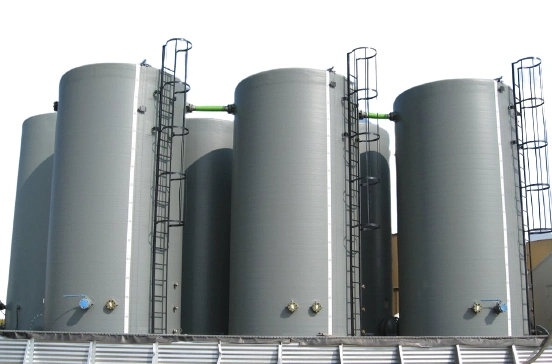

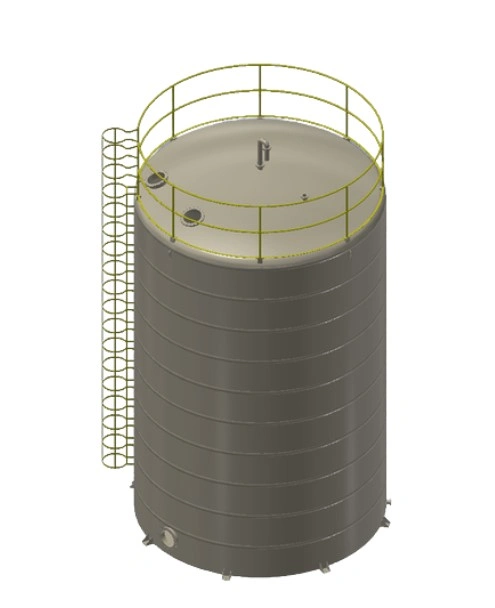

tanks that are vertical

Production process:

Marjan water tanks are made using the most recent global technological techniques to design tanks from one piece without joints, giving the tank strength, durability, and an extended performance period. They also use the most recent testing techniques to test molds and tanks both before and after production, and they cover their underground tanks with an anti-foam layer.

Applications of fiberglass tanks:

Water storage: The integrity of the water within fiberglass tanks is guaranteed by the caliber of the materials used in their construction. In addition to preventing water leaks outside the tank, high-quality production and the application of quality standards also prevent the growth of germs, algae, and bad odors.
Storage of Sewage: Fiberglass tanks are utilized for the storage of industrial and sewage wastes since the wastes do not react with the tank body, causing materials outside the tank body to leak.
Fuel storage: This is one of the types of tanks that needs to be manufactured with extreme precision and attention to detail. This includes the design of the tank body and the placement of all of the openings. The installation of the tank must also be done under the supervision of specialized technicians who are qualified and trained to work with this kind of tank in order to guarantee the installation's quality and reduce the possibility of leaks or breaks.
Storage of chemicals: Chemical tanks are manufactured and installed with the same level of sensitivity and precision as their predecessors. They frequently vary in size, yet, since they are frequently smaller, they require greater accuracy. Major public and private companies and institutions witness our distinction in this industry—the more intricate the nuances, the more demanding the requirement for experience and skill.

Characteristics and Requirements of Fiberglass Tanks:

25-year warranty
For tanks that are vertical, horizontal, or above ground, custom manufacturing and dimensions are needed.
Its engineering endurance comes from its proportions, which can hold up to 200 thousand liters in a single piece.
does not need internal insulation and is resistant to bacteria and algae.
high capacities, resilience to challenging circumstances and meteorological elements, and durability
Customization and accessory additions, like ladders, apertures, and covers, are possible upon request.
It is employed for the storage of complicated chemicals, sewage, fresh water, and petroleum products.
Because it has a maintenance aperture and doesn't need the tank to be removed from the installation place, maintenance is simple.
