Distribution Boards (MDB)

(0 reviews)

Get Price

(522) Views

(0) Contacts

Contact Company

ERCON GROUP

Riyadh, Saudi Arabia

(1674) Views

(15) Contacts

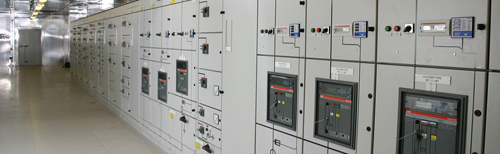

Power distribution is a system that transmits electrical energy via branches to the precise end user. It consists of a Main Distribution Board (MDB), Sub Main Distribution Boards (SMDBs), and Final Distribution Boards. A specific range of switchboards is required for the infrastructure market. whereby each step of the building, installing, and maintaining processes adds to the project's profitability. A steady and secure electrical supply is necessary for this kind of installation. Our collection of solutions under main distribution boards is the right solution for such applications.

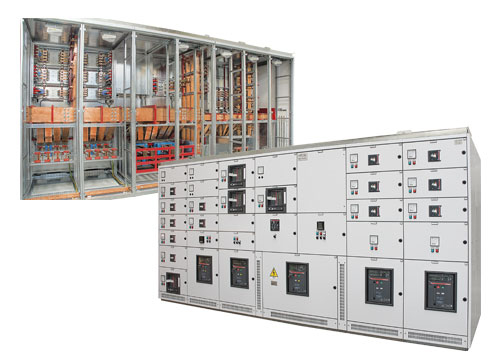

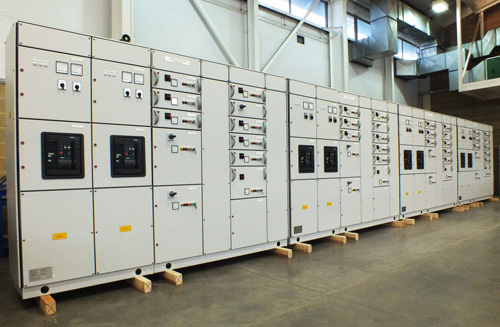

An MDB is a panel or enclosure that holds the fuses, circuit breakers, and ground leakage protection devices where the electrical energy, which is utilized to distribute electrical power to numerous individual circuits or consumer points, is taken in from the transformer or an upstream panel. Depending on the needs of the client, an MDB may have one or more incoming power sources, main circuit breakers, residual current, and earth leakage protection devices. An MDB is made of a freestanding enclosure, a bus bar system, MCCBs, metering and support equipment, and needed current transformers. Panels are put together in sections, such as the entering and exiting sections, in a methodical manner.

Type-tested assemblies in accordance with IEC 61439-2.
6300A maximum rating.
Maximum rated working voltage of 690V.
Fit for both external and inside installation (weatherproof with canopy).
intended for both fixed and withdrawable versions of building.
sufficient distance between cables going in and coming out.
Cable entrance from the top and bottom.
panels for rear or front access, depending on the need.
Standard floor mounting system provided gratis.
Maximum dependability & safety.
developed specifically to meet the needs of the customer.

Options accessible:

Louvre windows
Steel made of stainless steel
forged iron
steel that has been galvanized
Several color options based on the client's specifications.

                                                            Material
                                                            manufactured from 1.5/2mm Electro-Galvanised Steel Sheet.

                                                            Finish
                                                            Standard RAL-7035.

                                                            Manufactured
                                                            Form 2, Form 3 & Form 4 Type 1-7.

                                                            Degree of protection
                                                            IP 5x – IP65.
