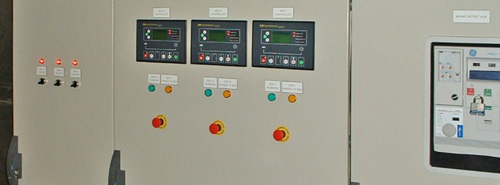

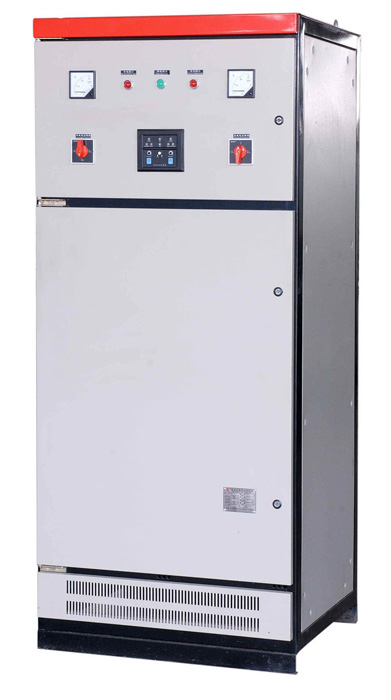

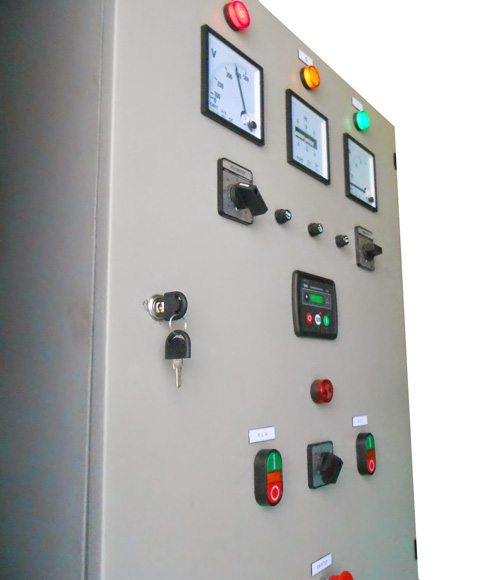

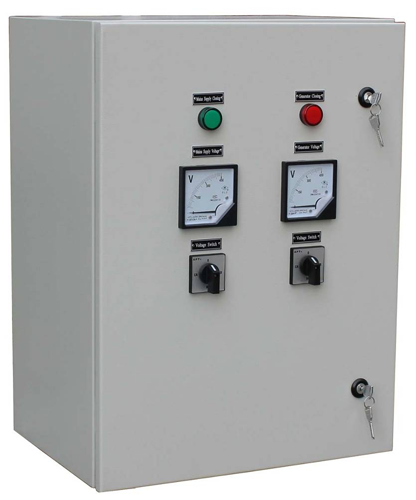

Automatic Mains Failure Panels

(0 reviews)

Get Price

(385) Views

(0) Contacts

Contact Company

ERCON GROUP

Riyadh, Saudi Arabia

(1674) Views

(15) Contacts

In the event of a major loss of mains power or complete blackout, automatic mains failure (AMF) panels, also known as automatic transfer switch (ATS) panels, initiate a power transition to emergency standby generators. In the absence of AMF panels, generators must be run manually, which increases the risk of data loss, possible damage to electrical equipment, and severe interruption.
When the building's main power supply fails, the AMF board and ATS panels automatically transfer the building's load from the mains to the producing set while also monitoring the incoming AC mains supply. Following an appropriate cooling cycle, the ATS panel manages a return to the mains supply and turns off the generator.
Modern electronic control systems facilitate several tasks, such as full mains synchronization in situations requiring a no-break switchover. The system is fully autonomous thanks to LED indication lamps, which show the status of load switching and supply availability throughout.
The panel changeover device satisfies IEC/BSEN 60947-6-1 criteria and offers mechanical and electrical interlocking. Power supply is managed using these panels in a variety of businesses, including hospitals and processing facilities. We modified these panels (in both automatic and manual modes) per the clients' request to satisfy their unique needs.
Options accessible:

Steel made of stainless steel
steel that has been galvanized
Multiple color options based on client specifications.

                                                            Material
                                                            Manufactured from 1.5/2mm Electro-Galvanized Steel Sheet.

                                                            Finish
                                                            Standard RAL-7035.

                                                            Degree of protection
                                                            IP 5x – IP65.

Automatic Mains Failure Panels Key Characteristics:

Contactors, MCCBs, or ACBs that are mechanically or electrically interlocked.
Outfitted with a manual override mechanism
Relay or PLC operation options are available, as are optional features like auto start, auto changeover, no break changeover, etc.

Automatic Mains Failure Panels features

Interior, bottom-entrance cable entry.
Mini-Processor Self-regulation and safeguarding
readable high-light LED display
Simple installation and modular design.
Provide complete mains and generator alarm signals for failures, shutdowns, and status updates.
Direct control of program parameters via the front panel non-volatile random-access memory with auto-save (NVRAM)
Graphic interface for LEDs that is universal.
Optional remote connection features via Ethernet, RS485 and USB.
relay managed by a microprocessor
modes of operation: auto and manual.
Type-tested assemblies in accordance with IEC 61439-2.
Maximum rated working voltage of 690V.
Fit for both external and inside installation (weatherproof with canopy).
sufficient distance between cables going in and coming out.
panels for rear or front access, depending on the need.
Maximum dependability & safety.
developed specifically to meet the needs of the customer.
