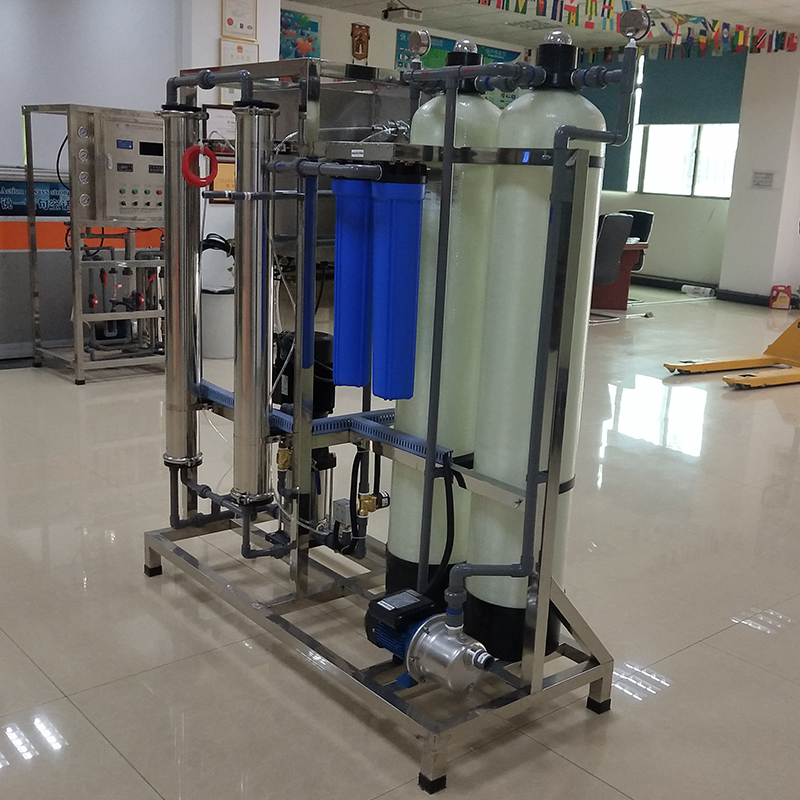

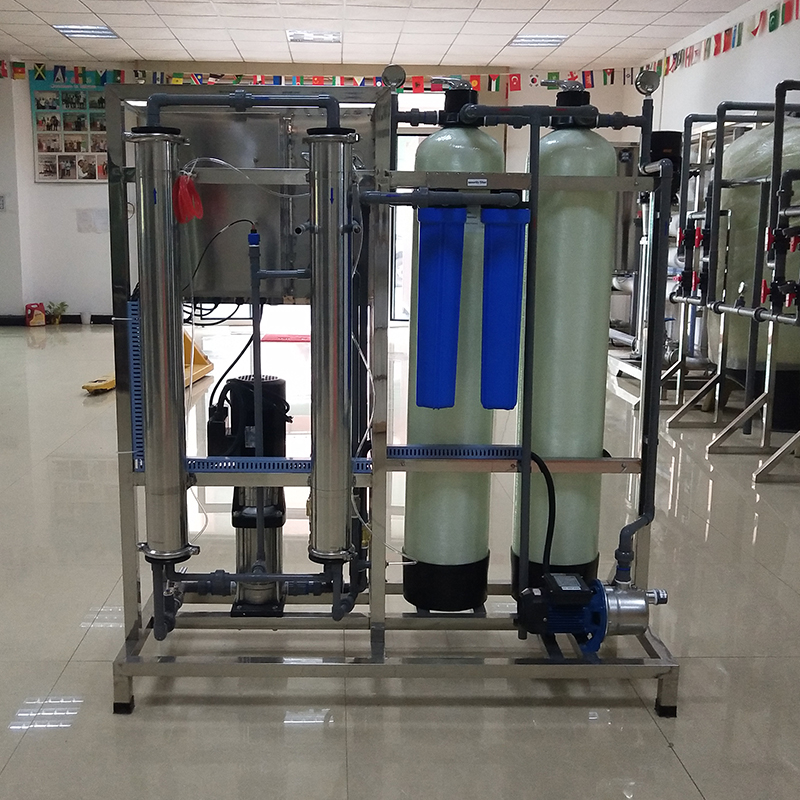

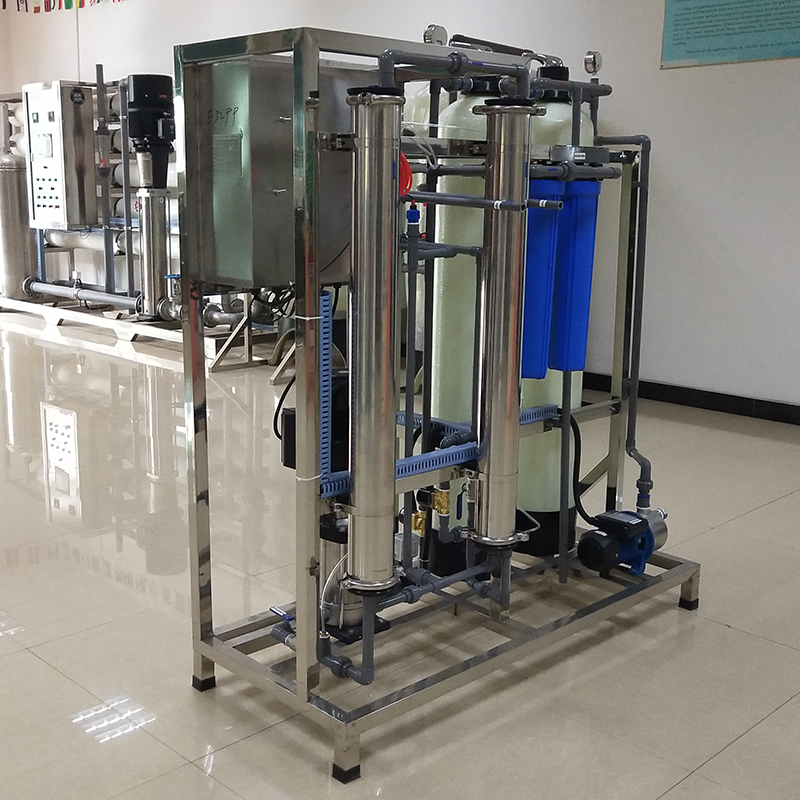

Ultra-pure water ion exchanger equipment with reverse osmosis system

(0 reviews)

2000 USD

(270) Views

(0) Contacts

CE approved ultra-pure water ion exchanger equipment with a reverse osmosis system

1 - 9 units >=10 units

$2,000.00 $1,500.00

Contact Company

Guangzhou Kaiyuan Water Treatment Equipment Co., Ltd.

Guangdong, China

(2109) Views

(17) Contacts

EDI(ELECTRODEIONIZATION) base one merging ED and ion exchanger , an economical way to produce high purity water continuously -no batch regeneration, no hazardous chemicals.
With the advanced technology ,easy operation, and environmental advantage, it is represent the direction of this field.
EDI equipment includes booster pump , edi module ,dc regulated power supply,flow meter and instrument, purify water is forced into EDI system by boost pumps, mixed ion exchange resin will continuously remove the impurities from the water by ion exchange.
Meanwhile , the electroly to stream flows past the anode and cathode in series, the applied current also drives a water splitting reaction which produces hydronium ions and hydroxyl ions.
These ions continuously regenerate the ion exchange resin so that it will continue to remove impurities from the feed water.
Then re-displaced cation and anion from the feed water water will permeate into concentrate chamber by some times reverse osmosis.
As a result, a portion of concentrated is recycled back to keep the conductivity.

                                                            Usage:
                                                            Pure water process

                                                            Productivity:
                                                            500L/Hour

                                                            Weight (KG):
                                                            350 kg

                                                            RO membrane:
                                                            Imported brand USA DOW

                                                            Factory:
                                                            OEM;ODM

                                                            Type:
                                                            Reverse Osmosis

                                                            Pipeline fittings:
                                                            SUS304/ U-PVC

                                                            Electrical power:
                                                            AC220V 18A / 380V 9A 50HZ

                                                            Recovery rate:
                                                            50%-75%

                                                            salt rejection:
                                                            97%

                                                            Multistage pump:
                                                            Avaliable

                                                            Warranty:
                                                            1 year for free, 1 Year

                                                            Warranty of core components:
                                                            1 Year
