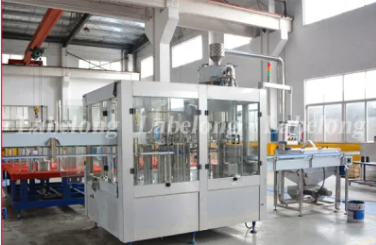

Automatic Bottle Mineral Water Filling Machine Plant

(0 reviews)

Get Price

(179) Views

(0) Contacts

US $10,000-20,000 / Set |1 Set (Min. Order)

Contact Company

Suzhou Labelong Packaging Machinery Co., Ltd.

Jiangsu, China

(1449) Views

(12) Contacts

General Descriptions
This machine works harmoniously with an air-conveyor belt; it holds the bottles by the neck when transporting
This machine is used to fill water into pet bottles and with screw caps capping function.
Integrated three functions:
1. Rinse the empty pet bottle,
2. fill the rinsed bottles,
3. capping the filled bottles

Rinser Station
Neck Control with plastic snap on the gripper.
Water distributor combined with Food Grade Rubber plate & SUS304 cover.
SUS304 water collecting tray
The spraying injects design, can completely wash the bottles.
Washed water recycling system, for water saving !! (Washed bottle---drip in water tank--water pump---raw water tank)

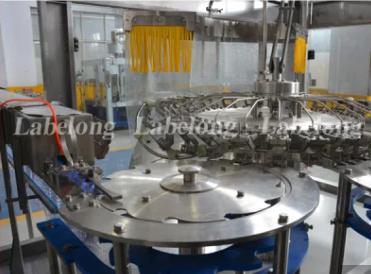

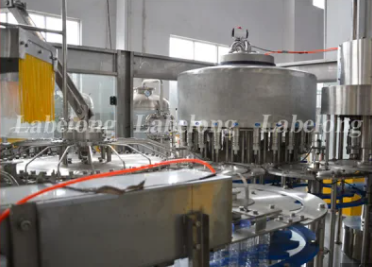

Filler Station
The entire filler is an isobar filling system.
High accurate SUS304L construction filling nozzle, make sure high accurate filling level
SUS304L liquid bowl, & pipeline system.
No bottles, no filling
Annulus Liquid bowl, with automatic water level controller

Capper station
Place & capping system. Automatic caps arranging, feeding.
Electromagnetic capping heads, with burden discharge function,
All 304stainless steel construction
No bottle no caps delivery.
Automatic stop when lack of bottle.

                                                            Origin
                                                            Jiangsu

                                                            Type
                                                            Volumetric Filling Machine

                                                            Material Type
                                                            Liquid

                                                            Structure
                                                            Rotary

                                                            Filling Material
                                                            Mineral Water

                                                            Trademark
                                                            Labelong
