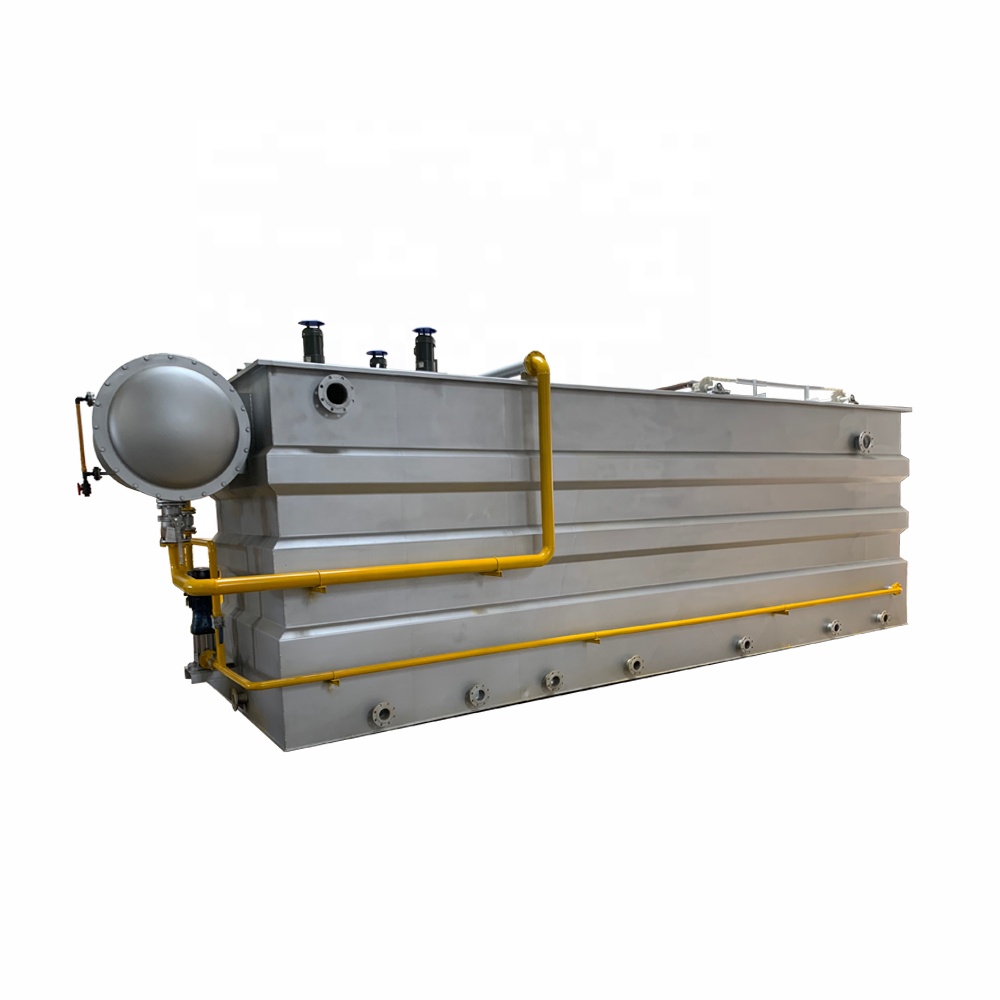

Dissolved Air Flotation Machine(DAF)

(0 reviews)

(287) Views

(0) Contacts

Dissolved air flotation machines use micro-bubbles to remove more than 90% of the suspended solids from wastewater. Utilized for protein recovery and sludge reduction in the food, paper, and dairy industries.

Contact Company

Wuxi Zhaolie Environmental Protection Technology Co., Ltd

Jiangsu, China

(709) Views

(3) Contacts

Principles of Work
Dissolution of Air:
Supersaturated solution is produced by pressurizing water with air in the dissolved air tank. This water then enters the release system.
Formation of Bubbles:
When pressure decreases, bubbles of 20–40 μm form. These bubbles cling to raise them to the top.
Elimination of Scum:
Scum is forced into sludge hoppers by surface scrapers, and clean water is released through overflow weirs.

Data Sheet

Type	Size(mm)	Capacity(m³/h)	Power(kw)	Unit Weight(kg)	Operating Weight(kg)
ZLDAF-5	300010002000	5	2.75	2500	8500
ZLDAF-10	400010002000	10	4.65	2900	14300
ZLDAF-15	400020002000	15	4.65	3700	19700
ZLDAF-20	500020002000	20	4.65	4500	26500
ZLDAF-25	600020002000	25	6.05	5100	31500
ZLDAF-30	600025002250	30	6.05	5900	38300
ZLDAF-35	600025002500	35	6.5	6300	41300
ZLDAF-40	600030002500	40	7.5	7500	51180

Dissolved Air Flotation Machine applications field
DAF is a well-established and efficient physical-chemical technology that is frequently employed in numerous municipal and industrial settings, such as

Reusing and recovering products
Pretreatment to adhere to limits for sewer discharge
Pretreatment to lessen the strain on biological systems downstream
Eliminating silt and grease from industrial water and polishing biological treatment effluent

DAF is widely utilized in the following sectors:
1. Processing of meat, poultry, and fish
wastewater treatment from slaughterhouses, wastewater from seafood processing, and water used to clean meat products.
Function: Lower COD/BOD and remove organic suspended solids like blood, oil, and minced meat. Reusable fat and protein are recycled (for example, to make animal feed).
2. The dairy sector
Wastewater from the production of cheese and yogurt, wastewater from the processing of milk, and water treatment for equipment cleaning. It can prevent oil blockage in pipelines or aeration equipment, lower the pressure of ensuing biochemical treatment, and separate high-load organic materials like milk fat and milk protein.
3. Paper and pulp
Used to treat waste paper de-ink wastewater, pulp wastewater, and white water reuse.
Function: Enhance white water recycling efficiency by eliminating fibers, colloids, fillers (like calcium carbonate), etc. Shorten the time it takes for sludge to settle and increase treatment effectiveness.
4. Food and drink
Uses include cleaning wastewater from fruits and vegetables, brewing wastewater, and processing wastewater for seasoning (vinegar, soy sauce). To stop sewage from smelling, remove organic materials that are easily fermented, such as fruit residue, starch, and carbohydrates. Recycling of recyclable solids (plant fibers, yeast, etc.)
