Bar Screen Machine

(0 reviews)

(264) Views

(0) Contacts

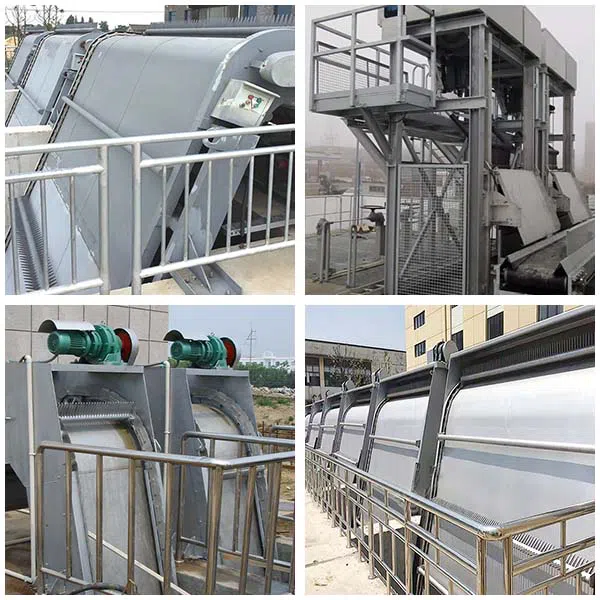

LK-GS bar screen machine is installed at sewage treatment plants, to remove bigger solids, such as rags, papers, plastic, and metals to prevent damage and clogging of downstream equipment, pipes, and appurtenances.

Contact Company

Henan Eco Environmental Protection Equipment Co., Ltd

Henan, China

(2439) Views

(8) Contacts

Product Features
Product Reviews

Features
a) Driving Unit
1. The drive unit features low noise, high efficiency, and good sealing. The service life of the reducer should be over 10 years.
2. Shaft-mounted reducer for transmission, a screw-type adjusting device is arranged on both sides of the frame to balance the tension of the transmission chain.
3. The reducer bearings are well-lubricated and with a service life of over 100,000 hours. The gear service factor of the reducer is≥ 1.5
4. Low alloy steel and carburized gear, tooth surface hardness are no less than HRC58.
5. Working voltage is 380V, 3 phase, 50Hz, the protection grade is IP65, the rated power of the motor is 10% larger than the maximum power consumption, and the motor speed is not exceeded 1500r/min.

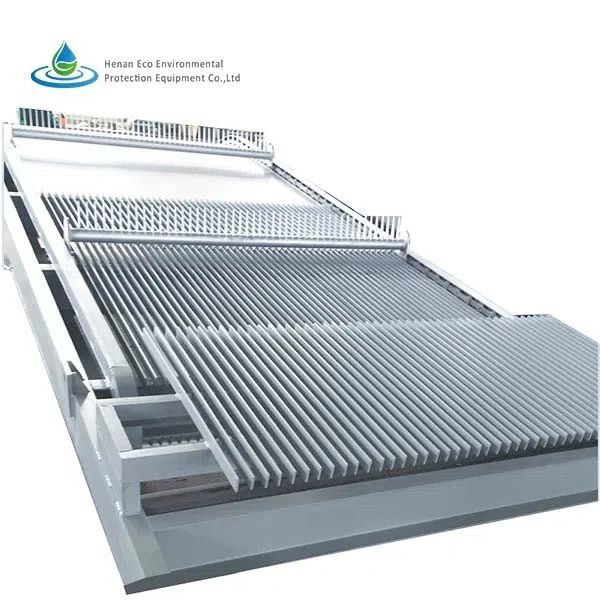

b) Rack
1. One-piece rigid structure made of SUS 304 and structural steel, with sufficient strength and rigidity. No distortion occurs under the condition of a 1.0m water level difference.
2. The rubber seals on both sides of the rack are used to prevent the rubbish from passing the gap between the rack and the tank wall
c) Traction chain and sprocket
The underwater guide rollers are reliable to prevent the entanglement of dirt, such as grid slag.
d) Cleaning bar
1. 304 SUS material, the tooth-shaped structure meets smooth unloading, and returning bar after unloading does not adhere to dirt.
2. The rubber cleaning scraper is arranged for cleaning after discharging gums, and the driving of the cleaning scraper is driven by the main driving device.
e) Cover
Equip with a closed stainless steel cover, which is openable, and convenient for daily maintenance and management
