Description

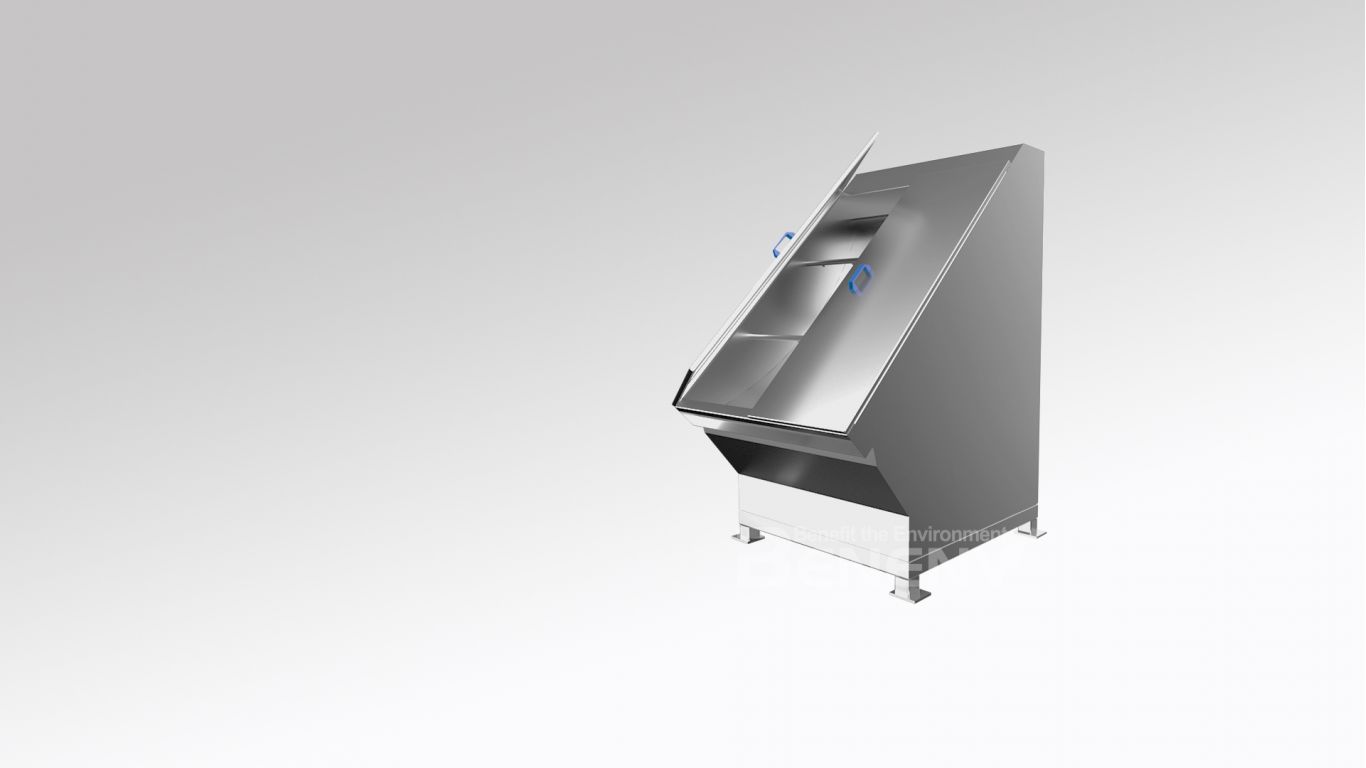

Hydraulic static screens are also known as oblique screens, curved screens, slit screens, and hydraulic grids. A hydraulic static screen can effectively reduce the concentration of suspended solids in the water and reduce the treatment load of subsequent processes. At the same time, it is also used in industrial production for solid-liquid separation and recovery of useful substances and is an excellent non-powered equipment for filtering or recovering solid or colloidal substances such as suspended solids, floating matter, and sediments.
Working Process

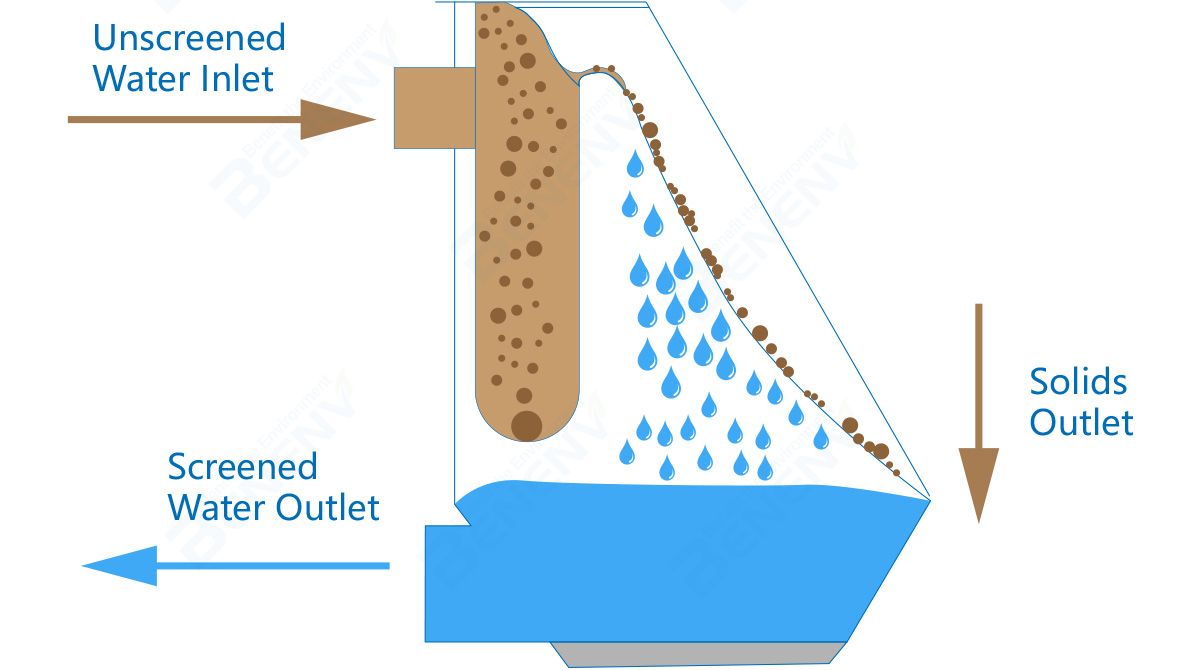

The main body of the hydraulic static screen is a stainless steel curved or flat filter screen surface made of precision by the wedge-shaped steel rod, and the wastewater to be treated is evenly distributed to the inclined sieve surface through the overflow weir, because the gap on the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, and it is not easy to block; The solid material is intercepted, the filtered water flows out of the gap in the sieve plate, and at the same time, under the action of hydraulic force, the solid material is pushed to the lower end of the sieve plate for discharge, so as to achieve the purpose of solid-liquid separation.

Suitable for solid-liquid separation and recovery in industrial production.
Suitable for pre-treatment of sludge or river dredging.
Used in papermaking, slaughtering, leather, sugar, winemaking, food processing, textile, printing and dyeing, petrochemical, and other small industrial wastewater treatment, to remove suspended solids, floating matter, sediment, and other solid substances.

Advantages
