Non Slam Nozzle Check Valves

(0 reviews)

Get Price

(136) Views

(0) Contacts

Contact Company

Sierra Engineering & Manufacturing

Cairo, Egypt

(1075) Views

(13) Contacts

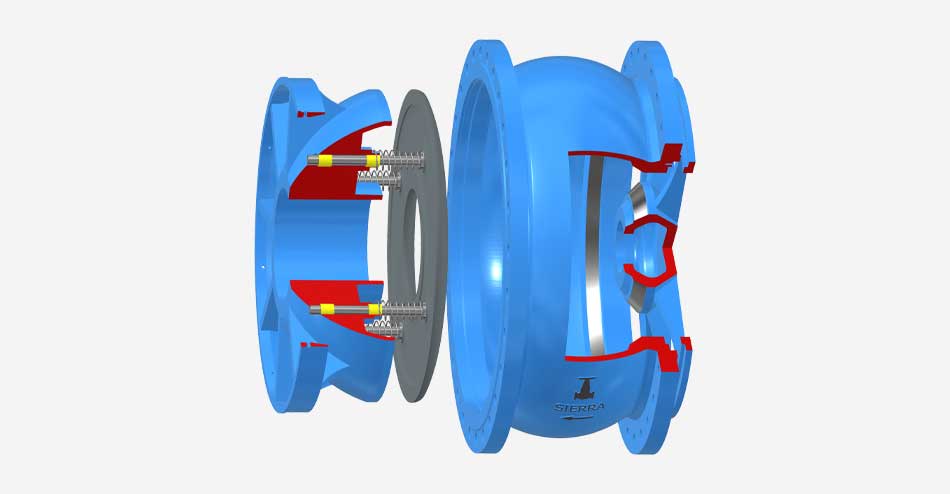

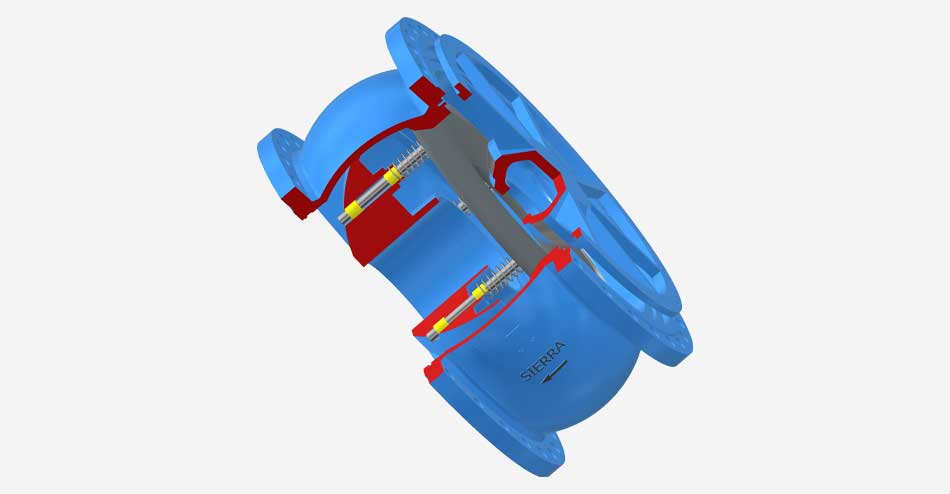

The nozzle check valve is one of the faster closing check valves that reduce slam and water hammer due to its short linear stroke. The nozzle check valve design also reduces head loss during operation. Hence is one of the most economical valves.

                                                            Product Range
                                                            DN65 – DN1200

                                                            Pressure Rating
                                                            PN10, PN16, PN25

                                                            Temperature Range
                                                            -20°C TO +70°C

                                                            Face to Face Dimensions
                                                            ISO5752, EN558-1, Series 14

                                                            Certificates
                                                            Manufactured under a certified ISO 9001 quality system

                                                            Flange Dimensions
                                                            EN1092-2 (DIN2501)

                                                            Hydrostatic Testing
                                                            EN12266, ISO5208

                                                            Type Testing
                                                            EN1074-3
