Swing Flex Check Valves

(0 reviews)

Get Price

(173) Views

(0) Contacts

Contact Company

Sierra Engineering & Manufacturing

Cairo, Egypt

(1077) Views

(13) Contacts

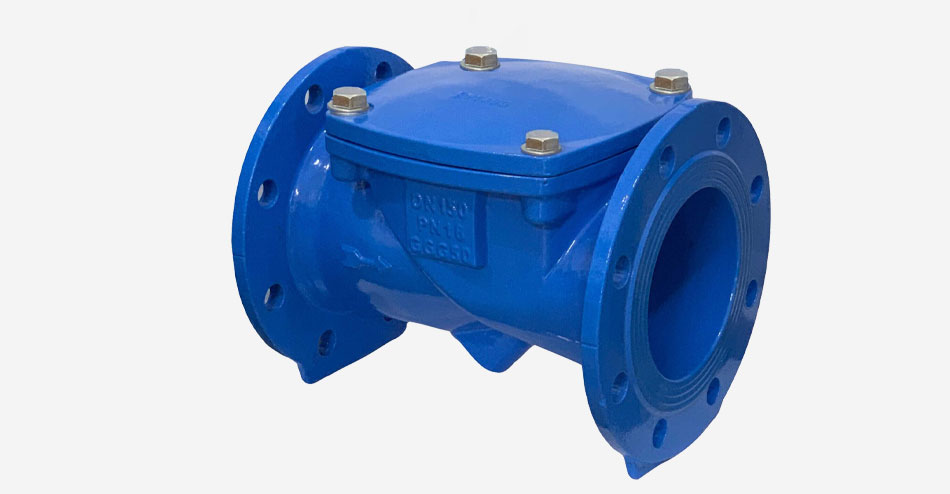

SERIES 5600 is a double flanged rubber flapper (swing flex) check valve type suitable for sewage, wastewater, raw water, and slurry applications. The valve has a full flow body type, the valve has an elastomeric flexible disc type and the disc is the only moving part that shall assure long life with minimal maintenance. The valve shall have no packing, shafts, arms, mechanical hinges, pivot pins, or bearings to wear out

                                                            Diameter
                                                            DN65 – DN 1000

                                                            Pressure Rating
                                                            PN10 – 16

                                                            Face to Face Dimensions
                                                            Up to DN600 ACC. TO ISO5752 DN700-1000 ACC. TO DIN3232

                                                            Temperature Range
                                                            -20o to +70o

                                                            Flange Dimensions
                                                            EN1092-2 (DIN2501)

                                                            Hydrostatic Testing
                                                            EN12266, ISO5208

                                                            Accessories
                                                            Hydraulic damper

                                                            Type Testing
                                                            EN1074 – 3

                                                            Certificate
                                                            Manufactured under a certified ISO 9001 quality system

Clean and dirty water, sewage, sludge, and slurries.

Main Product Features

Non-clog design, unrestricted flow area combined with smooth streamlined contouring allows passage of large solids and minimizes the potential for clogging.
One piece fully encapsulated disc to provide years of trouble-free performance.
One moving part, the memory-flex disc is the only moving part, assuring long life with minimal maintenance.
No packing, mechanical hinges, pivot pins or bearings to wear out.
Drop tight seating, the synthetic reinforced disc, with its integral O-ring type seal design assures positive seating at high and low pressures.
Non-slam closure “short disc stroke” combined with memory-flex™ disc action reduces potentially destructive water hammer.
Backflow actuator, for use, when manual backflow operation is required. most used for priming pumps, back flushing, draining lines and system testing.
Flex action, the resiliency of disc ensures non slam closing.
