DESCRIPTION
STARFLO Stainless Steel Check Valves Highly Corrosion Resistant with PTFE Seals by Duda Energy Check valves are used to help direct flow in one direction. The stainless steel bodies and PTFE seals are highly corrosion resistant allowing these check valves to be used with a wide variety of fluids including, but not limited to water, oil, gas, air, light alkalis, acids, biodiesel, fuels, and alcohols. Swing check valves are for horizontal use only. When fluid pushes on the stopper in the correct direction, it will "swing" open to allow flow. If flow moves in the opposite direction, it will swing shut. The check valve cannot be used in vertical applications as gravity may affect the function of the swinging motion. Note: Check valves do not create a 100% seal against backflow like a ball valve would. If prevention of backflow is desired, two check valves should be used in series with each other. Any fluid which finds its way past the first check valve is unlikely to have enough pressure to pass through the 2nd. Both check valves are 2-piece and serviceable. They may be opened by unthreading at one of the port ends.
These ball valves are fitted with tight seals to ensure no leakage and a long-lasting seal after many years of frequent usage. Available in both WOG200 and WOG1000. WOG200 is considered ideal for most general applications. WOG1000 is for high-pressure and industrial applications where durability and lifetime longevity of the valve are preferred.

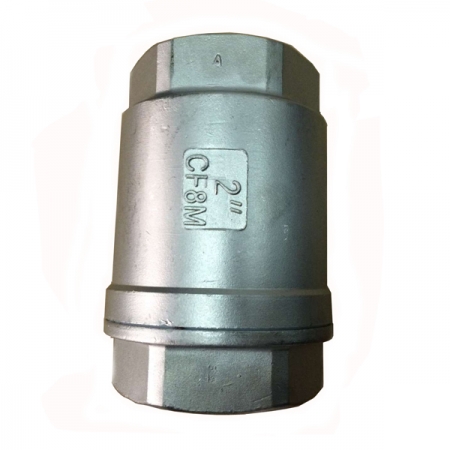

Stainless Steel Check Valves

Check valves are used to help direct flow in one direction. The stainless steel bodies and PTFE seals are highly corrosion resistant allowing these check valves to be used with a wide variety of fluids including, but not limited to water, oil, gas, air, light alkalis, acids, biodiesel, fuels, and alcohols. Swing check valves are for horizontal use only. When fluid pushes on the stopper in the correct direction, it will "swing" open to allow flow. If flow moves in the opposite direction, it will swing shut. The check valve cannot be used in vertical applications as gravity may affect the function of the swinging motion. Vertical check valves may be used for any application. They utilize a spring system that shuts the Disc closed when there is not enough pressure to hold it open by the operating fluid. Fluid pressure in the backward direction will cause the valve to close to prevent backflow.

Note:

Check valves do not create a 100% seal against backflow like a ball valve would. If prevention of backflow is desired, two check valves should be used in series with each other. Any fluid which finds its way past the first check valve is unlikely to have enough pressure to pass through the 2nd. Both check valves are 2-piece and serviceable. They may be opened by unthreading at one of the port ends.

                                                            Brand
                                                            STARFLO

                                                            Product Origin
                                                            Fujian,China(Mainland)

                                                            Item NO.
                                                            SF-002

                                                            Type
                                                            WOG200	    WOG1000

                                                            Port Types
                                                            Female NPT x Female NPT

                                                            Fluid Media
                                                            Water,Oil,Biodiesel,Air & Other Fluids

                                                            Max Working Temperature
                                                            -29°C to 210°C (-20°F to 410°F)

                                                            Gas Tightness Test Pressure
                                                            0.4~0.7 Mpa (58~100 psi)

                                                            Tightness Test Pressure
                                                            1.6 Mpa (232 psi)   7.6 Mpa (1100 psi)

                                                            Nominal Working Pressure
                                                            200PSI	1000PSI

                                                            Shell Test Pressure
                                                            2.1 Mpa (305 psi)   10.4 Mpa (1500 psi)

D: .6'', L: 2.4'' - See Drawing for Dimension References
Fluid Temp Range: -20°F to 302°F, Use for water, oil, air, gas, Light Acids/Alkali
Stainless Steel Spring-Loaded, Low Cracking Pressure (~5 Psi)
Serviceable Valve - Can be taken apart via threads, Female NPT Ports
Use to direct flow in one direction
For chemical and industrial applications.
High-quality investment casting body
Pressure temperature rating:1000WOG (pn63/(450 deg. F.
15% reinforced glass fiber Teflon seats.
Blow-out-proof stem SS316.
100% tested air- under water at 100 wogs (6 bar) open & close position.
