Technical Indexes

It is used for oxidation-reduction potential detection in medicine, Chlor-alkali chemical, dyes, pulp & paper-making, intermediates, chemical fertilizer, starch, environment protection, and electroplating industries.

What is ORP?

Oxidation Reduction Potential (ORP or Redox Potential) measures an aqueous system’s capacity to either release or accept electrons from chemical reactions. When a system tends to accept electrons, it is an oxidizing system. When it tends to release electrons, it is a reducing system. A system’s reduction potential may change upon the introduction of a new species or when the concentration of an existing species changes.

ORP values are used much like pH values to determine water quality. Just as pH values indicate a system’s relative state for receiving or donating hydrogen ions, ORP values characterize a system’s relative state for gaining or losing electrons. ORP values are affected by all oxidizing and reducing agents, not just acids and bases that influence pH measurement.

How is it used?

From a water treatment perspective, ORP measurements are often used to control disinfection with chlorine or chlorine dioxide in cooling towers, swimming pools, potable water supplies, and other water treatment applications. For example, studies have shown that the life span of bacteria in the water is strongly dependent on the ORP value. In wastewater, ORP measurement is used frequently to control treatment processes that employ biological treatment solutions for removing contaminants.

                                                            Model No
                                                            ORP8083

                                                            Measure parameter
                                                            ORP, Temperature

                                                            Temperature range
                                                            0-60℃

                                                            Features
                                                            The internal resistance is low, so there is less interference;                     The bulb part is platinum

                                                            Model No
                                                            ORP8083 ORP

                                                            Sensor Measuring range
                                                            ±2000mV

                                                            Temperature range
                                                            0-60℃

                                                            Compressive strength
                                                            0.6MPa

                                                            Material
                                                            PPS/PC

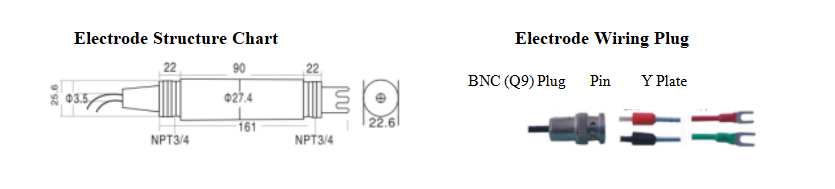

                                                            Installation Size
                                                            Upper and Lower 3/4NPT Pipe Thread

                                                            Connection
                                                            Low-noise cable goes out directly.
